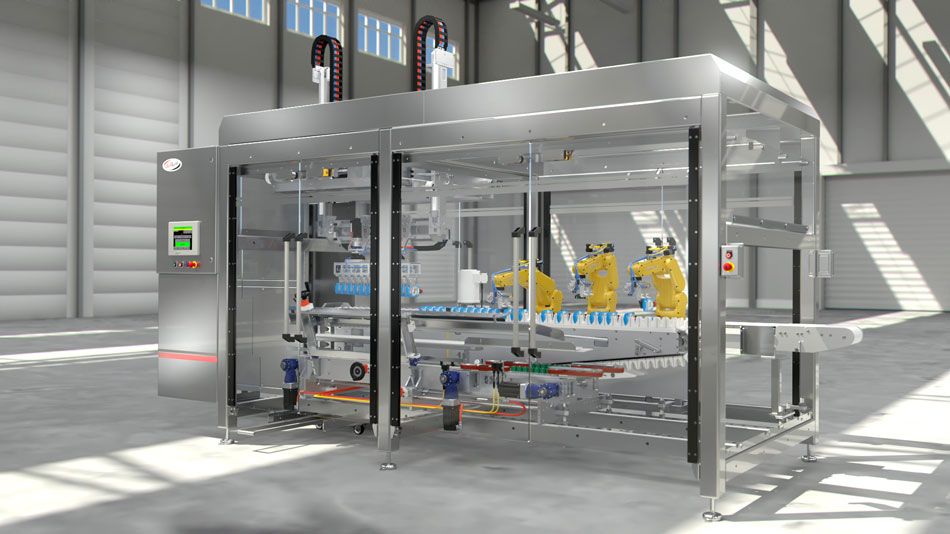

VC Series

Packer

High speed small pouch packer

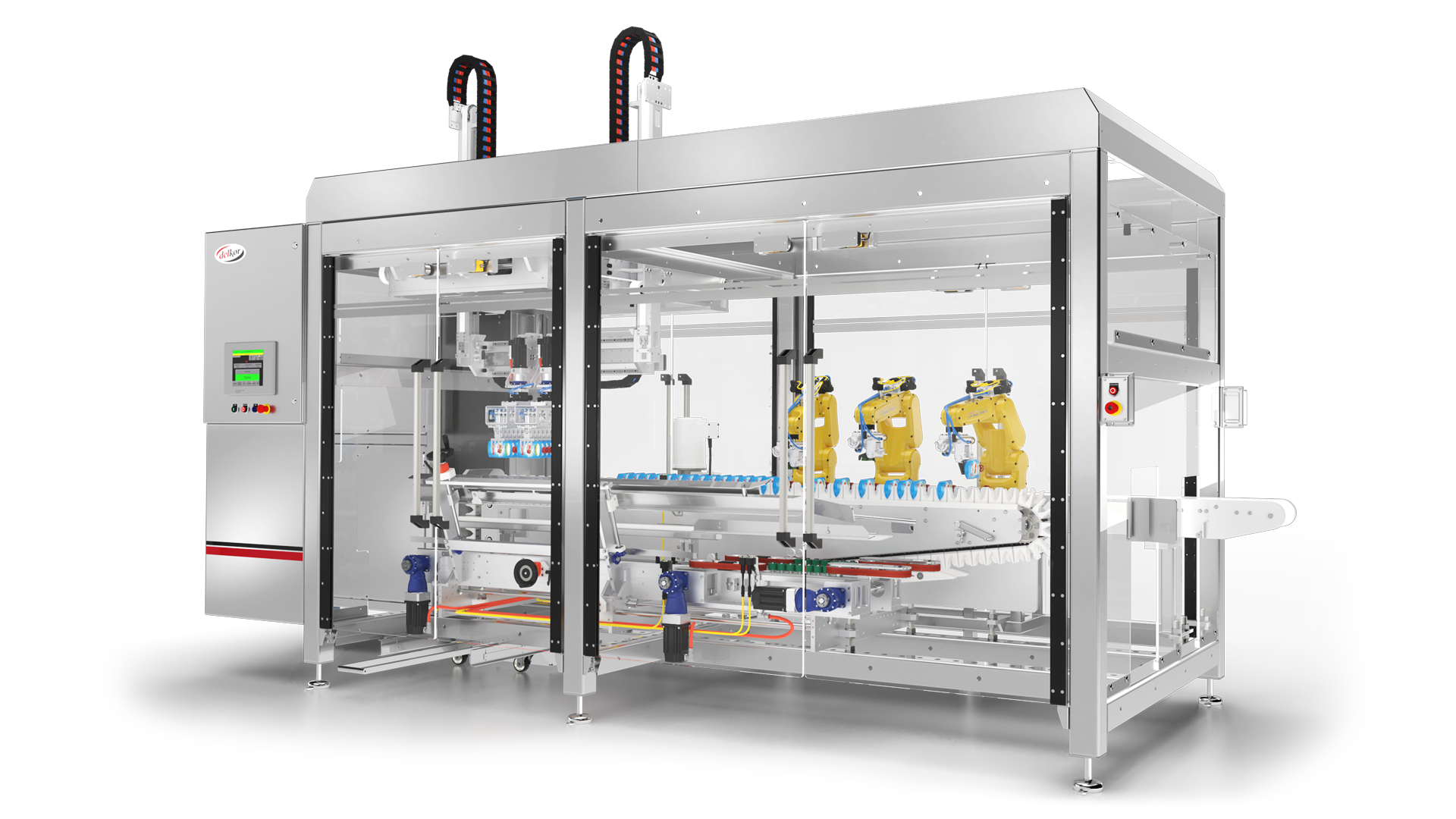

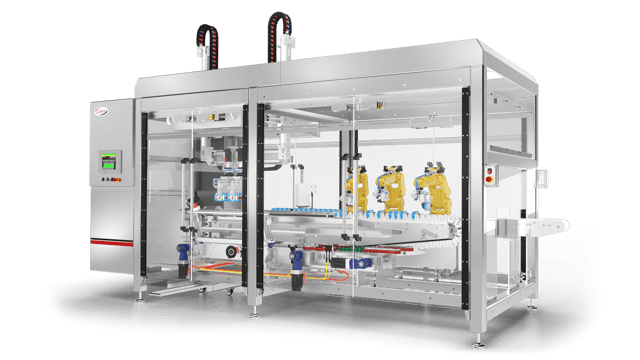

VC Series Packer 42
VC Series Packer 60

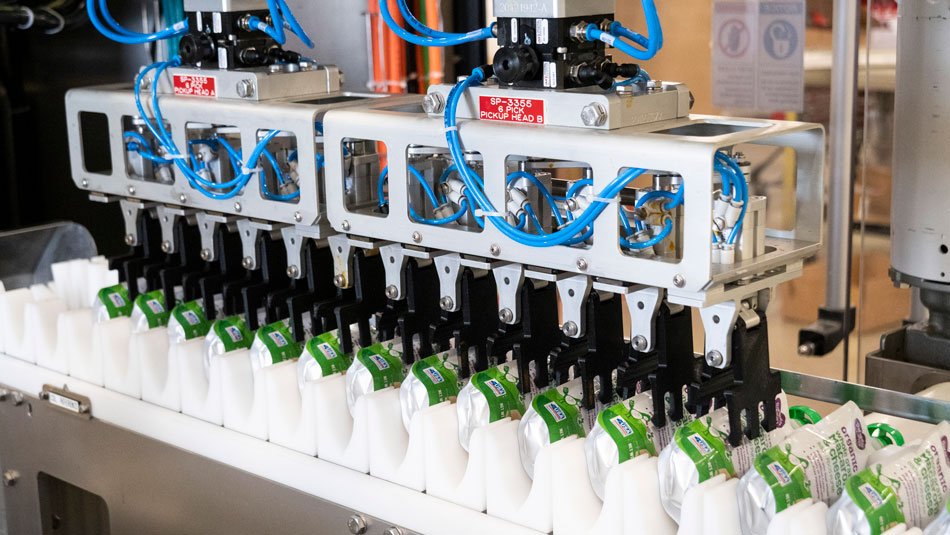

Continuous Motion Top Loading

Delkor’s linear-servo technology allows for efficient, continuous-motion top-loading of spouted pouches into cartons and cases.

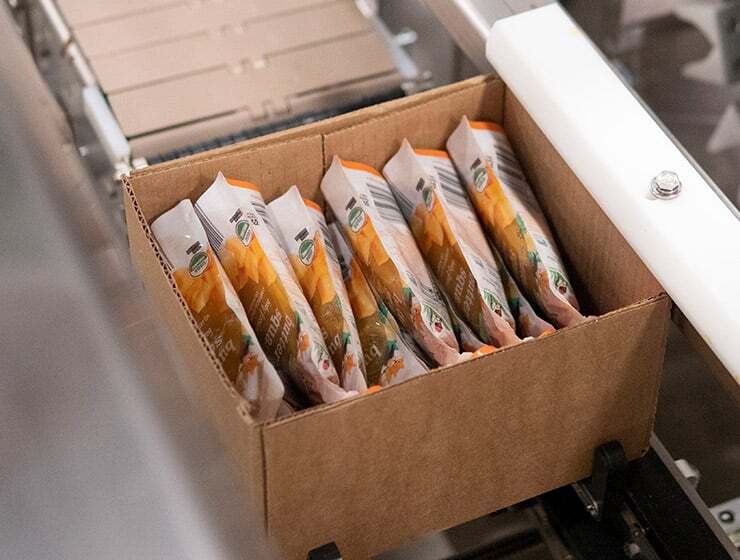

VC-Series-Packer-55

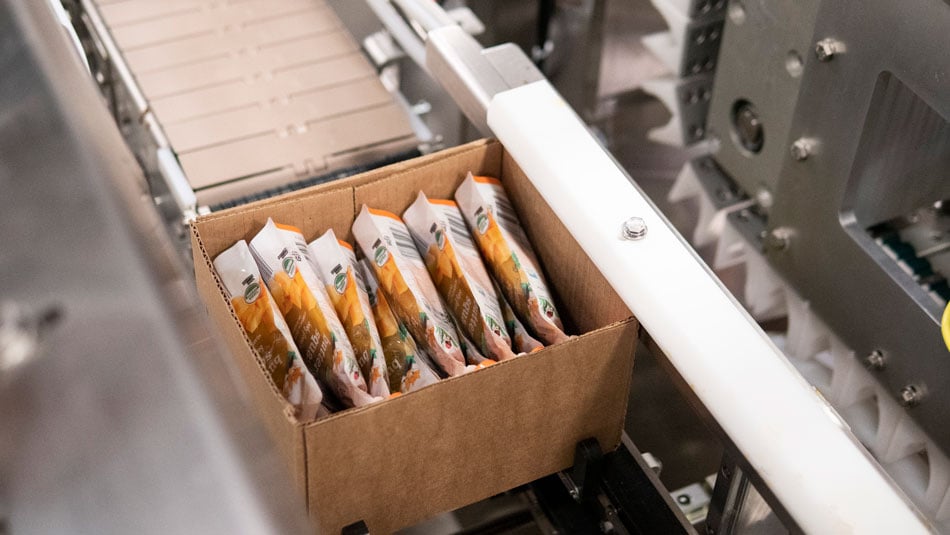

Pack On-Edge or Lay-Flat

The VC Series Packer has maximum versatility with its ability to be configured to pack spouted pouches on-edge or lay-flat pack-out with just a simple tool-less changeover.

VC Series Packer 54

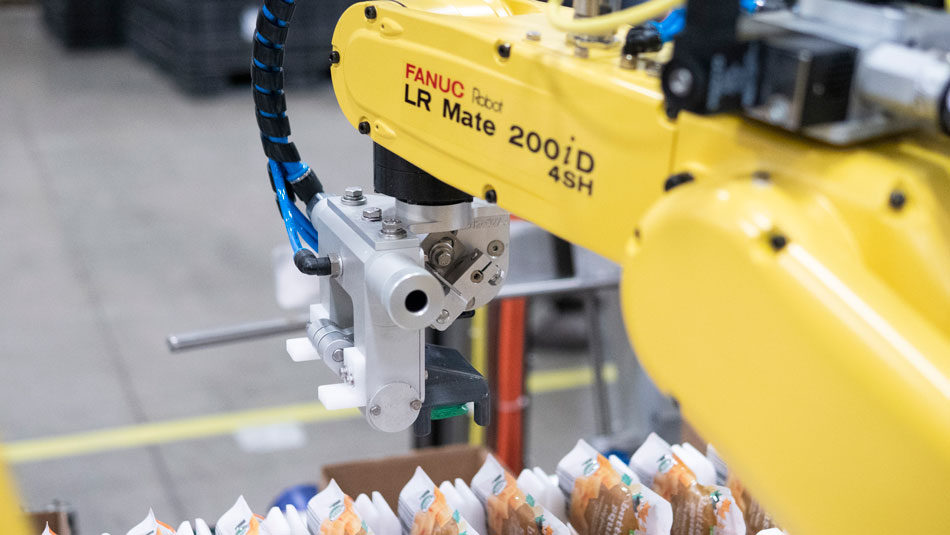

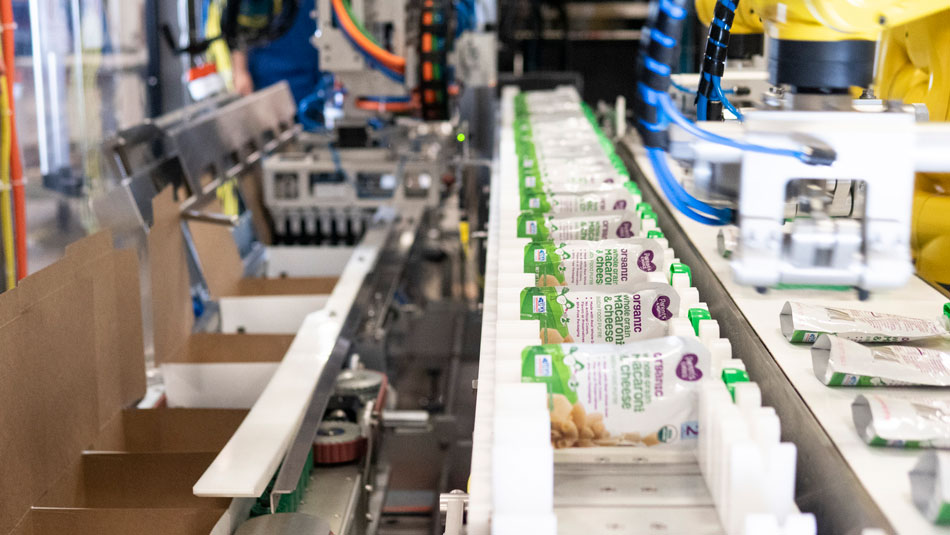

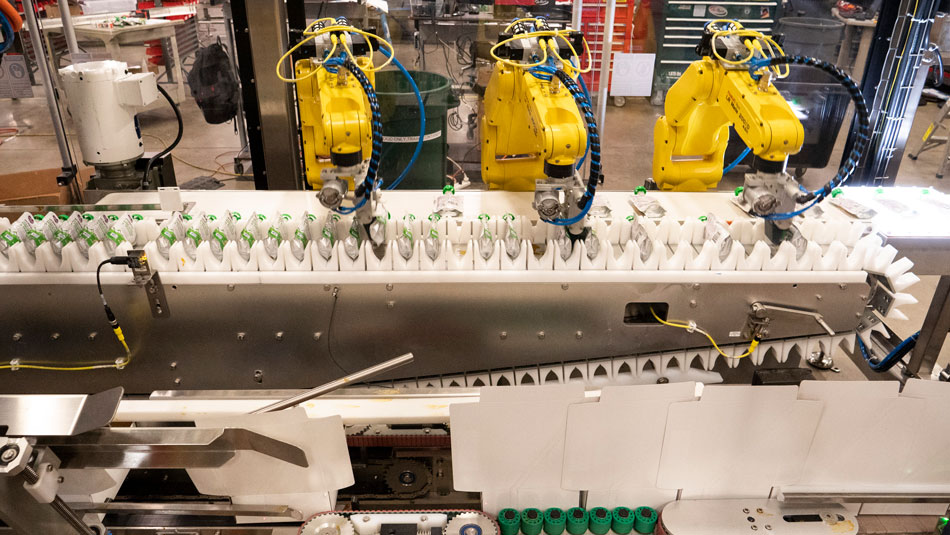

Pack in Any Infeed Orientation

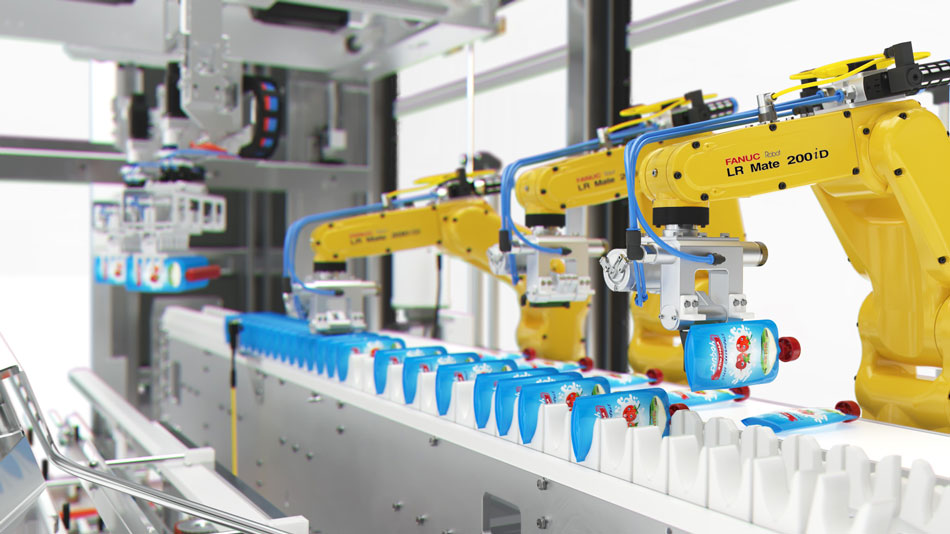

As a Level 5 FANUC Integrator, we’ve designed the VC Series Packer to be able to pack spouted pouches laying in different orientations on the infeed belt at efficient, high-speeds using FANUC iRVision technology.

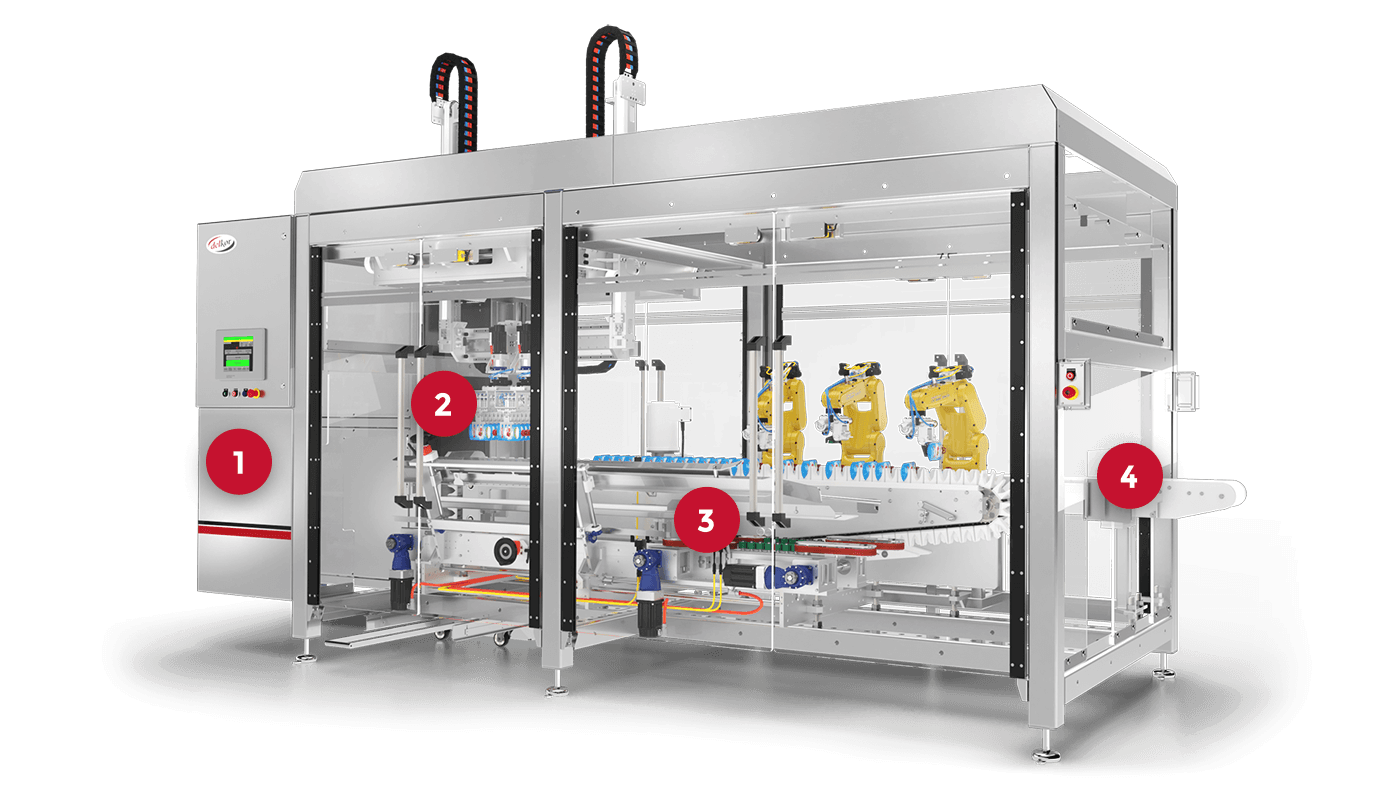

Key Features

High speed small pouch packer

VC-Series-Packer-46
1

High Speed

Up to 250 pouches per minute on this system
2

On Edge or Flat

Load product however you prefer
3

Multiple Package Formats

Load cartons, cases, and trays with this system
4

Any Orientation

Pack skewed products from any orientation with vision based technology

Specs

Changeover
5 mins
Package Styles
Cases, Trays, and Cartons
Max Product Rate
250 Products
Max Package Rate
30 Packages per minute
Discharge Orientation
Inline, Counterflow
Machine Hand
Right Hand, Left Hand
Frame Materials
Painted Carbon Steel, Stainless Steel
Robot Models
Fanuc LRMate
Servo-Motors
Allen-Bradley VPL or VPF (food grade)
System PLC
Allen-Bradley Compact Logix
System HMI
Allen-Bradley Panelview Plus 7 10"
Safety System
Category III
Enclosure - Main Panel
Painted (NEMA 4), Stainless Steel (NEMA 4X)
Enclosure - Panel Cooling
Vortex, Heat Exchanger, or Air-Conditioner
Enclosure - FANUC Cabinet
NEMA 1, optional Stainless Enclosure (NEMA 4X)
Enclosure - Camera
optional Stainless Steel (NEMA 4) with Air Blast
Model
Fanuc M10iA-10ms
Utilities - Power
480 VAC, 50-60Hz, 100 Amps
Utilities - Air
20 SCFM @ 80 PSIG
Status Glow
Bright Internal LED Status Lights
Additional Feature
Tool Less Changeover
Additional Feature
Reject Bin Option

See it in action

Delkor’s VC Series Packer is built for packing groups of pouches into cartons and cases at speeds up to 250 products per minute. Pack pouches on-edge or lay-flat pack-out with a simple tool-less changeover.

Delkor can work with you to design the case, and they have the capability to provide you samples of the case with graphics on. It’s like having a material company and a packaging systems company in one building.

Wilberto Torrez-Ortiz, Packbrain

Free package samples in 48 hours!

Our in-house CAD table and full-time packaging engineer enable us turn around printed case samples within 48 hours! These samples can be branded and tailored to meet the requirements of your marketing department and packaging engineers.

Similar Case Packing Equipment

Every project calls for something different - Delkor has the widest range of case packing equipment that can match any packaging need.

LSP_3-Cell

LSP Series Case Packer

Any Case and Tray Style, Quick Changeover

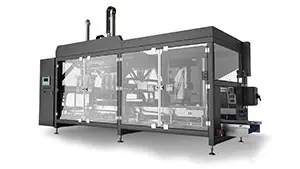

MSP Series Case Packer

MSP Series Case Packer

High Speed, Quick Changeover

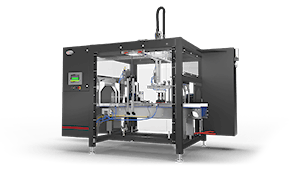

Performance Series Case Packer

Performance Series Case Packer

Contoured Infeed System For Wide Range Of Products

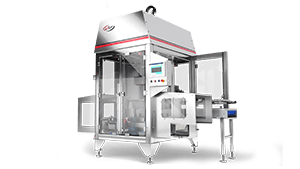

Flex Series Packer

Flex Series Packer

Flexibility To Pack Almost Any Product

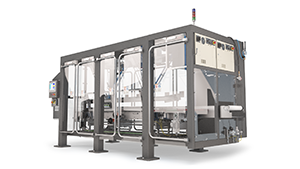

V Series Packer

V Series Packer

Vision Based Robotic Pick and Place Case Packer

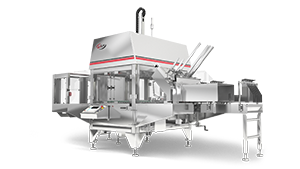

Flat Pad Tray-Shrink

Flat Pad Tray-Shrink

Wraps Product For Strength In Distribution

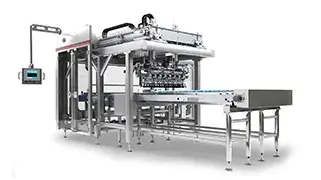

Filler Integrated Packer
