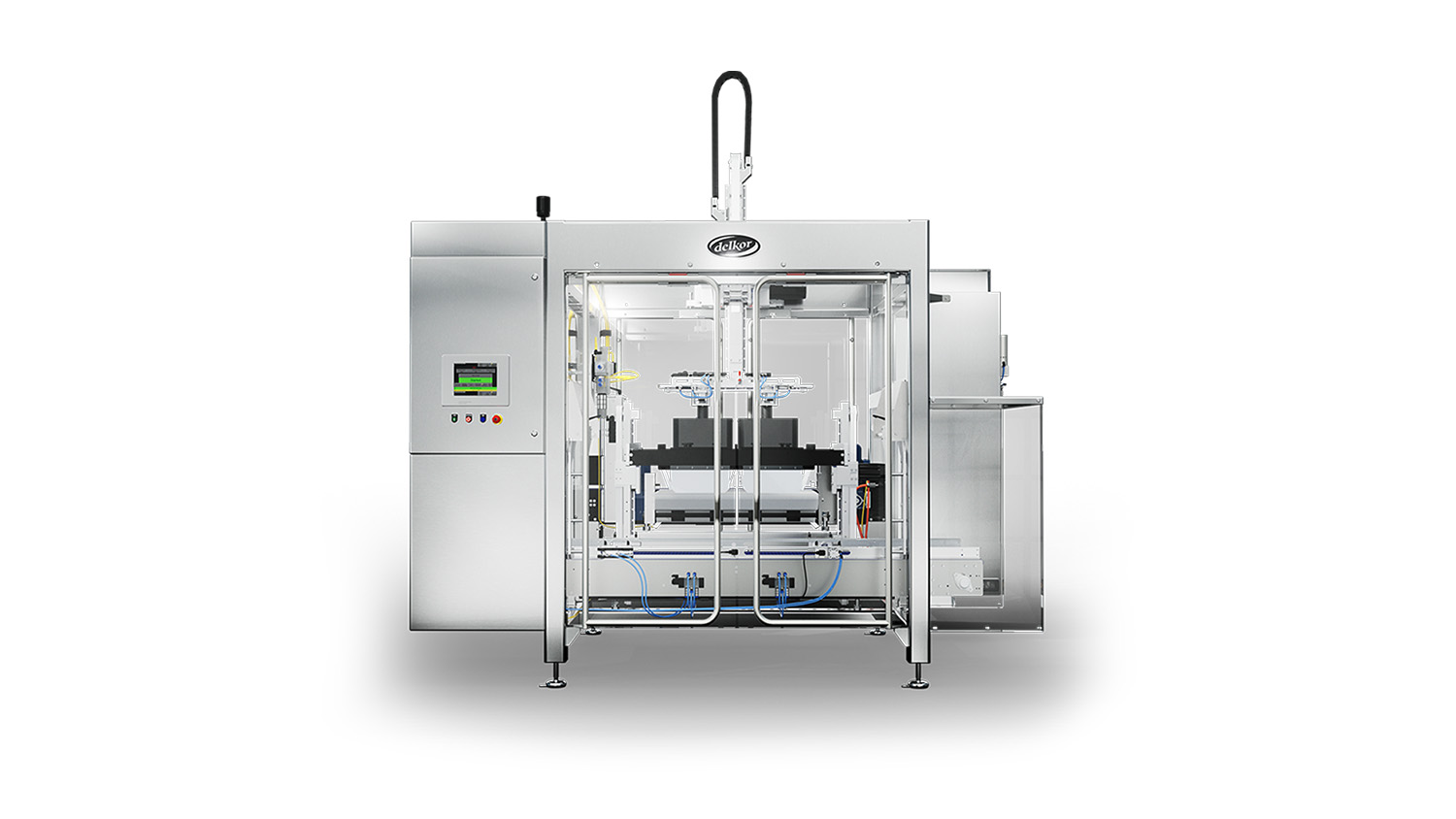

Performance Series

Case Packer

Contoured infeed system for a wide range of products.

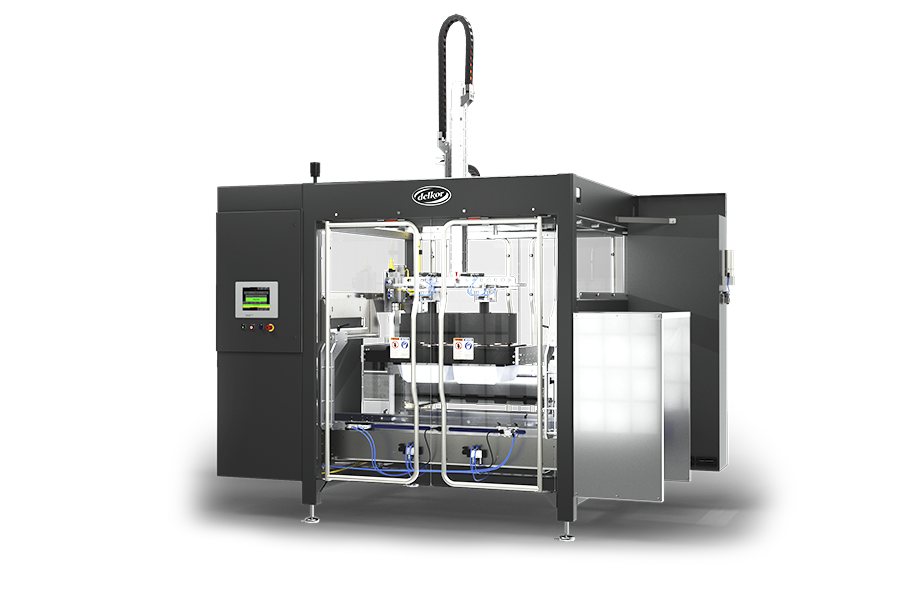

Compact Case Packer Header 8
Performance-Case-Packer-56

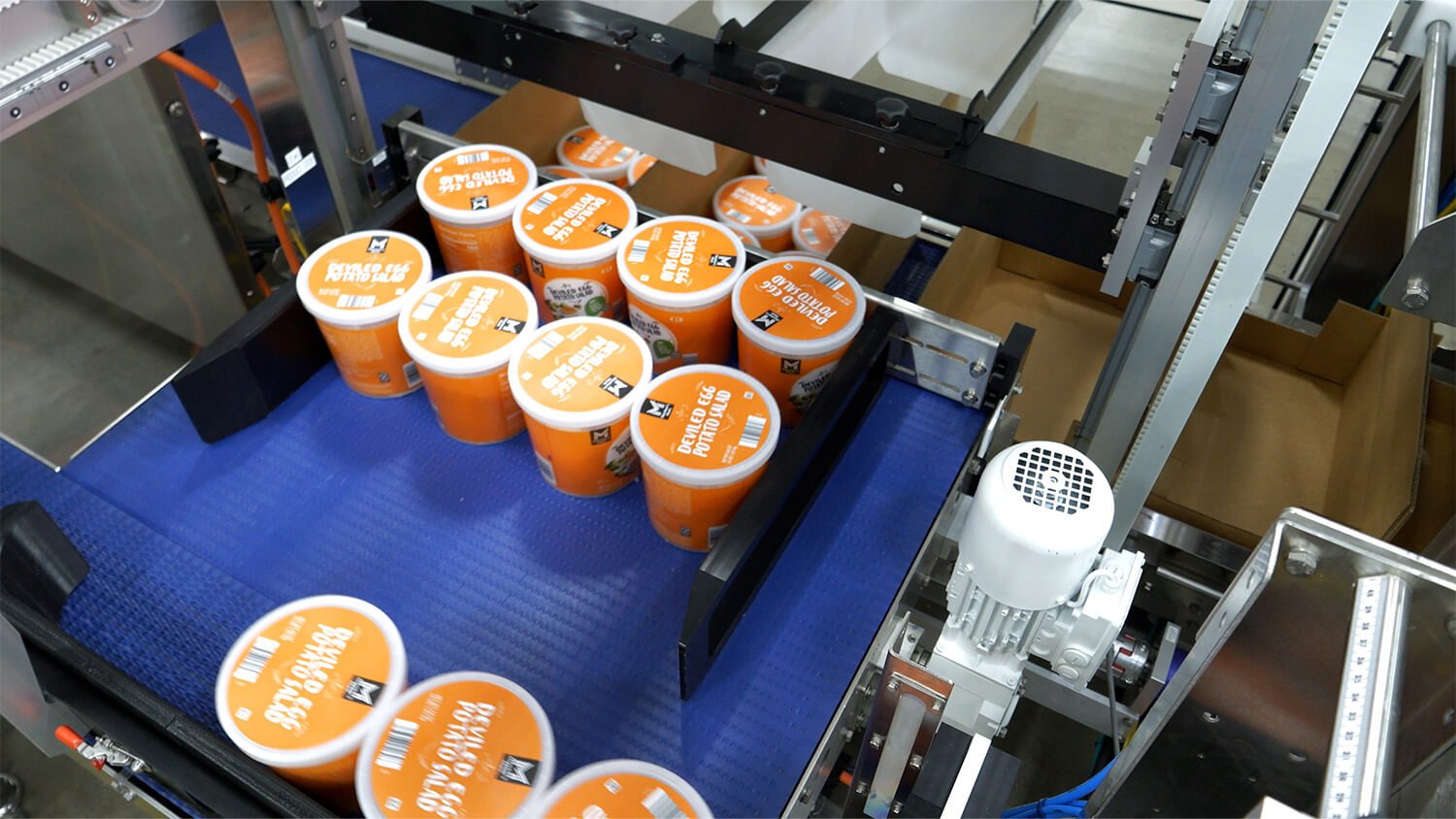

Intelligent Synchronization

Say goodbye to collation chains, buckets and fixed guides. Delkor’s patented Intelligent Synchronization enables the Performance Series Case Packer to pick and load pack patterns at high speeds with minimal change parts.

Performance Case Packer 54

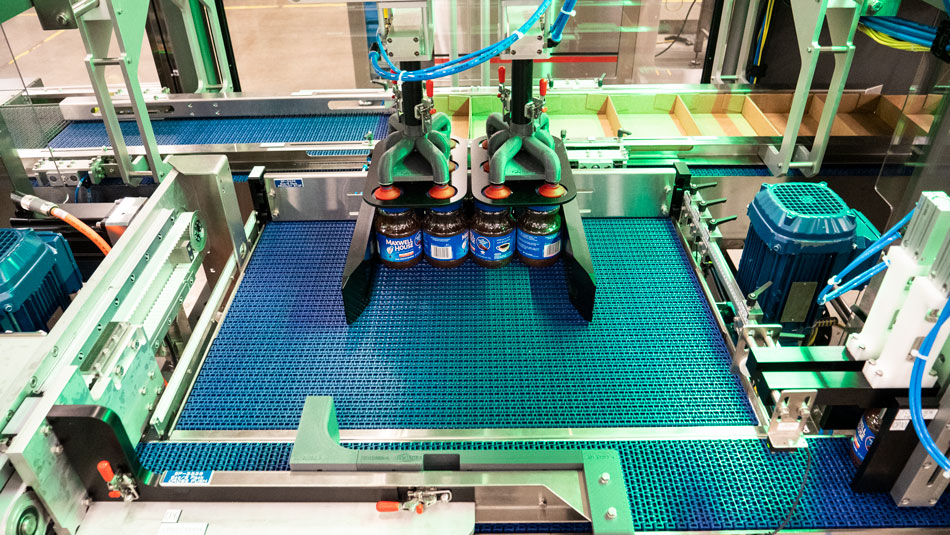

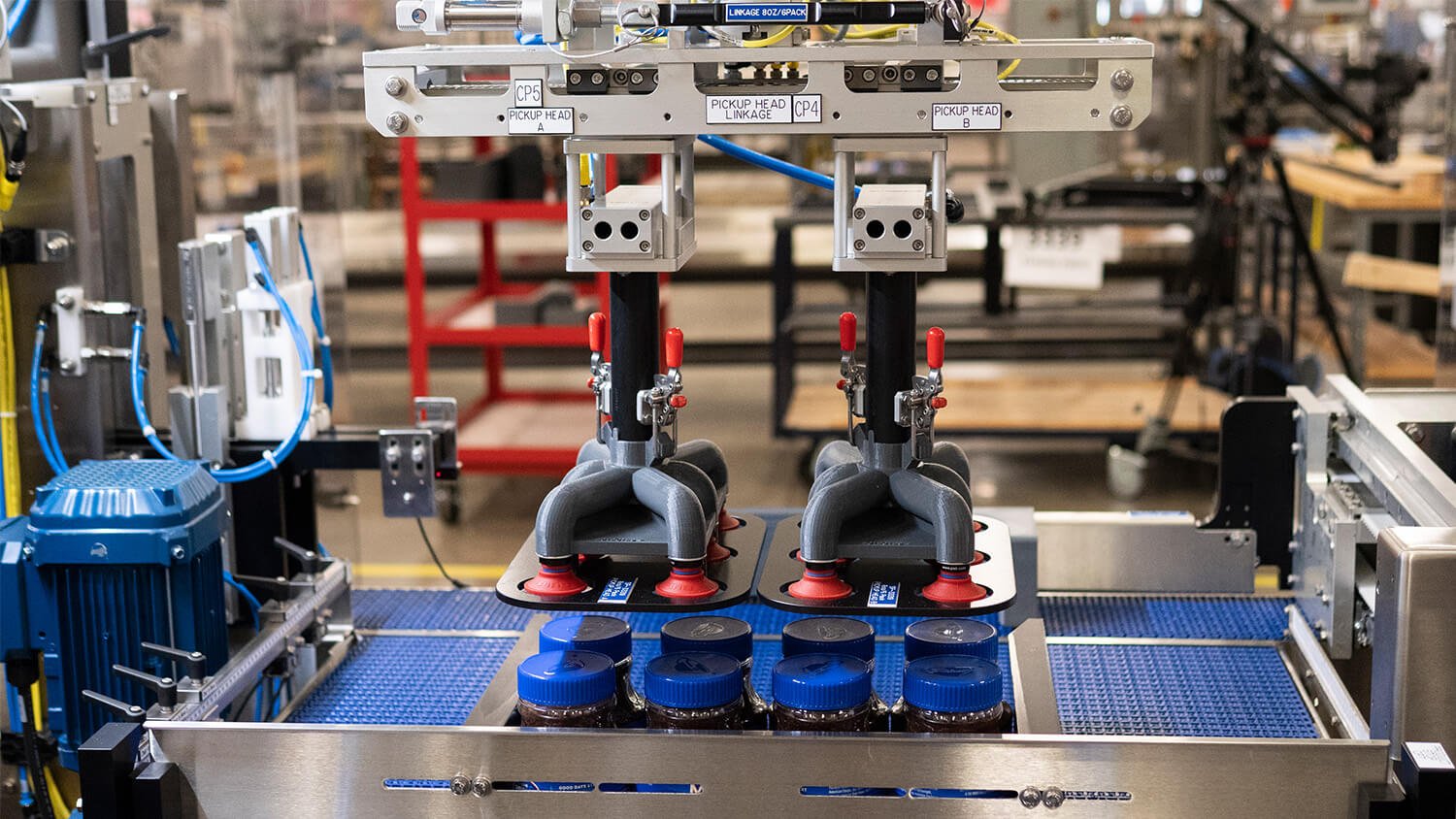

HIGH SPEED PICK & PLACE

The Performance Series Case Packer's pick and place gantry and innovative infeed system allow the case and tray packer to reach speeds up to 200 containers per minute.

Key Features

Contoured infeed system for a wide range of products

Performance-Case-Packer-45
1

Compact Design

Fits into nearly all floorplans.
2

High Speed Packing

Packs cases, cartons, and trays via speedy pick and place robotics
3

Package Ambiguity

Accepts wide variety of standard and unstable primary containers
4

Intelligent Synchronization

Eliminates collation chains, buckets and fixed guides; reduces change parts.

Specs

Package Types
Tray, Cases, Pads (Spot-Pak), RRP, Aldi
Max Rate
45 Packages per minute
Discharge Orientation
Inline, Counterflow, Right Hand, Left Hand
Machine Hand
Right Hand, Left Hand
Frame Materials
Painted Carbon Steel, Stainless Steel, Tubeless Stainless Steel
Servo-Motors
Allen-Bradley VPL or VPF (food grade)
System PLC
Allen-Bradley Compact Logix
System HMI
Allen-Bradley Panelview Plus 7 10"
Safety System
Category III
Enclosure - Main Panel
Painted (NEMA 4), Stainless Steel (NEMA 4X)
Enclosure - Panel Cooling
Vortex, Heat Exchanger, or Air-Conditioner
Adhesive System
Nordson, Graco, Robatech
Length
6ft, 2in (1,880 mm)
Width
6ft, 2in (1,880 mm)
Height
7ft, 6in (2,290 mm) - this is with gantry down
Utilities - Power
480 VAC, 50-60Hz, 60 Amps
Utilities - Air
20 SCFM @ 80 PSIG
Status Glow
Bright Internal LED Status Lights
Additional Feature
Platinum Line Machine (Modular Design)
Additional Feature
Tool-Less Changeover
Additional Feature
Patented Technology
Additional Feature
Machine Integration
Additional Feature
Reject Bin Option
Additional Feature
Crash Detection

See it in action

Delkor’s Performance Series Case Packer is a case and tray packer designed and engineered with key performance features in mind including pick-and-place gantry and an innovative infeed system to reach loading speeds up to 200 containers per minute. Optimized for packing tapered cups, bottles and a range of other container shapes and styles into a variety of retail ready packages, cases, trays, and other secondary packaging styles.

Delkor can work with you to design the case, and they have the capability to provide you samples of the case with graphics on. It’s like having a material company and a packaging systems company in one building.

Wilberto Torrez-Ortiz, Packbrain

Free package samples in 48 hours!

Our in-house CAD table and full-time packaging engineer enable us turn around printed case samples within 48 hours! These samples can be branded and tailored to meet the requirements of your marketing department and packaging engineers.

Similar Case Packing Equipment

Every project calls for something different - Delkor has the widest range of case packing equipment that can match any packaging need.

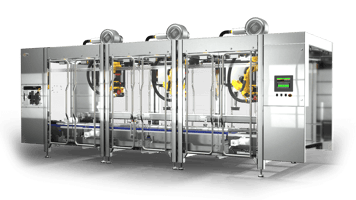

LSP_3-Cell

LSP Series Case Packer

Any Case and Tray Style, Quick Changeover

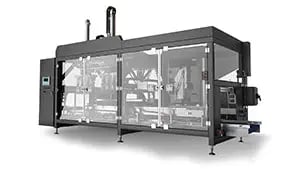

MSP Series Case Packer

MSP Series Case Packer

High Speed, Quick Changeover

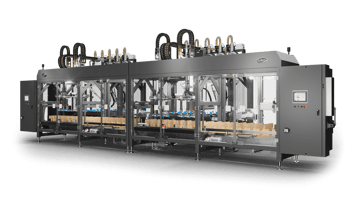

HSP Series Case Packer

HSP Series Case Packer

High Speed Small Pouch Packer

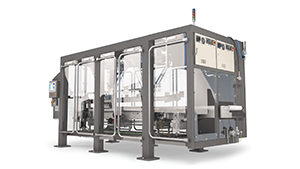

Packaging Equipment V Series Case Packer 6
