LSP Series

Case Packer

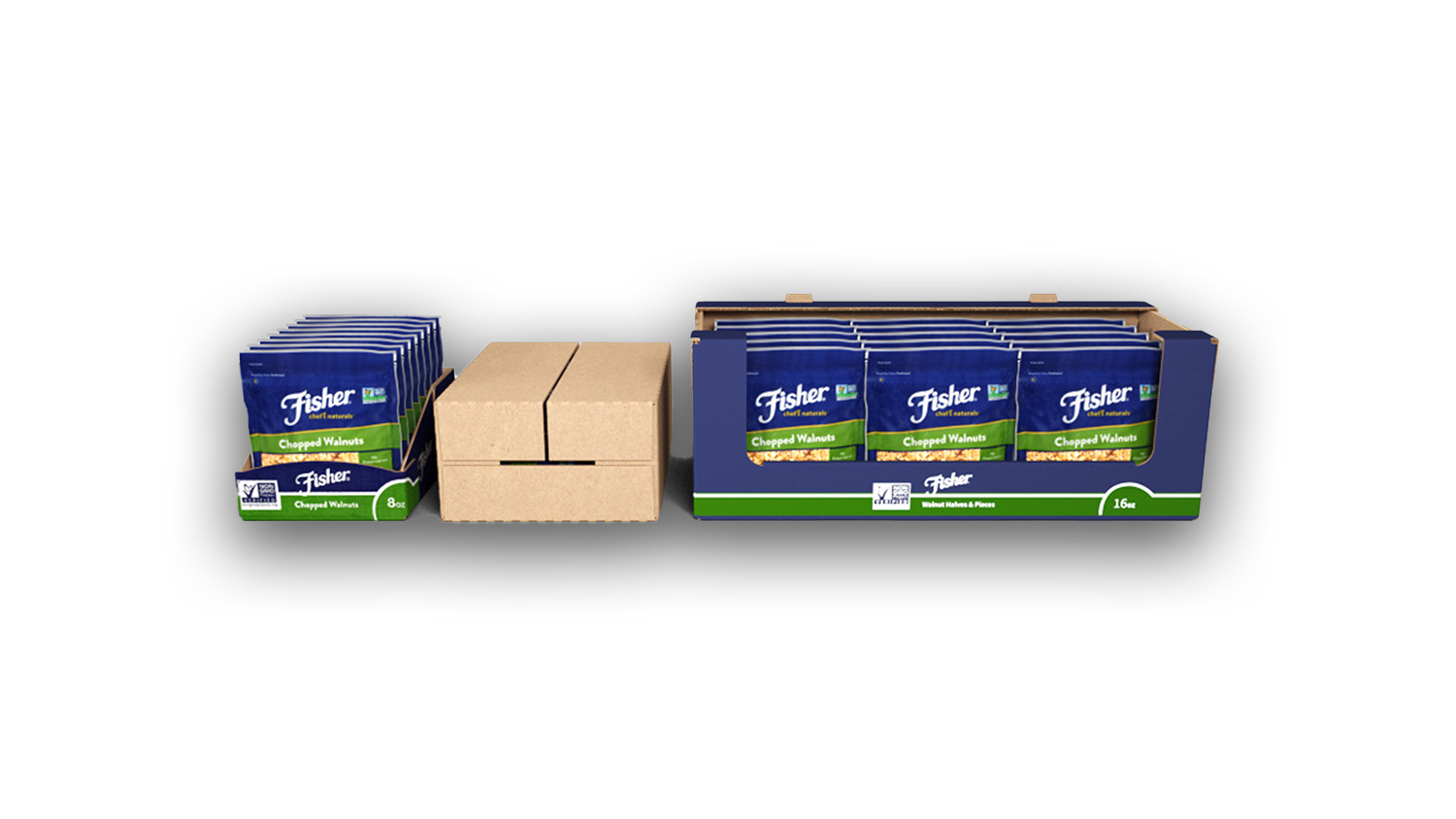

A Single Top Load Case Packer for ANY Shipper Style

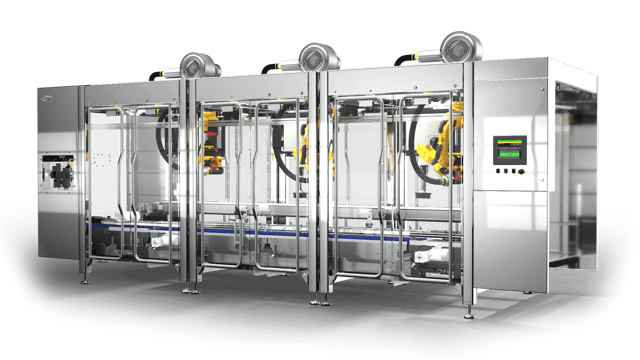

LSP_3-Cell

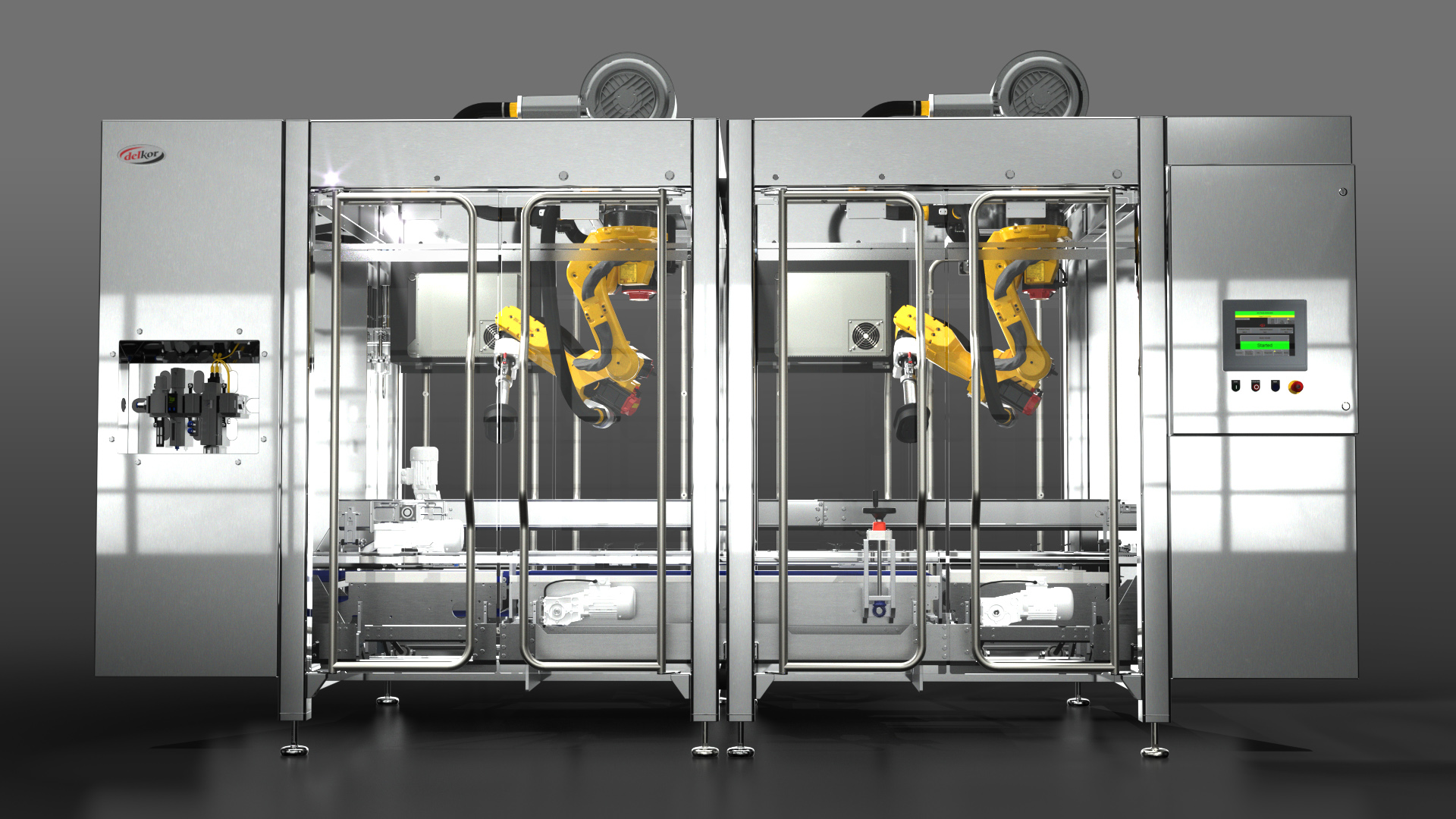

Case Packer LSP Series

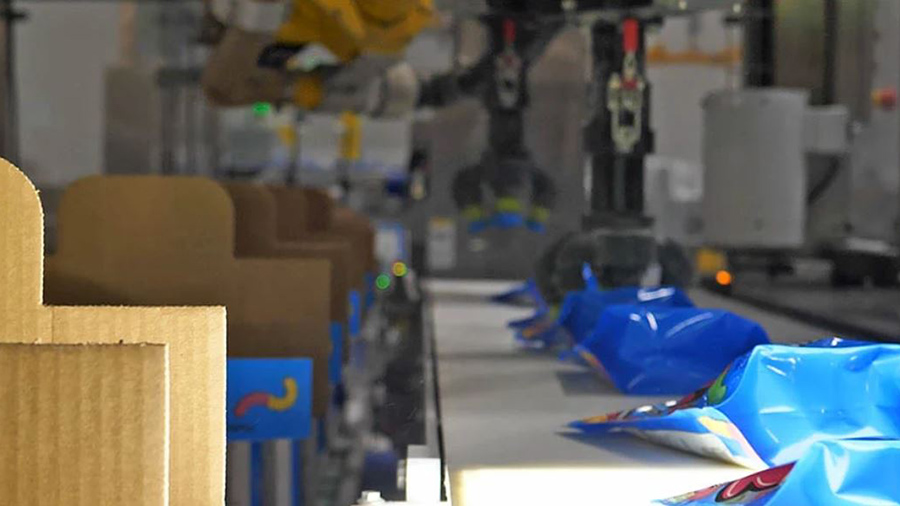

load large bags

The LSP Series Case Packer can pack pouches and large bags into deep cases at speeds up to 180 products per minute. This newly developed loader can place a variety of pouches into multiple types of cases seamlessly.

Key Features

What makes the LSP Series Case Packer Delkor's most popular solution for bags and pouches?

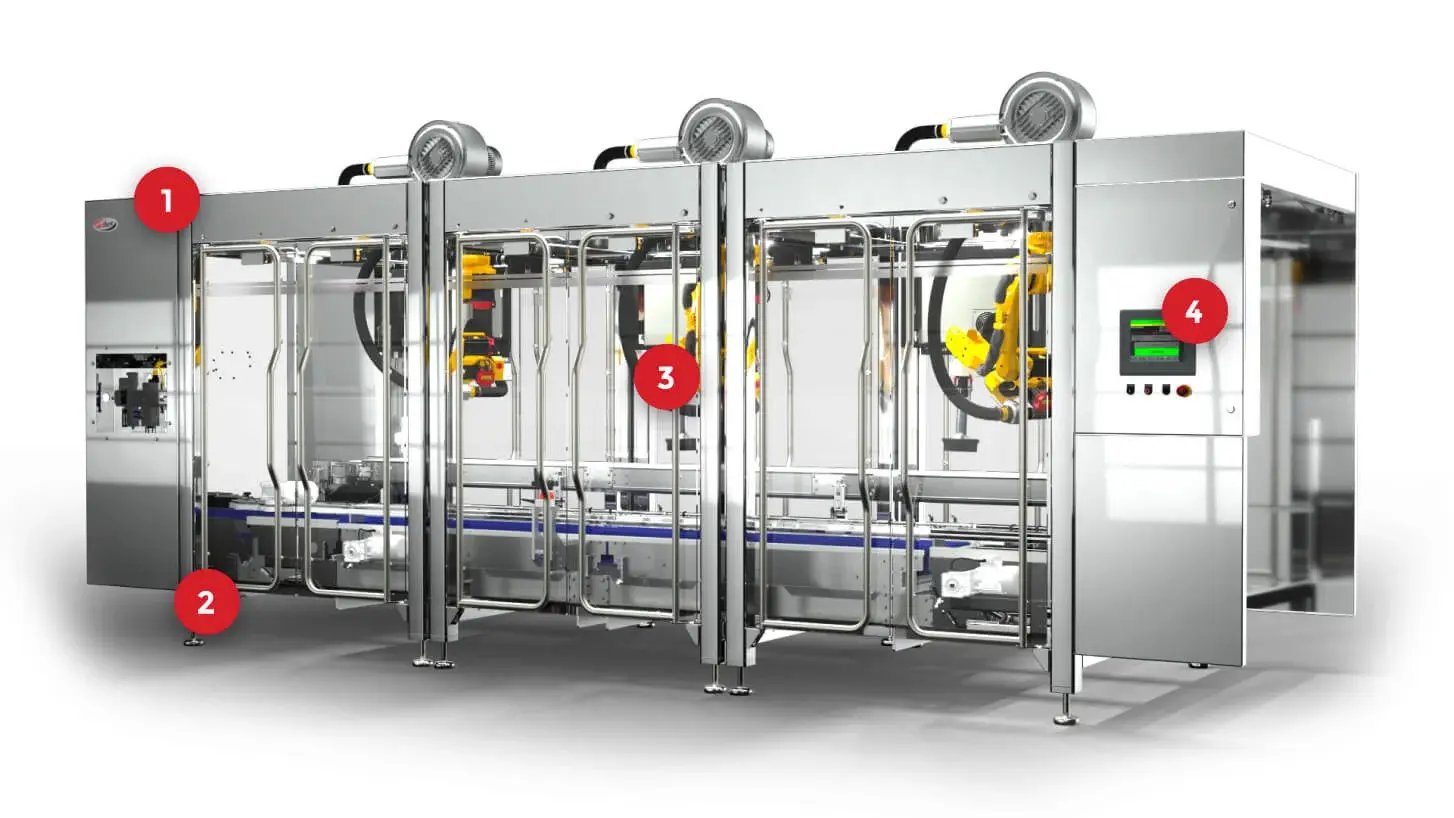

features-lsp
1

Modular Design

Available in 1, 2, 3, 4, or 5 robot options to meet any speed requirement.
2

Simple Tool-Less Changeover

Performs a full line changeover in 8 minutes or less.
3

Packs Heavy Pouches

Large bags and pouches are no problem with the heavy duty central vacuum system
4

Cabrio Case Compatible

Delkor's Cabrio Case® is free to use with purchase of Delkor's case packing equipment.

See it in action

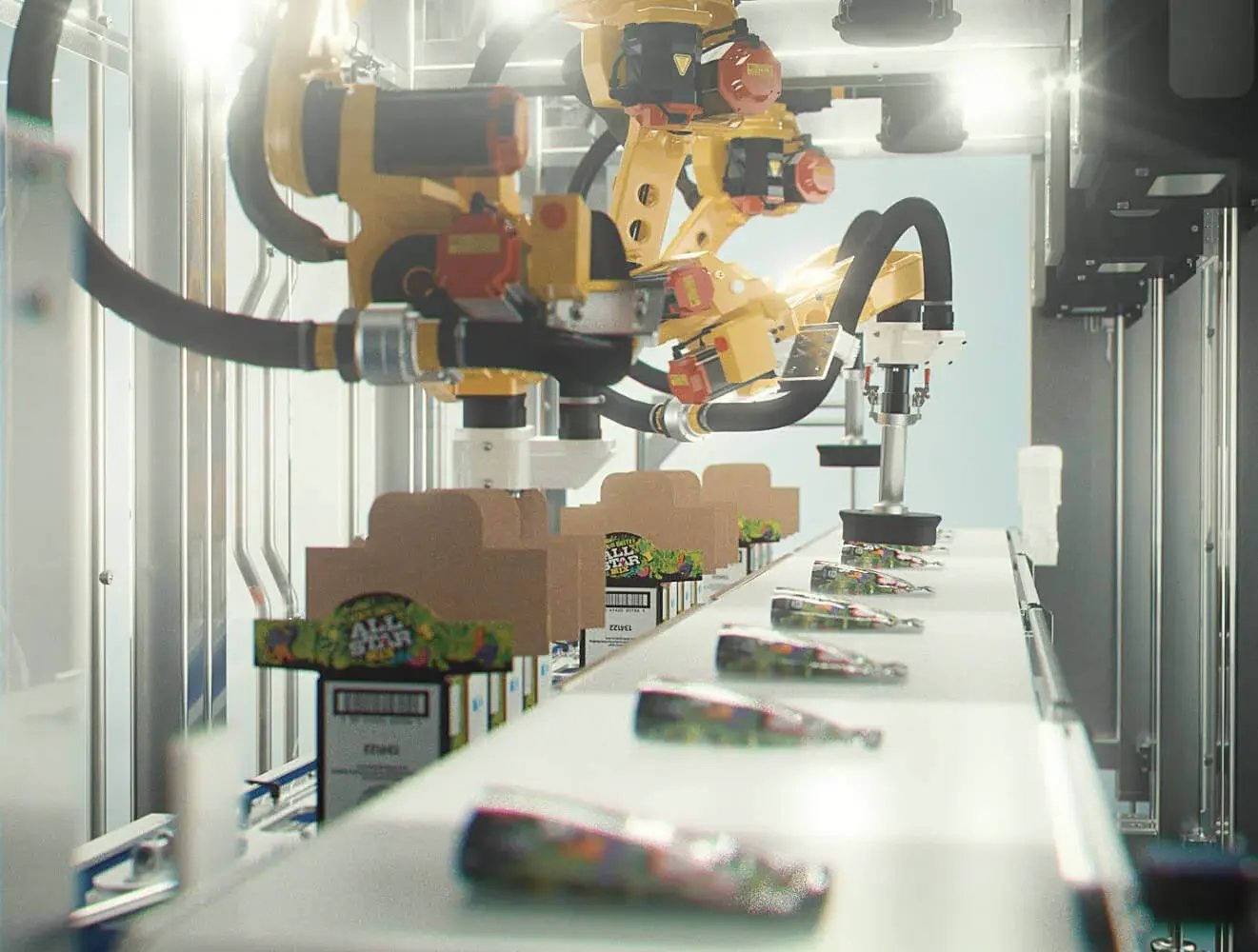

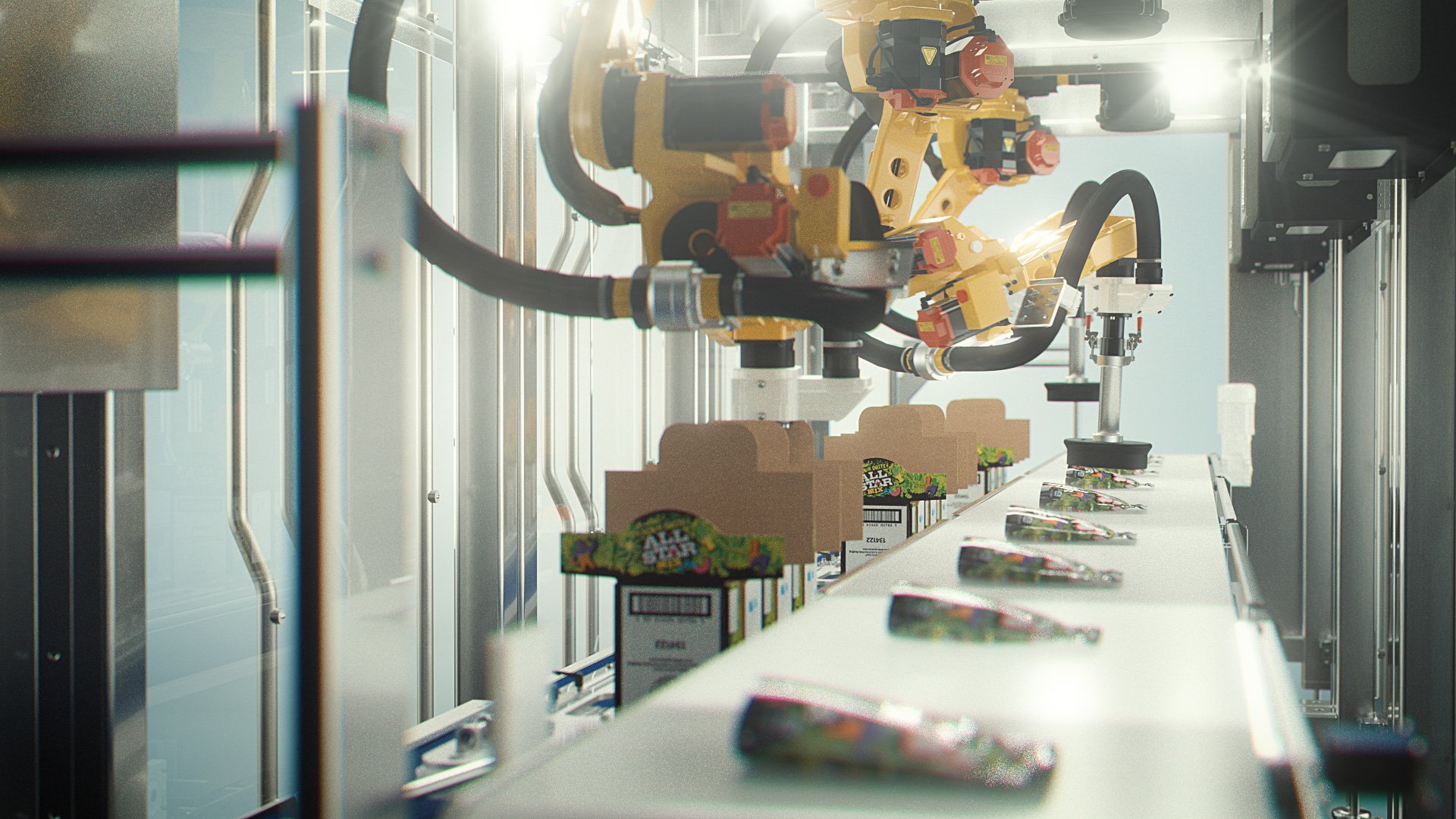

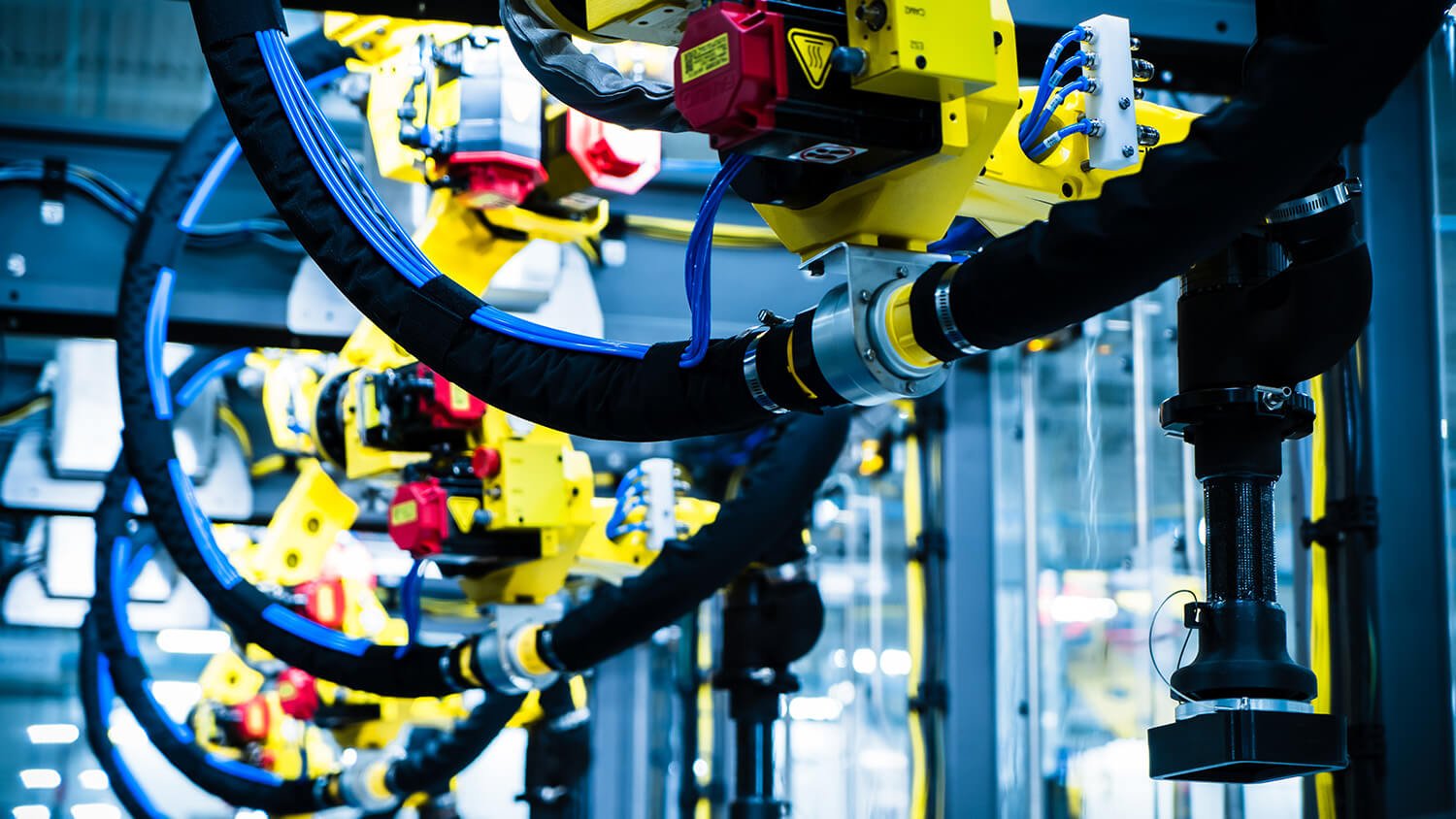

Delkor’s LSP Series Case Packer runs pouches or bags (up to 20 lbs) at speeds up to 180 per minute with dual pick heads. Compatibility meets efficiency, as the Fanuc M10 robots work together to pick pouches in any orientation on the infeed conveyor.

Specs

Key Feature
Packs Deep Cases
Key Feature
Packs Heavy Products
Key Feature
Simple Tool-Less Changeover
Key Feature
No Collation Chains or Buckets
Layout
Right Hand/Left Hand Counter Flow or Through-Flow
Robot Models

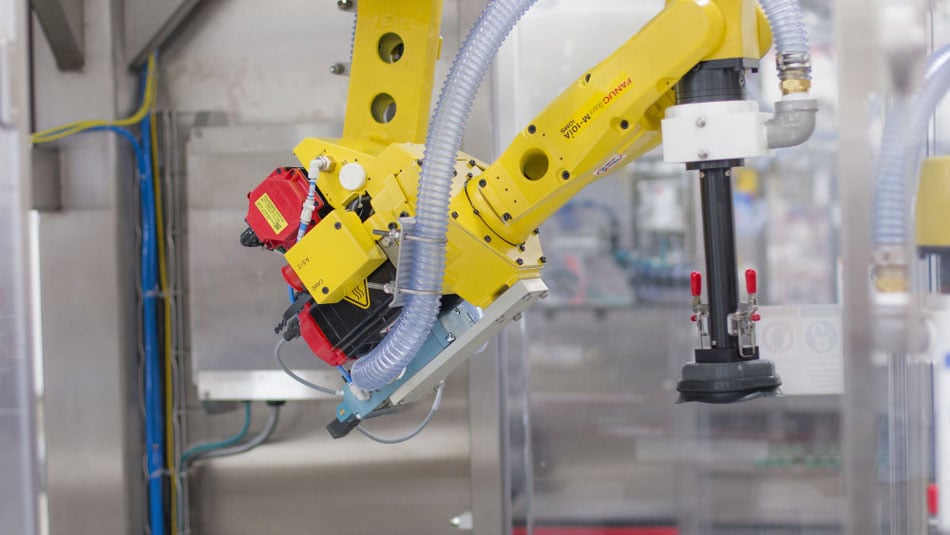

Fanuc M10iA-10ms
Robot Mount Types
Frame Mount Inverted
Robot Pick Method
Vision Pick and Place
Vacuum
Busch Central Vacuum Blowers (2)
System PLC
Allen-Bradley Control Logix
System HMI
Allen-Bradley Panelview 700 or 1000
Safety System
Category II or III
Enclosure - Main Panel
NEMA 12 (Painted), NEMA 4, or NEMA 4X(SS)
Enclosure - FANUC Cabinet
NEMA 12 (Painted), NEMA 4, or NEMA 4X(SS)
Enclosure - Camera
NEMA 12 (Painted), NEMA 4(SS) With Air Blast
Enclosure - Panel Cooling
Vortex, Heat Exchanger or Air Conditioner
Utilities - Power
480v 60hz 3ph
Utilities - Air
20 SCFM @ 80PSIG
Dimensions - Weight
9,000 lb (4082 kg)
Dimensions - Length
15'0" (4,570 mm) including guarding
Dimensions - Width
6'4" (1,930 mm)
Dimensions - Height
8'0" (2,440 mm)
Options - Frame
Stainless Steel or Powdercoated Carbon Steel
Options - Reject Bins
Stainless Steel Bins On Casters
Options - Mispick Detection
Operator Notification For Mispicks
Status Glow
Entire Machine Has Status Illumination

Delkor can work with you to design the case, and they have the capability to provide you samples of the case with graphics on. It’s like having a material company and a packaging systems company in one building.

Wilberto Torrez-Ortiz, Packbrain

Free package samples in 48 hours!

Our in-house CAD table and full-time packaging engineer enable us turn around printed case samples within 48 hours! These samples can be branded and tailored to meet the requirements of your marketing department and packaging engineers.

Similar Case Packing Equipment

Every project calls for something different - Delkor has a wide range of case packing equipment that can fulfill most secondary packaging needs!

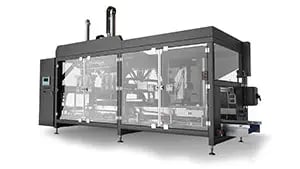

MSP Series Case Packer

MSP Series Case Packer

High Speed, Quick Changeover
Performance Series Case Packer

Performance Series Case Packer

Contoured Infeed System For Wide Range Of Products
Flex Series Packer

Flex Series Packer

Flexibility To Pack Almost Any Product
VC Series Packer

VC Series Packer

High Speed Small Pouch Packer
Packaging Equipment V Series Case Packer 6

V Series Packer

Vision Based Robotic Pick and Place Case Packer
Flat Pad Tray-Shrink

Flat Pad Tray-Shrink

Wraps Product For Strength In Distribution

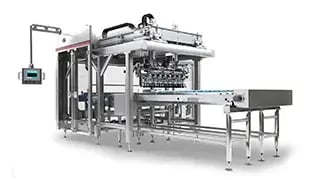

Filler Integrated Packer
