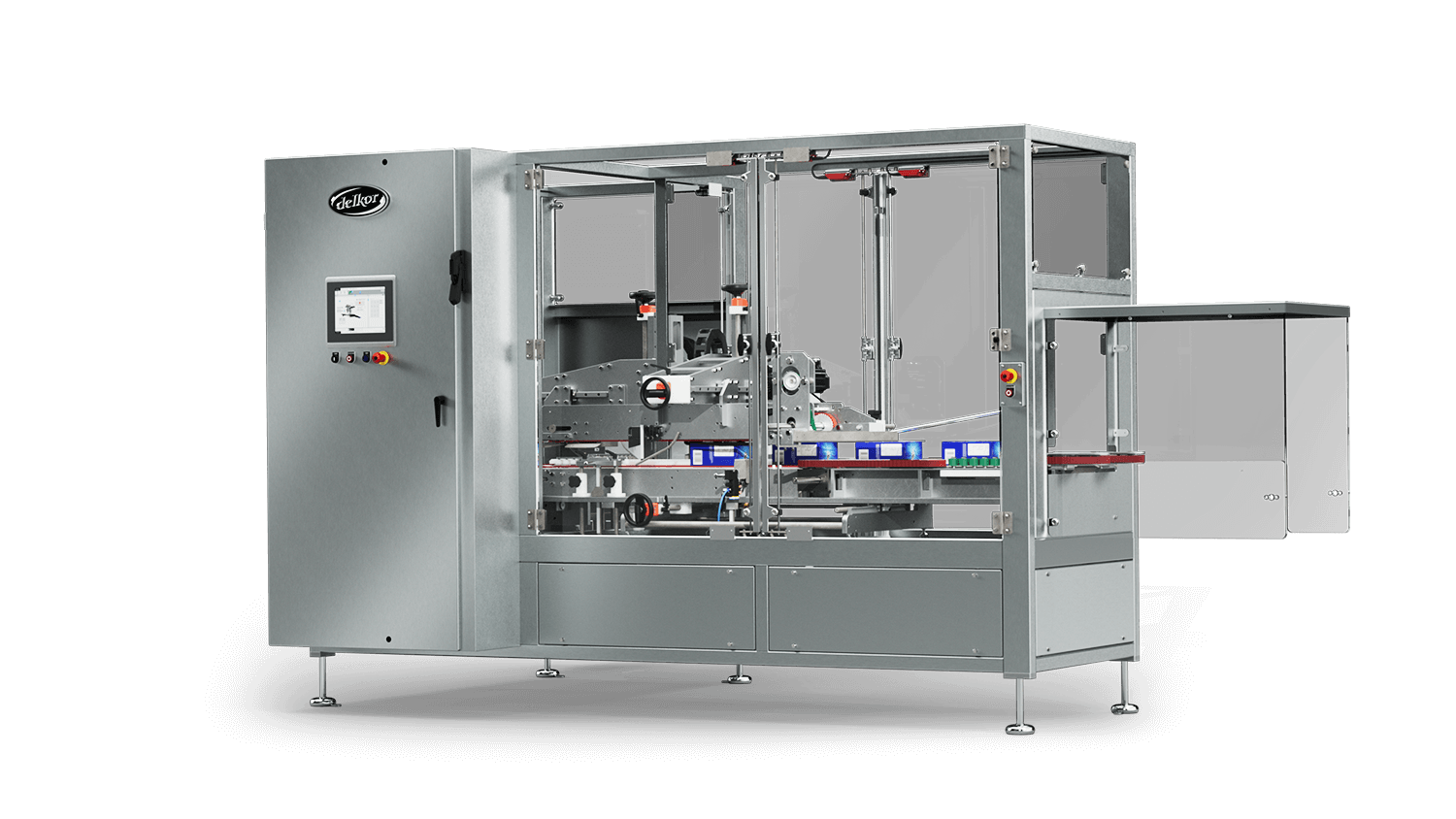

    S Series

    Closer

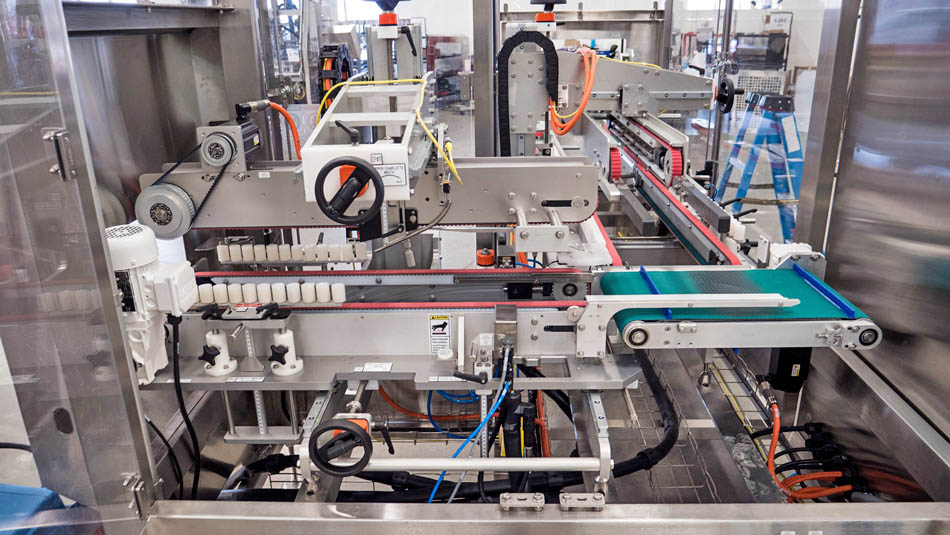

    High speed carton closer with laser precision.

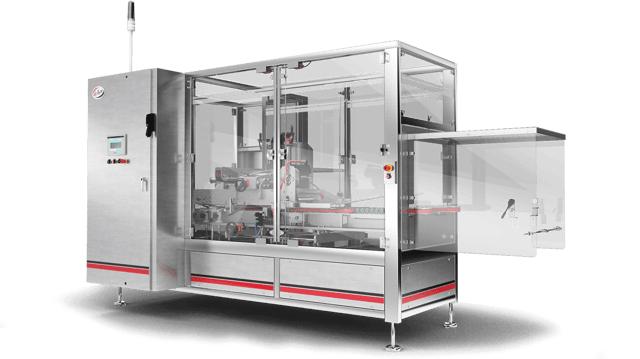

    S-Series-Closer-46
    S Series Closer 44

    Rapid Delivery

    When a customer places an order for one of these closing machines, only the customer specific parts are required, enabling our lead times to be just 12 - 16 weeks from purchase order to field installation.

    S Series Closer 41

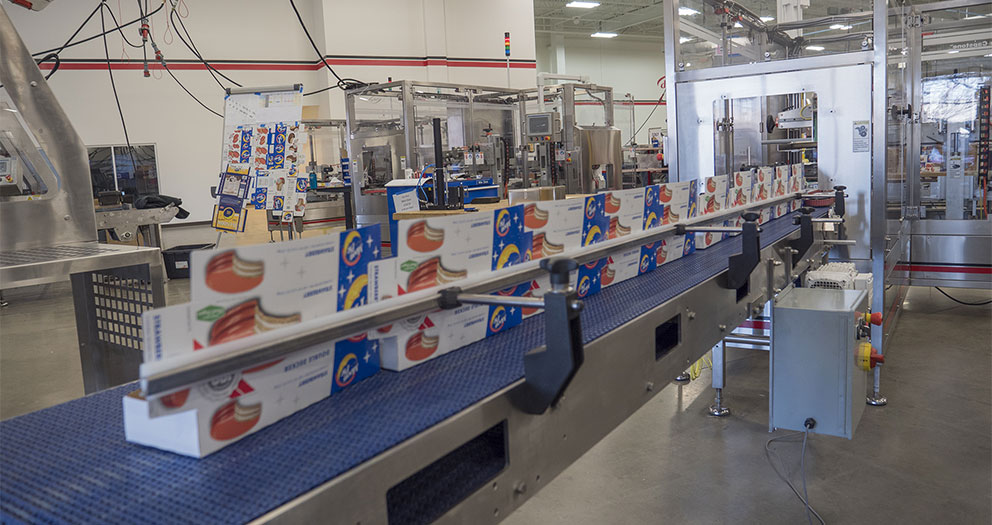

    OPTIMIZED FOR SPEED AND EFFICIENCY

    The S Series Closer runs up to 200 units per minute. Tool-less, production-ready changeovers take less than five minutes. Scales and indicators on all crank adjustment points ensure a quick and repeatable changeover.

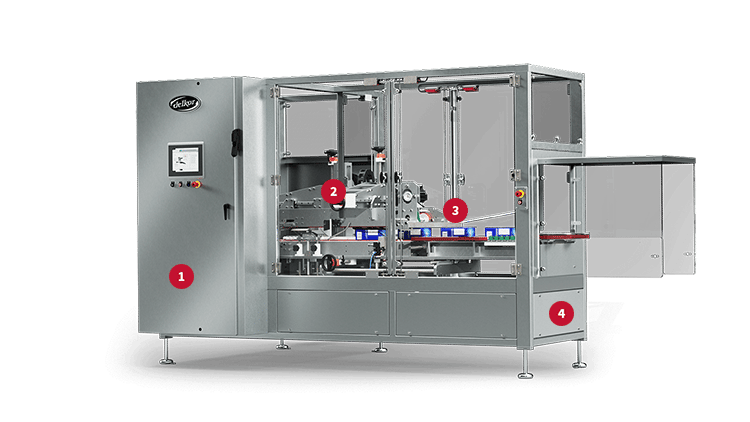

    Key Features

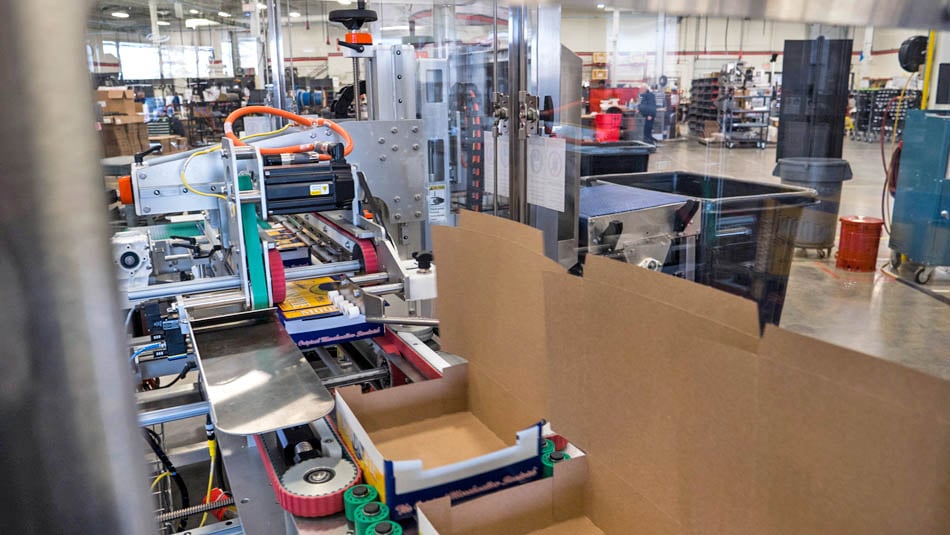

    A high-speed closing machine with intelligent positioning® that delivers impeccably formed cartons.

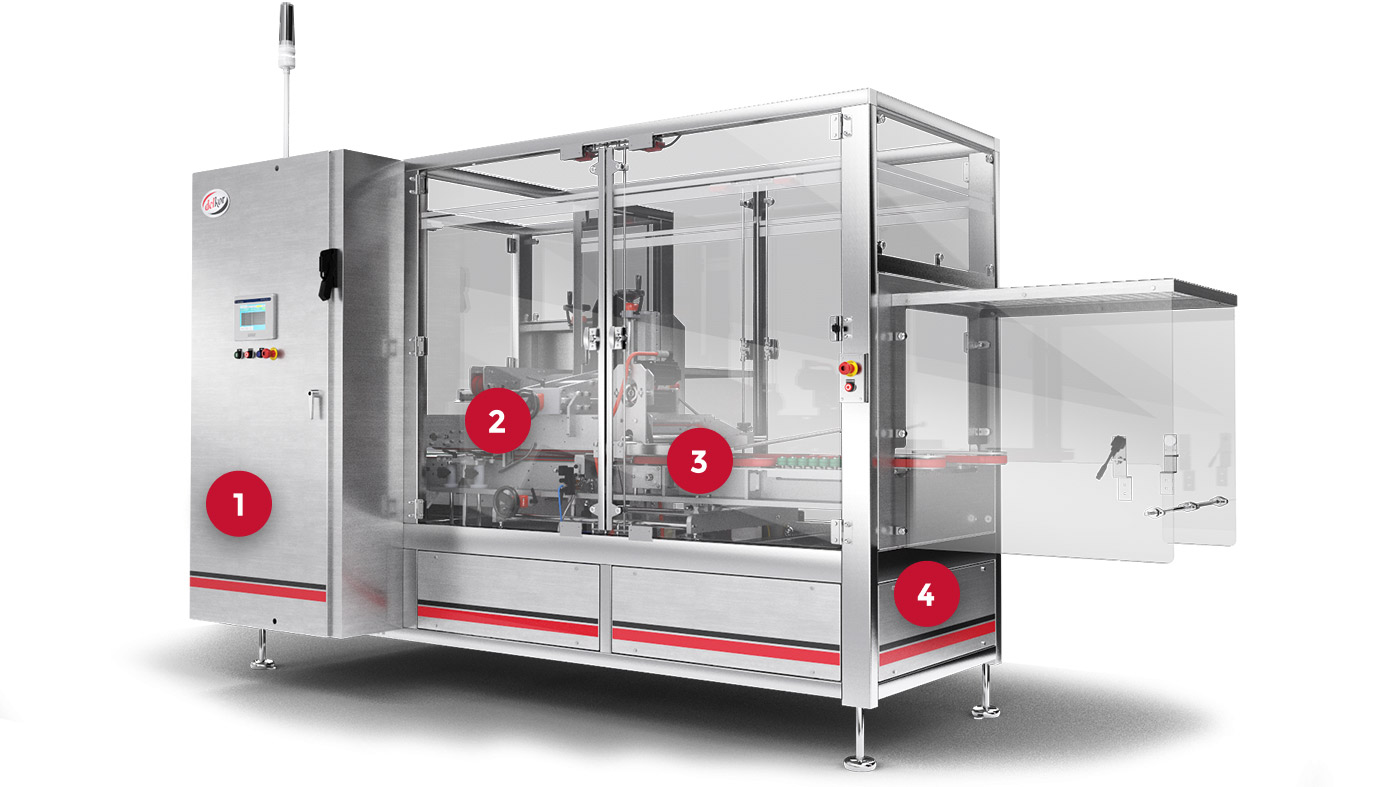

    S-Series-Closer-42
    1

    High Speed Closing

    Optimized for speed and efficiency
    2

    Intelligent Positioning

    Perfectly aligned cartons, every time.
    3

    SELF-TENSIONING BELTs

    Offer consistent performance and simplify the process of replacing used belts.
    4

    Compact Footprint

    The former's compact footprint requires less space on your production floor.

    Specs

    2 Min

    Change Over

    200 Packages

    Max Rate Per Minute

    Quick Delivery

    8-12 Week Lead Time

    Smart Machine

    Patented Technology
    View Full Specs
    Package Styles
    Tri-seal Cartons & Front Flap Seal Cartons
    Discharge Orientation

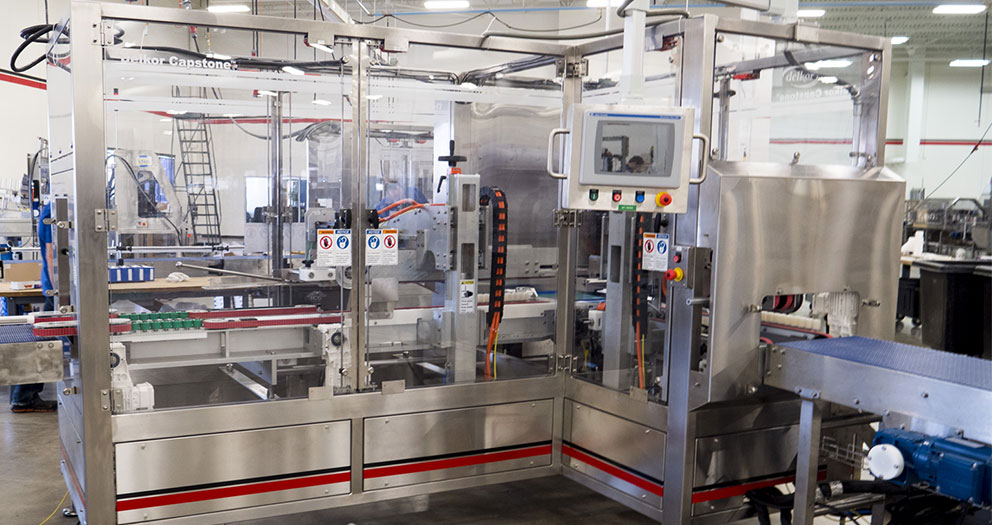

    Right Hand, Left Hand, Inline (requires 90 degree discharge transfer)
    Machine Hand
    Right Hand, Left Hand (cover left or cover right)
    Frame Materials
    Stainless Steel
    Servo-Motors
    Allen-Bradley VPL or VPF (Food Grade)
    System PLC
    Allen-Bradley Compact Logix
    System HMI
    Allen-Bradley Panelview Plus 7 10"
    Safety System
    Category III
    Enclosure - Main Panel
    Painted (NEMA 4), Stainless Steel (NEMA 4X)
    Enclosure - Panel Cooling
    Vortex, Heat Exchanger, or Air-Conditioner
    Adhesive System
    Nordson, Graco, Robatech
    Length
    10ft
    Width
    9ft 3 in
    Height
    6ft 10 in
    Utilities - Power
    480 VAC, 50-60Hz, 30 Amps
    Utilities - Air
    15 SCFM @ 80 PSIG
    Status Glow
    Bright Internal LED Status Lights
    Download PDF Close

    See it in action

    Our servo-driven tri-seal closer uses patented Intelligent Positioning® technology to measure and align the flaps on every carton even when running up to 175 cartons per minute.  This technology enables carton and graphic designs that simply are not possible on other machines.

    A key feature that helped make our decision of going with Delkor was the nice compact design of the closers. In a lot of production facilities, real estate and floor space is key. One thing we have come to take pride in is the efficiencies of the machines and the limited amount downtime. Also the service from Delkor has been phenomenal and has really helped us out over time.

    -Paul Prazak, Blue Bell Creameries

    Intelligent Positioning

    The only closer in the world with Intelligent Positioning technology lets you achieve precisely accurate flap placement during sealing. Have a carton with precision graphics? The Delkor S Series Closer will make sure they line up perfectly – every time.

    Similar Closing Equipment

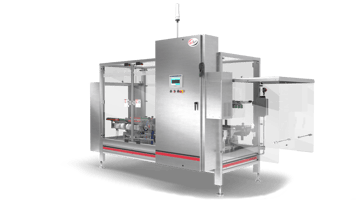

    F Series Closer
