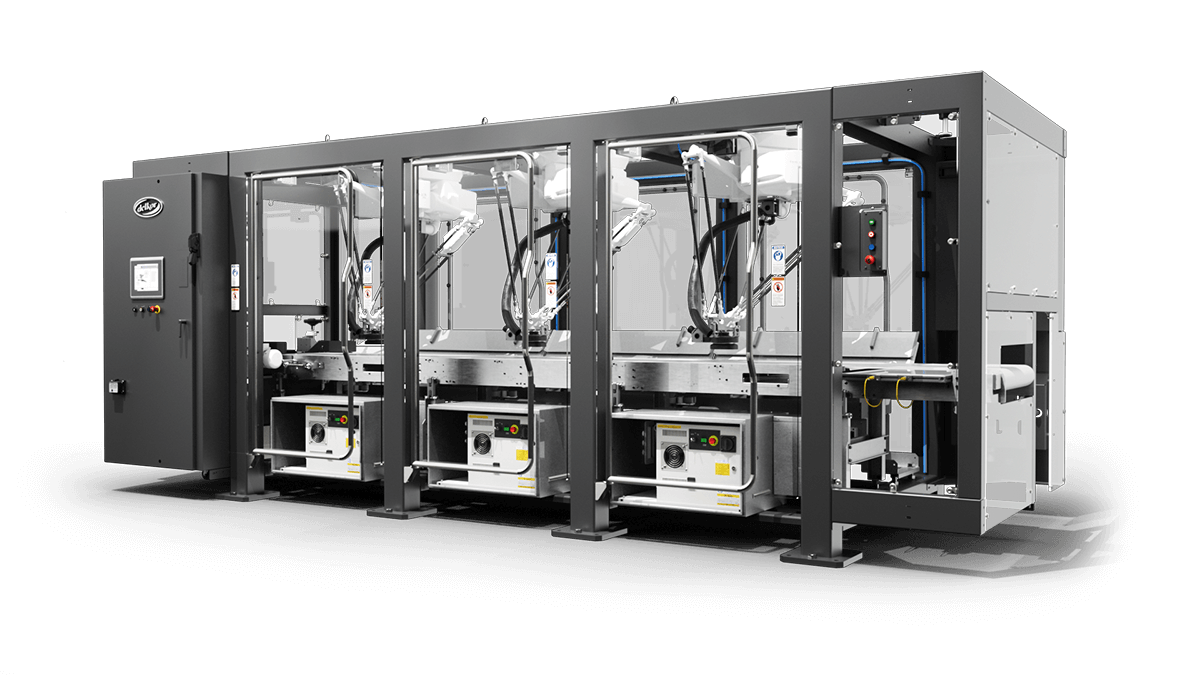

V Series

Carton & Case Packer

Vision based robotic pick and place packer

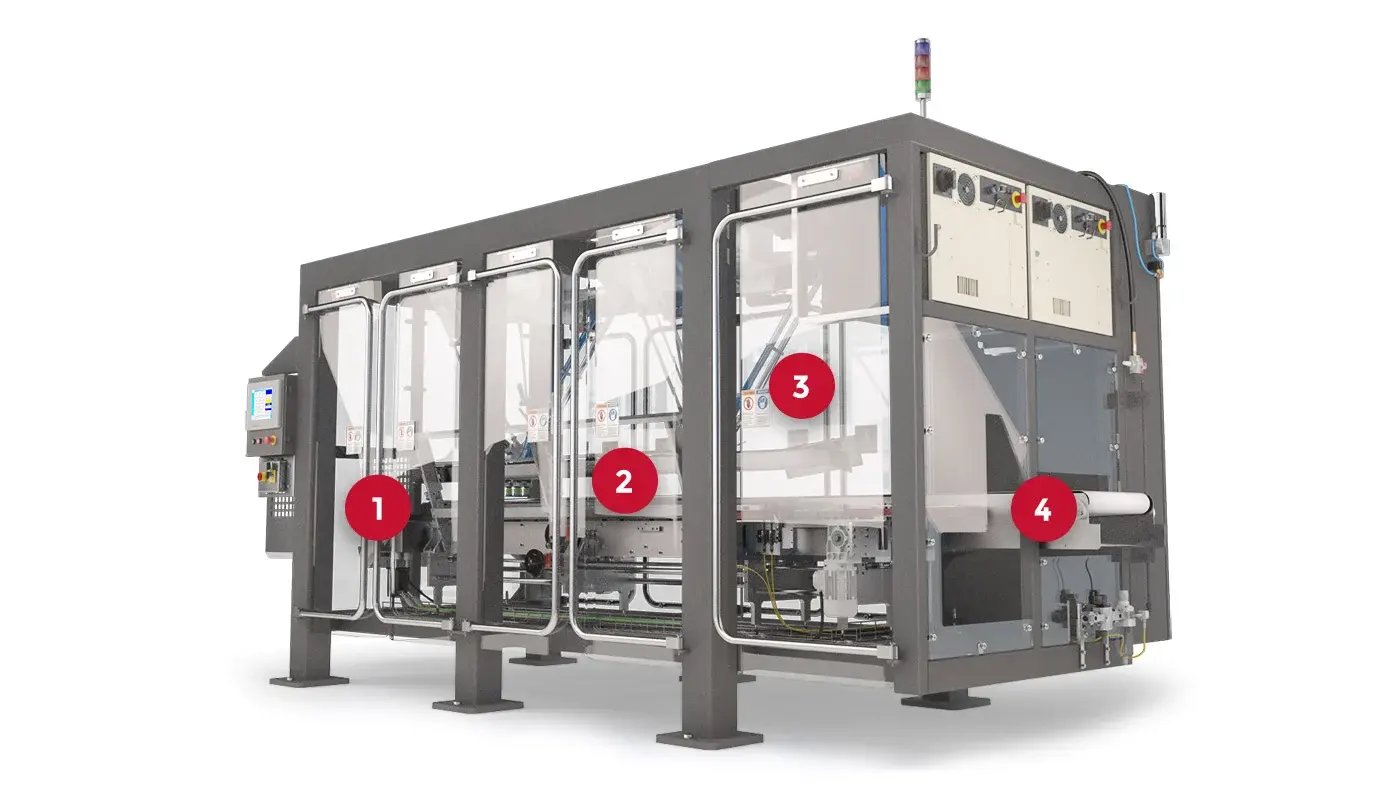

V Series Packer Packaging Equipment Delkor 2



Our V Series Packer robotically loads products into trays, cartons, or cases using pick and place vision to locate and pick random products from the infeed. Its high speed case infeed runs up to 45 cartons per minute.

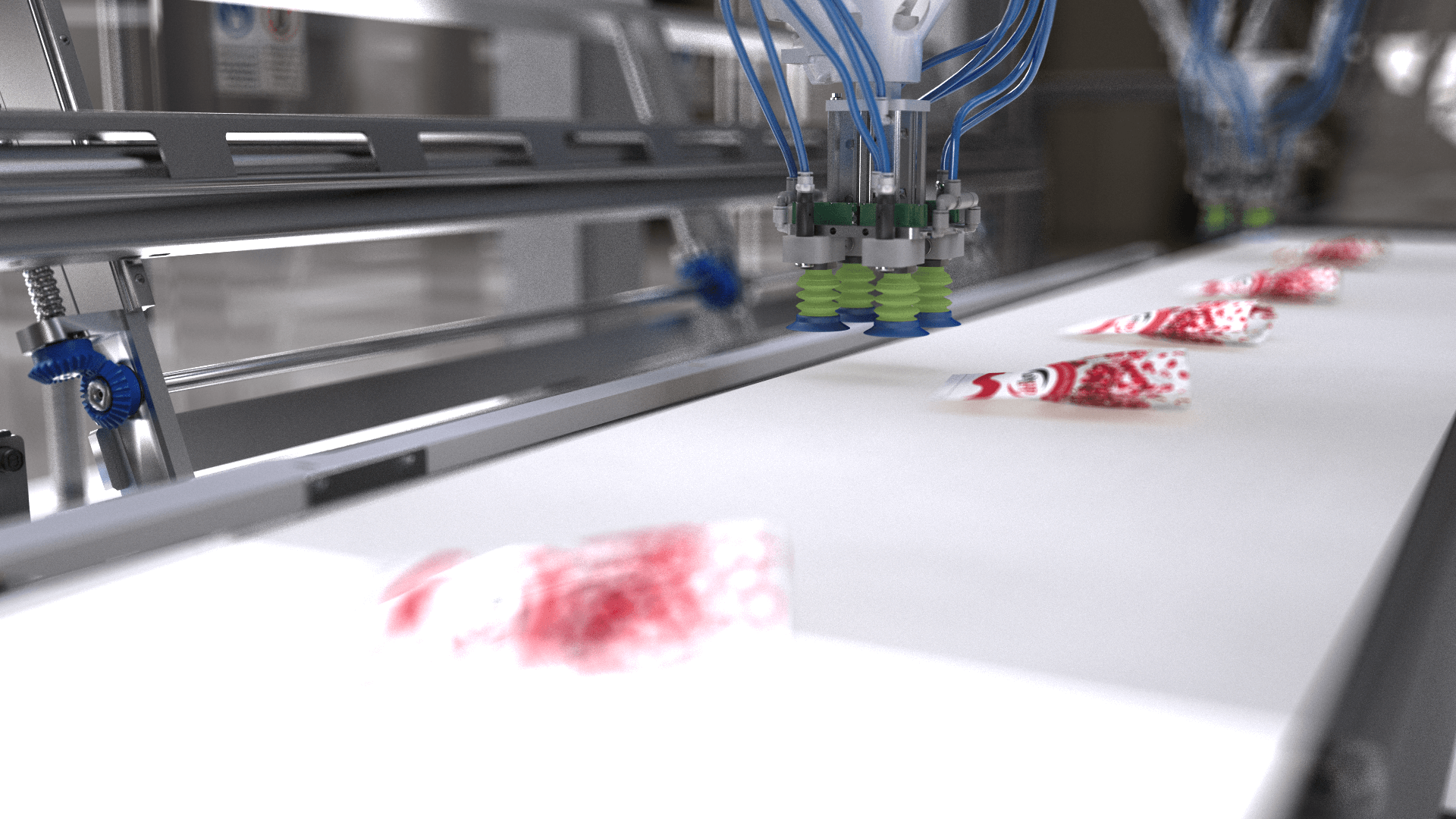

V Series Robotic Pick and Place


The Delkor V Series Packer uses vision-based technology to all for a variety of package sizes and pack patterns. Vision based pick and place conveniently accepts any random orientation of your packages.

Key Features

The V Series Packer vision-based pick and place robotic cell with single or multiple delta robots working in unison.


Total Flexibility

Loads many sizes and pack patterns. Vision collation accepts random orientation of packages.

Reflex Style Picking

Reflex-style picking allow the robots to grab multiple products between each cycle to the carton.

High Speeds

Achieves high pick and place loading speeds with maximum reliability and operation uptime.

Line Integration

Combines perfectly with Delkor’s forming and closing solutions.


Max Rate
(Up to 600 product max) 100 per minute per robot
Discharge Orientation
Inline, Counterflow
Machine Hand
Right Hand, Left Hand
Frame Materials
Painted Carbon Steel, Stainless Steel
Robot Models
Fanuc M2iA
Allen-Bradley VPL or VPF (food grade)
System PLC
Allen-Bradley Compact Logix
System HMI
Allen-Bradley Panelview Plus 7 10"
Safety System
Category III
Enclosure - Main Panel
Painted (NEMA 4), Stainless Steel (NEMA 4X)
Enclosure - Panel Cooling
Vortex, Heat Exchanger, or Air-Conditioner
Enclosure - FANUC Cabinet
NEMA 1, optional Stainless Enclosure (NEMA 4X)
Enclosure - Camera
optional Stainless Steel (NEMA 4) with Air Blast
Each cell is 4 feet 2 inches, min system length 9 feet 4 in + 4 feet per robot beyond first one
7 feet 2 inches
11 ft 8 in
Utilities - Power
480 VAC, 50-60Hz, 30 Amps
Utilities - Air
20 SCFM @ 80 PSIG
Status Glow
Bright Internal LED Status Lights
Additional Feature
Tool-Less Changeover
Additional Feature
Reject Bin Option
Additional Feature
Crash Detection

See it in action

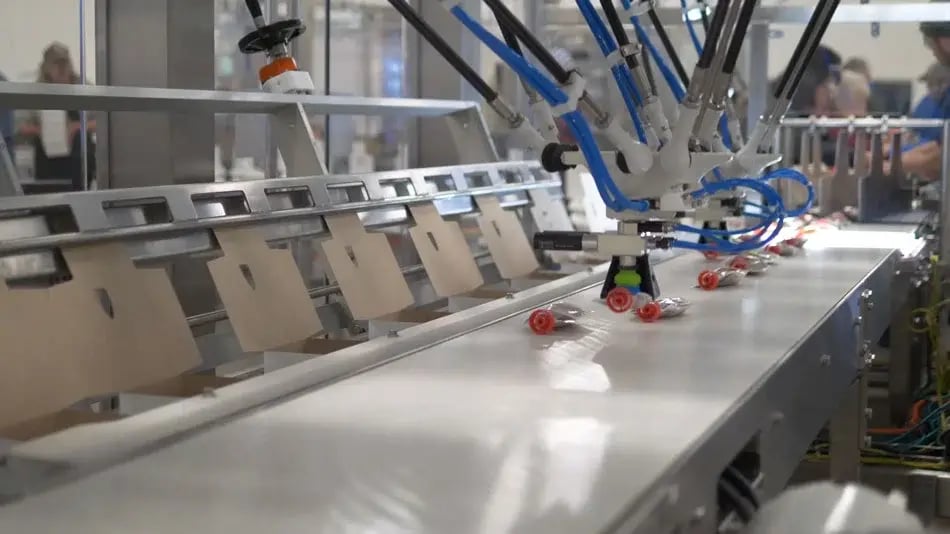

Vision-based collation, pick and place robot case packer, accepts random orientation of packages to accommodate your unique package sizes and pack patterns. Load at high speeds with single or multiple robots. The V Series Packer combines perfectly with Delkor Trayfecta® forming and Delkor Capstone closing solutions.

Delkor can work with you to design the case, and they have the capability to provide you samples of the case with graphics on. It’s like having a material company and a packaging systems company in one building.

Wilberto Torrez-Ortiz, Packbrain

Free package samples in 48 hours!

Our in-house CAD table and full-time packaging engineer enable us turn around printed case samples within 48 hours! These samples can be branded and tailored to meet the requirements of your marketing department and packaging engineers.

Explore More Case Packing Equipment

Every project calls for something different - Delkor has the widest range of case packing equipment that can match any packaging need.


LSP Series Case Packer

Any Case and Tray Style, Quick Changeover
MSP Series Case Packer

MSP Series Case Packer

High Speed, Quick Changeover
Performance Series Case Packer

Performance Series Case Packer

Contoured Infeed System For Wide Range Of Products
Filler Integrated Packer

Filler Integrated Packer

Saves Space By Picking Directly From The Filler
