    CS Series Tape or Glue

    Sealer

    Clean and Precise Sealing for RSC or HSC Cases

    • CSG Glue Sealer
    • CST Tape Sealer

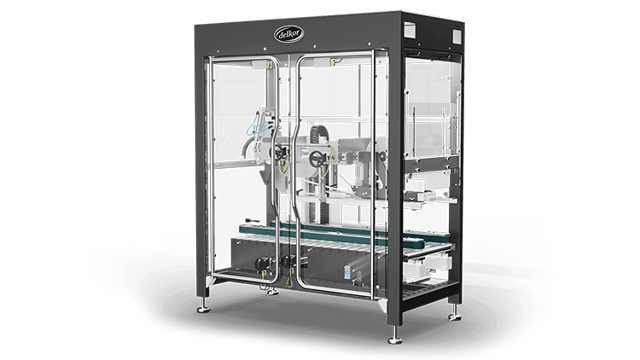

    A side profile view of Delkor's CS Series Sealer

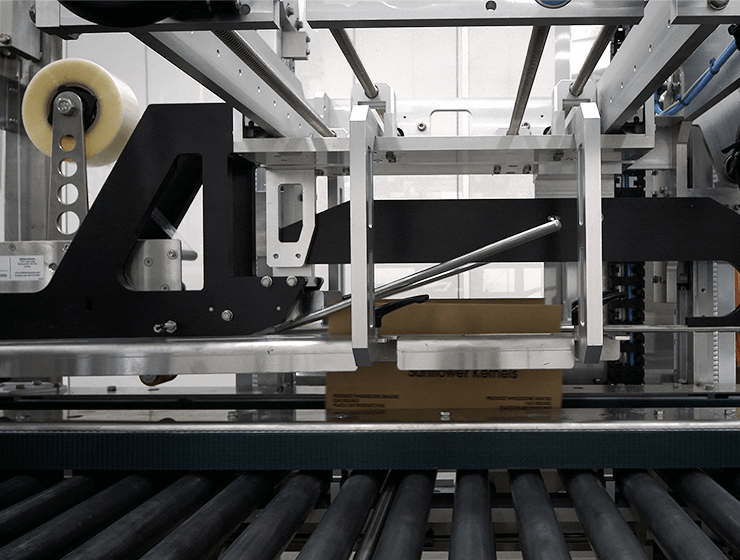

    A close up view of Delkor's CS Series Case Sealer

    Sealing Options to Meet Your Needs

    Whether your package design requires a taped or glued seal, the CS Series Sealer can deliver. Not sure on what will work best? Our packaging experts would be more than happy to walk you through the options.

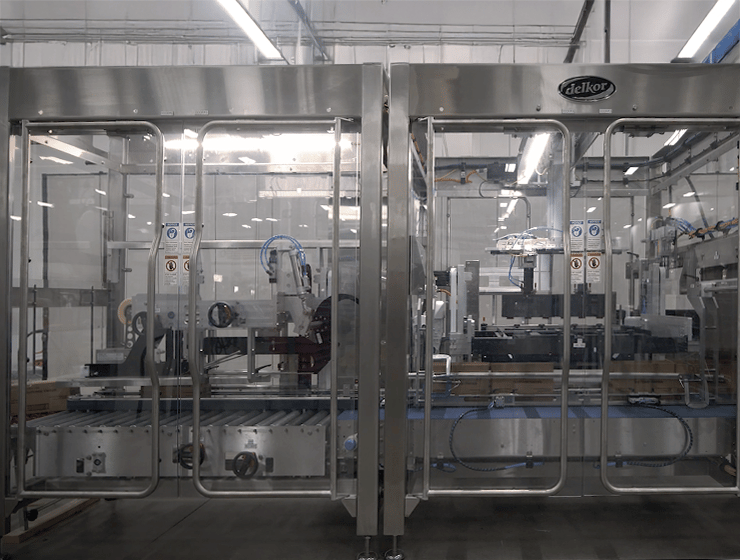

    A photo of Delkor's CS Series Sealer and Performance Series Case Packer side by side

    Integrated

    The CS Series Sealer seamlessly integrates with other Delkor packaging equipment to keep production lines compact, cost effective and running as smoothly and efficiently as possible.

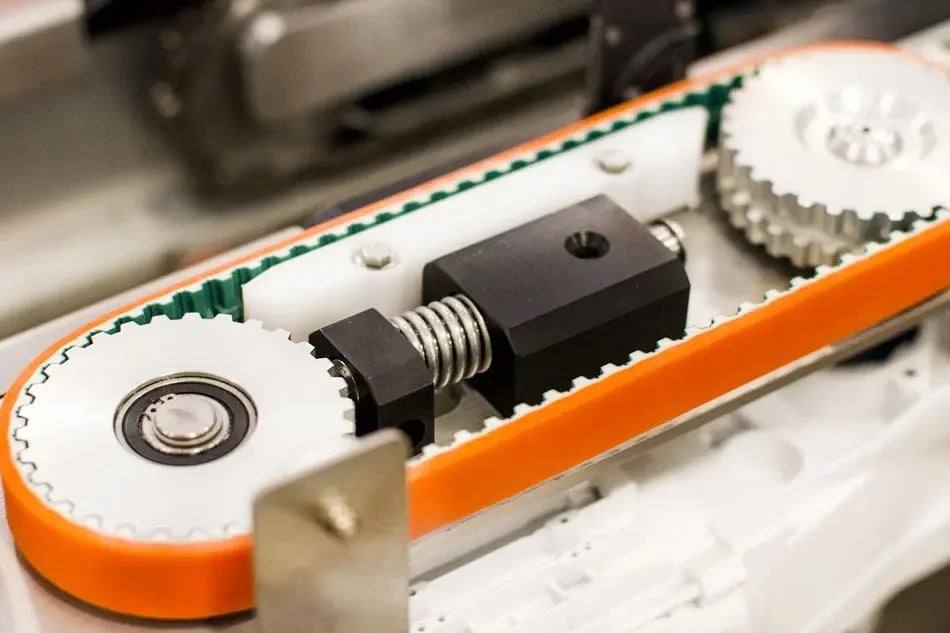

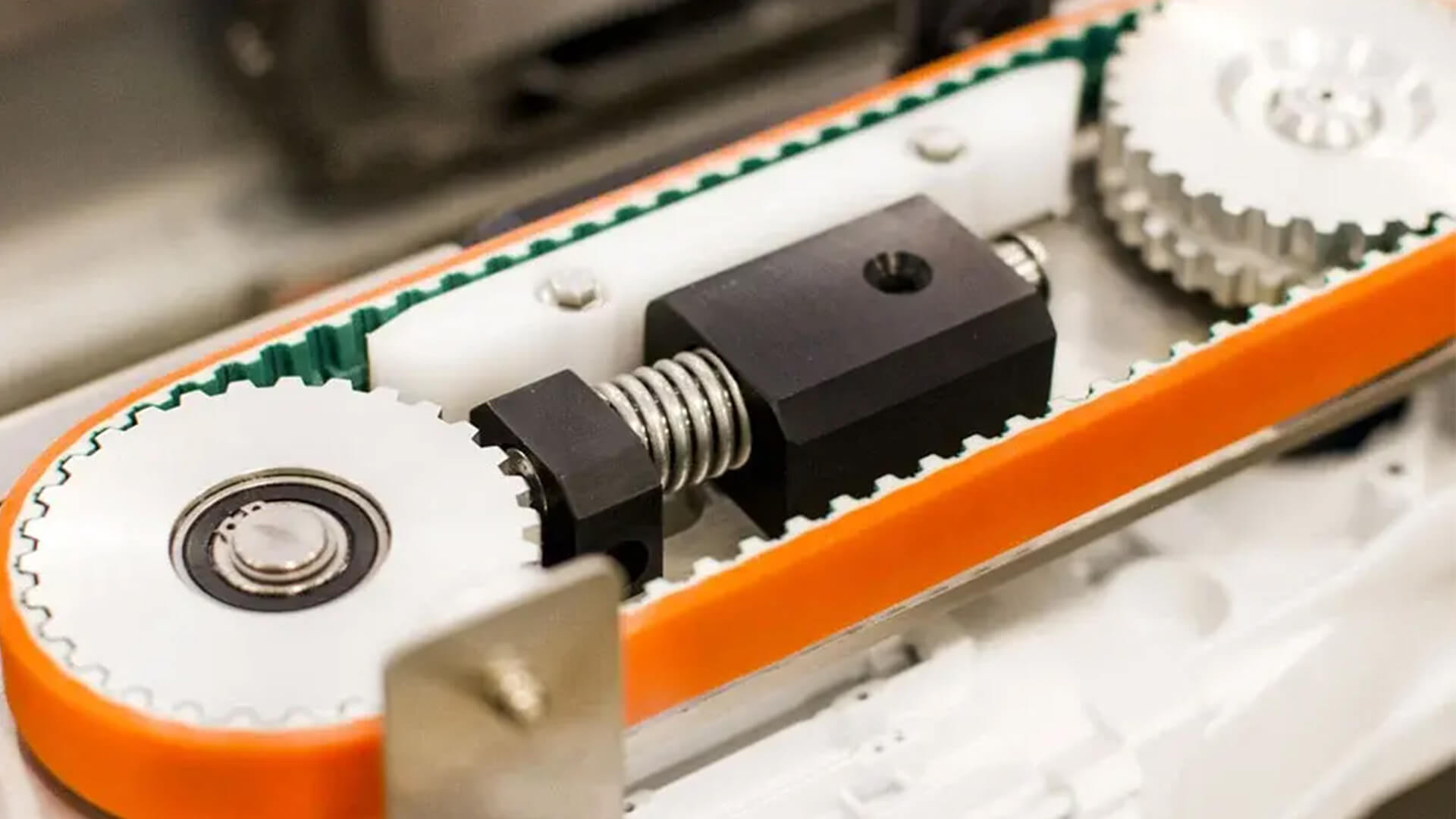

    case-sealer-self-tensioning-belt

    Robust and Reliable

    Heavy-duty construction available in powder coated or optional stainless steel, the CS Series Sealer holds up in even the most demanding production environments.

    Key Features

    Easily integrating into your Delkor packaging line, the CS Series Sealer seals the deal on your RSC or HSC packages.

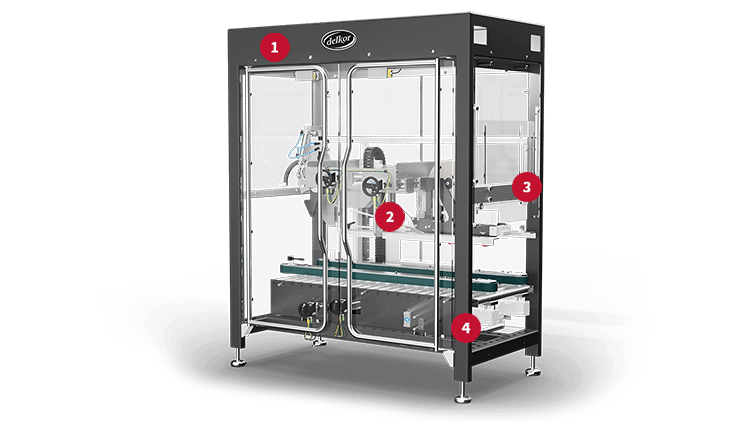

    A side profile view of Delkor's CS Series Sealer with numbered red circles indicating key features
    1

    Compact Footprint

    Fits into tight spaces with compact inline footprint.
    2

    Glue or tape Sealing

    Choose from glue or tape sealing options to meet requirements
    3

    Quick, Tool-Less Changeover

    Fast and accurate product changeovers are accomplished in approximately two minutes
    4

    Robust and Reliable

    Heavy-duty construction and available in powder coated or optional stainless steel

    Specs

    40 Cases

    Max Rate

    2 Min

    Changeover

    Package Styles

    RSC, HSC

    Compact Footprint

    Saves Space
    View Full Specs
    Changeover
    2 Minutes
    Package Styles
    RSC, HSC
    Max Rate
    40 Packages per minute
    Discharge Orientation
    Inline
    Machine Hand
    Right Hand, Left Hand
    Frame Materials
    Painted Carbon Steel, Stainless Steel, Tubeless Stainless Steel
    System PLC
    Allen-Bradley Compact Logix
    System HMI
    Allen-Bradley Panelview Plus 7 10"
    Safety System
    Category III
    Enclosure - Main Panel
    Standalone Only - Painted (NEMA 4), Stainless Steel (NEMA 4X)
    Enclosure - Panel Cooling
    Vortex, Heat Exhanger, or Air-Conditioner
    Adhesive System
    Nordson, Graco, Robatech
    Length
    6ft, 2in (1,880 mm)
    Width
    3ft, 2in (965 mm)
    Height
    7ft, 6in (2,290 mm)
    Utilities - Power
    480 VAC, 50-60Hz, 30 Amps
    Utilities - Air
    5 SCFM @ 80 PSIG
    Status Glow
    Bright Internal LED Status Lights
    Additional Feature
    Platinum Line Machine (Modular Design)
    Additional Feature
    Tool-Less Changeover
    Additional Feature
    Machine Integration
    Download PDF Close

    See it in action

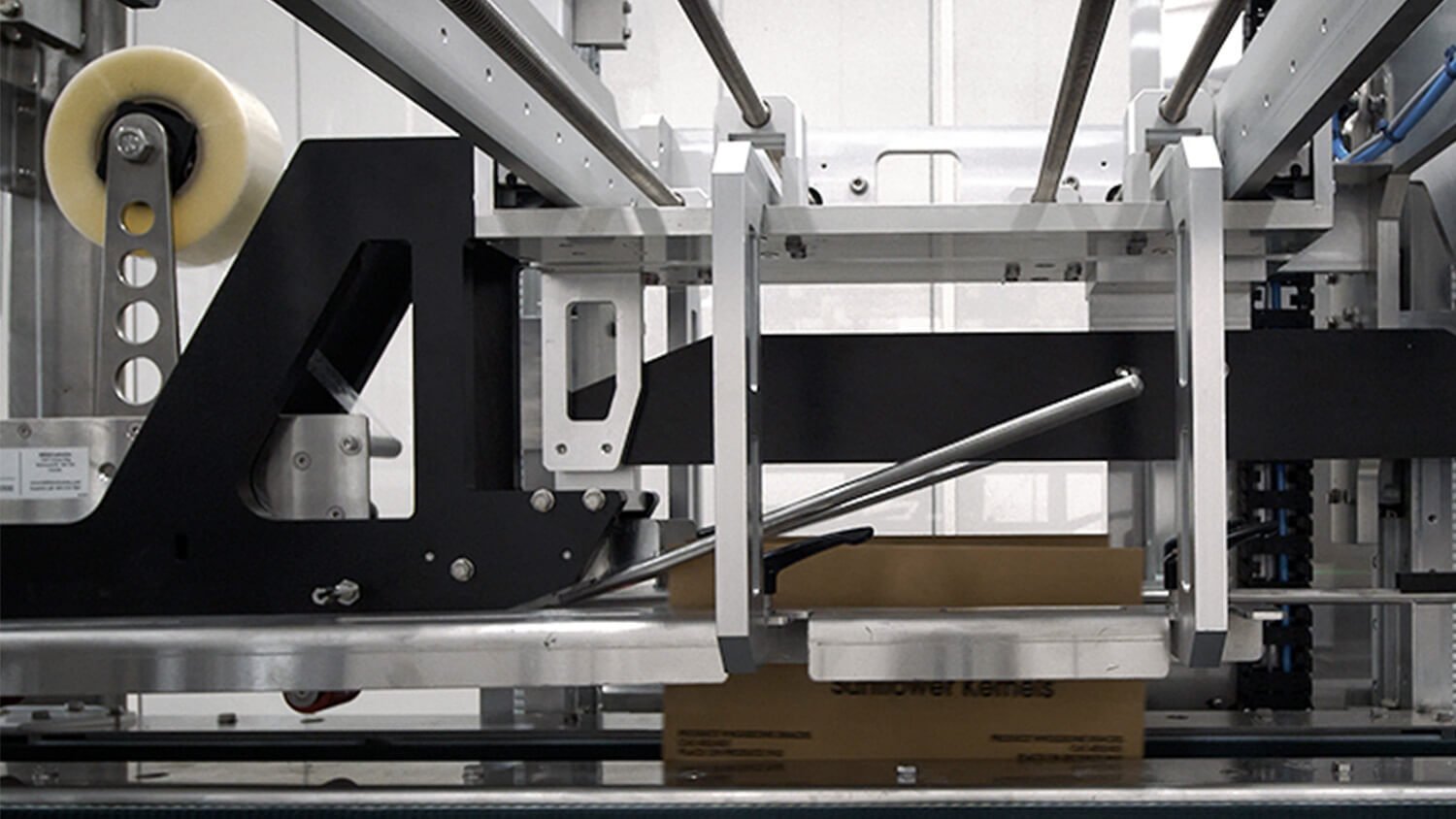

    Watch as the CS Series Tape Sealer perfectly closes and seals RSC cases on this Delkor packaging line.

    A key feature that helped make our decision of going with Delkor was the nice compact design of the closers. In a lot of production facilities, real estate and floor space is key.

    Manager of Plant Operations, Blue Bell Creameries

    Free package samples in 48 hours!

    Want to see exactly how your printed materials will look? Delkor's Package Lab will work with you to brand and tailor printed case samples to meet the requirements of your marketing department and packaging engineers. The best part? You'll have samples in-hand in less than 48 hours.

    Get my Free Sample

    Similar Closing Equipment

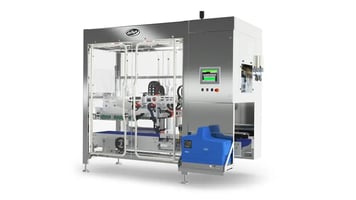

    A side profile view of Delkor's F Series Closer

    F Series Closer

    Low Maintenance, High Speed Carton & Case Closer

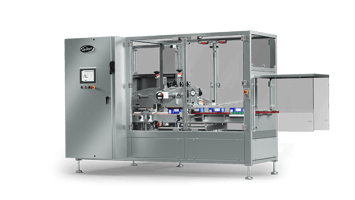

    A front view of Delkor's S Series Closer
