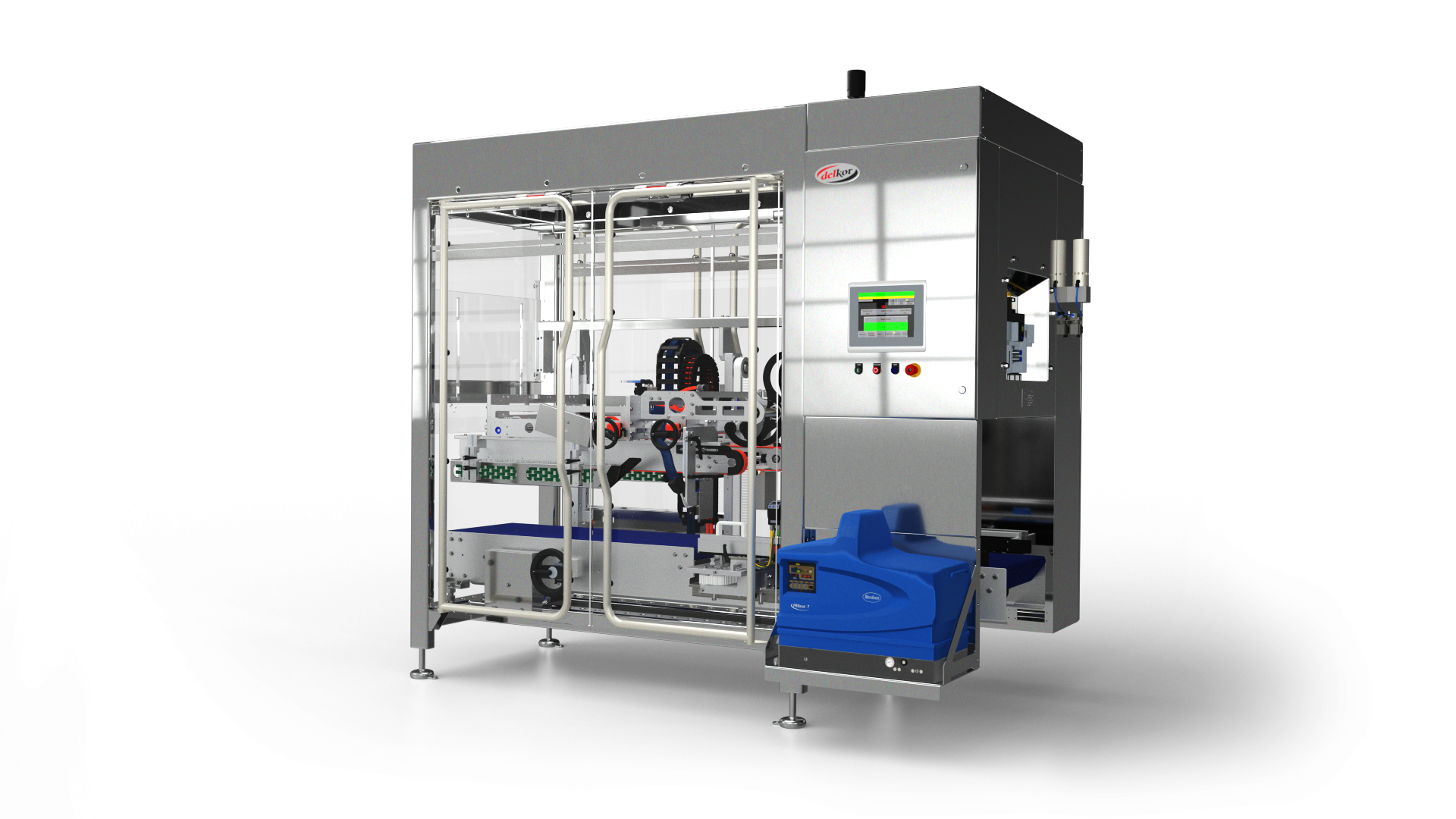

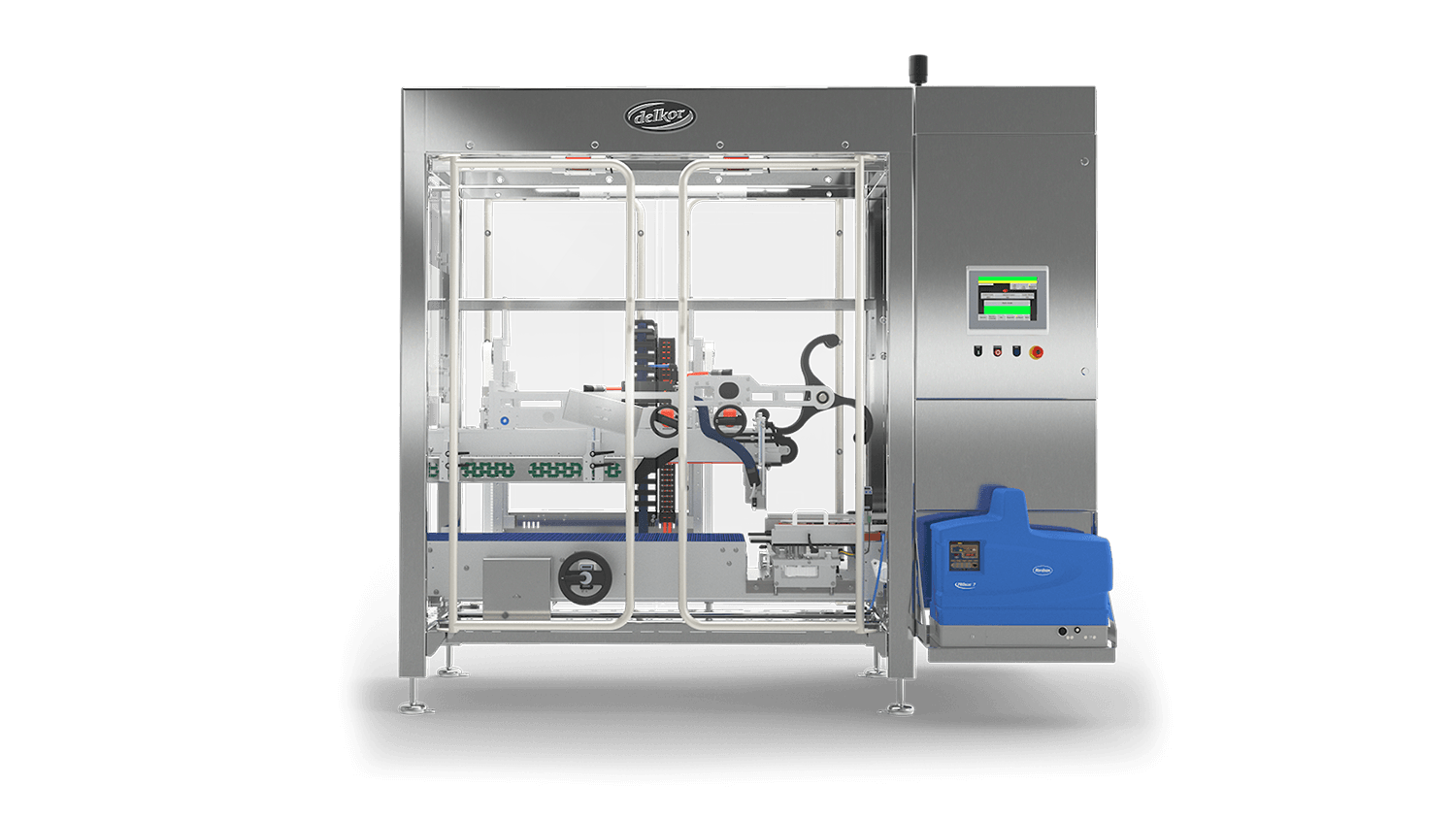

F Series

    Closer

    Low maintenance, high speed carton and case closer

    MicrosoftTeams-image (78)
    case-sealer-self-tensioning-belt

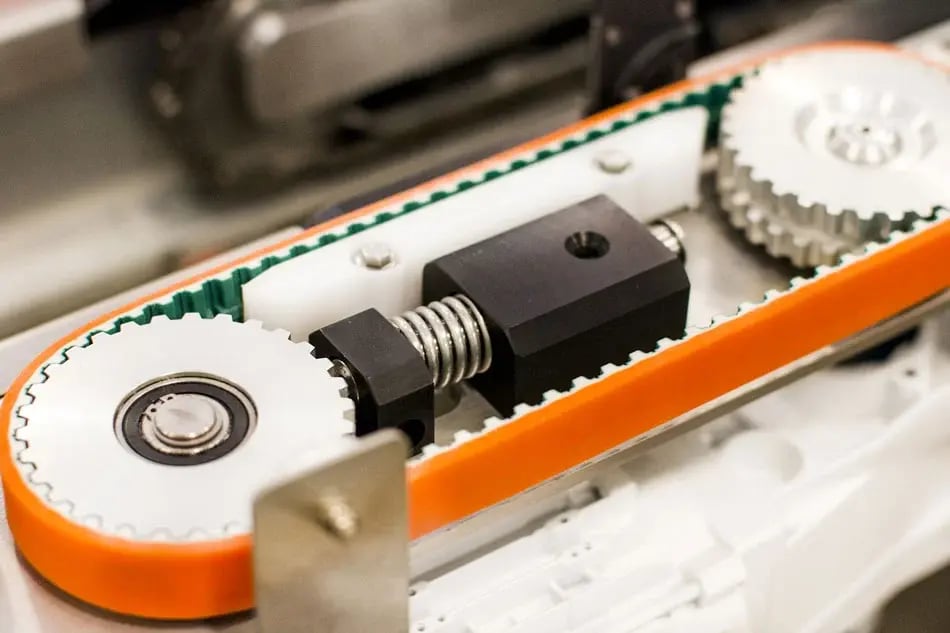

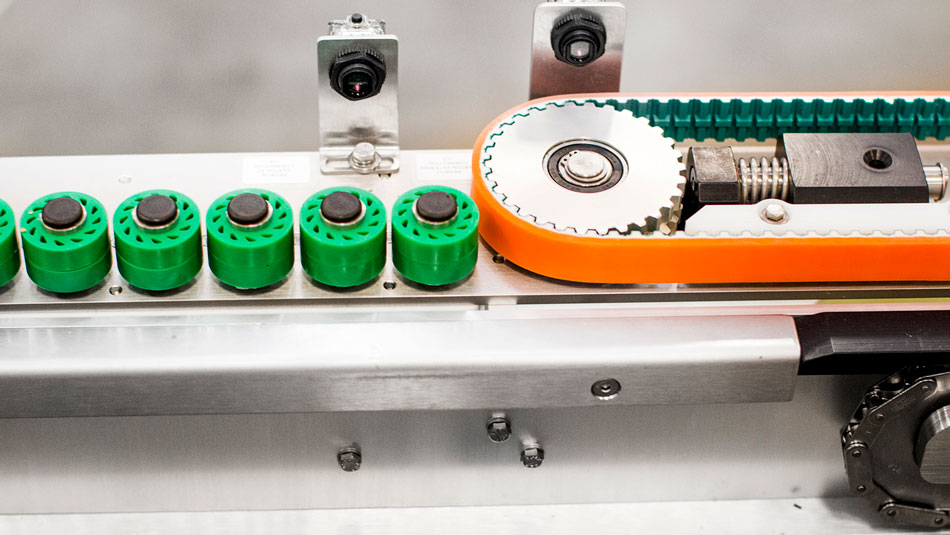

    Self Tensioning Belt

    Self tensioning belts allow for long life and simple belt replacement when worn and are combined with oversized bearings and shafts, and lug-less belts to alleviate maintenance problems common to other closers.

    case-sealer-allen-bradley

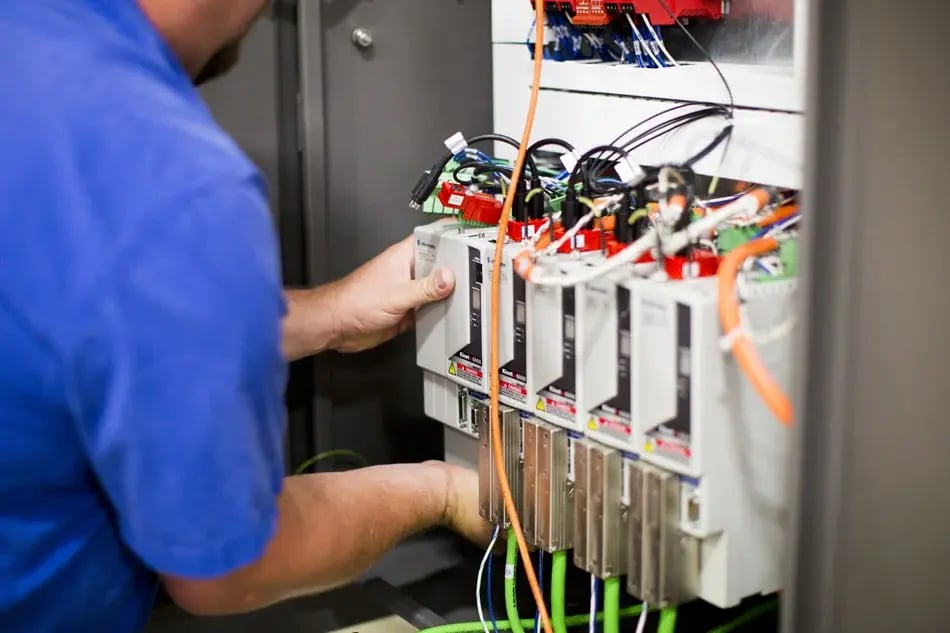

    Take Control

    All our machines share a common platform using Allen-Bradley controls allowing for complete line integration resulting in shorter, more efficient operator training.

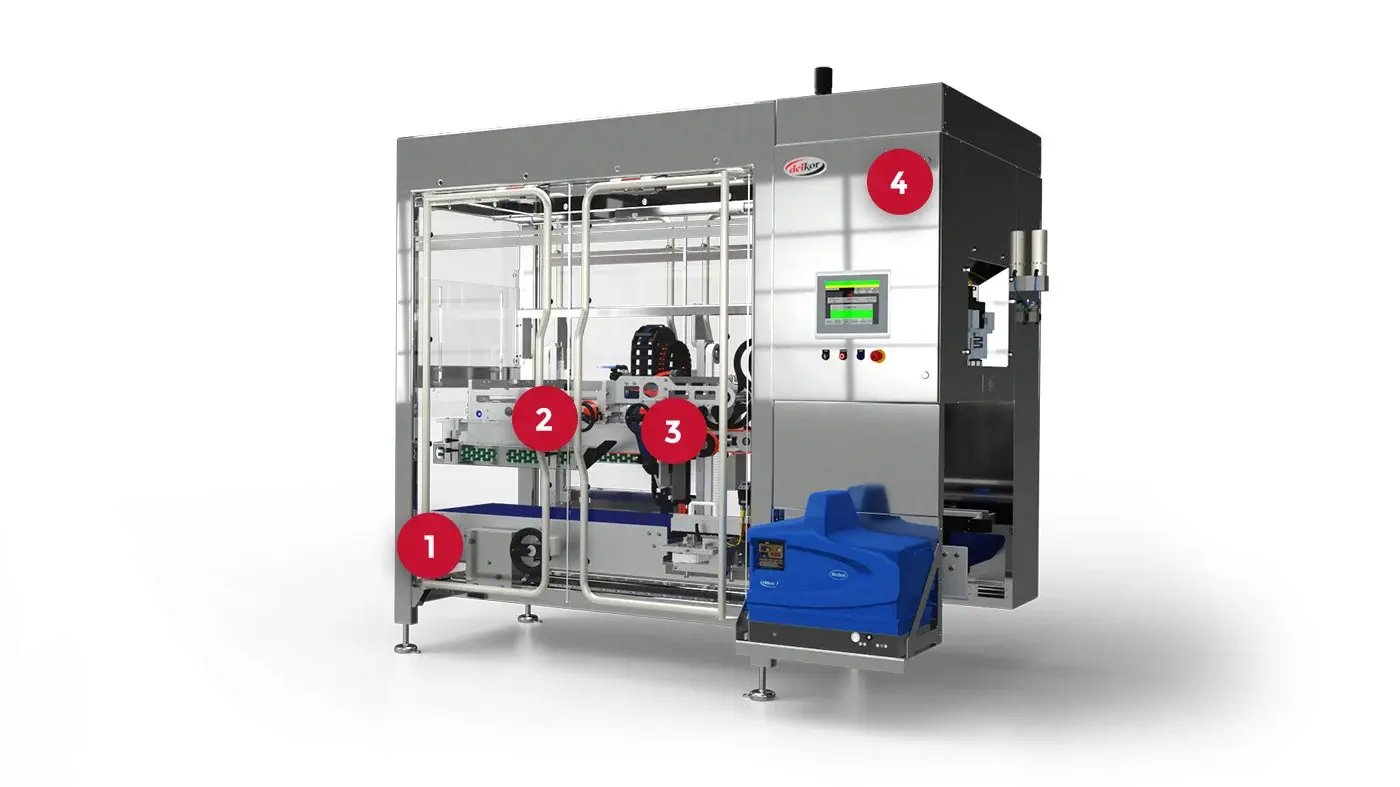

    Key Features

    Continuous motion flange-style carton and case closer with tool-less changeover in less than two minutes!

    F-Series-Closer-Key-Features-32
    1

    Compact Footprint

    Fits into tight spaces with compact inline footprint.
    2

    Self Tensioning Belts

    Long lifespan and simple belt replacement when worn
    3

    Quick Changeover

    Fast and accurate product changeovers are accomplished in approximately one minute.
    4

    High Speed

    Operates at speeds as high as 60 cases per minute with the ability to pass empty cases through.

    Specs

    60 Cases

    Max Rate

    2 Min

    Change Over

    Any Package Style

    Cases, Trays, and RRP

    Compact Footprint

    Saves Space
    View Full Specs
    Key Feature
    Close Cases, Stackable Shoulders Trays, RSC, and More
    Key Feature
    Anti-Jam Design Due to Bottom and Top Drive Belts
    Key Feature
    2 Minute Tool-less Changeover
    Key Feature
    Walk-In Guard Doors for Easy Maintenance
    Key Feature
    No Change Parts Required
    Weight
    2400 lbs
    Electrical Enclosure
    NEMA 4 (Stainless Steel) or Nema 12 (Painted)
    Status Indicator
    Five-Color LED Machine Status Glow
    Layout
    Right Hand, Left Hand Optional
    Smart Machinery
    Digital Feedback Indicators for Easy Changeover
    Compressed Air
    15 SCFM @ 80 PSI
    Construction
    Stainless Steel or Painted Carbon Steel Frame
    Electrical
    480 VAC, 50-60Hz, 30 Amps
    Safety System
    Category III
    Adhesive System
    Nordson
    Servo Motor
    Allen-Bradley VPL or VPF (Food Grade)
    System PLC
    Allen-Bradley Compact Logix
    System HMI
    Allen-Bradley Panelview 1000
    Download PDF Close

    See it in action

    The economical Delkor F Series Case Closer can operate at speeds as high as 60 cases per minute with the ability to pass empty cases through. Options include automated lift and tool-less changeover in less than one minute.

    A key feature that helped make our decision of going with Delkor was the nice compact design of the closers. In a lot of production facilities, real estate and floor space is key. One thing we have come to take pride in is the efficiencies of the machines and the limited amount downtime. Also the service from Delkor has been phenomenal and has really helped us out over time.

    Paul Prazak, Blue Bell Creameries

    Free package samples in 48 hours!

    Our in-house CAD table and full-time packaging engineer enable us turn around printed case samples within 48 hours! These samples can be branded and tailored to meet the requirements of your marketing department and packaging engineers.

    Similar Closer Equipment

    162051 - S Series Closer

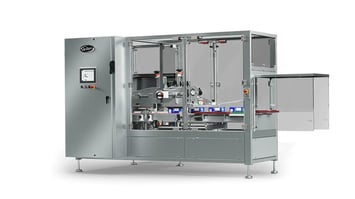

    S Series Closer
