Trayfecta G Series

Former

Any Case And Tray Style, Quick Changeover

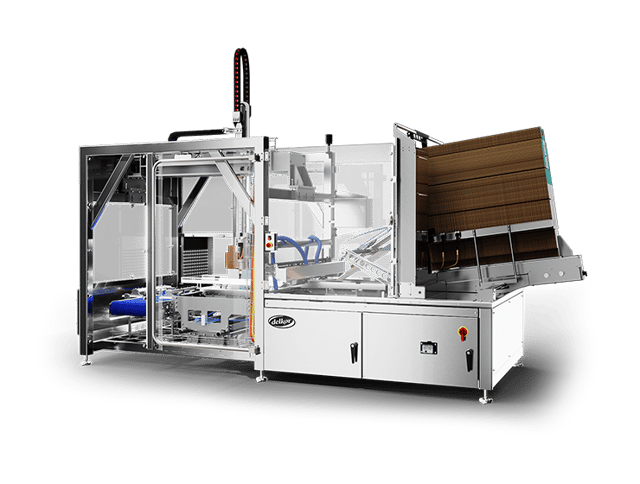

Trayfecta G Series Former 1

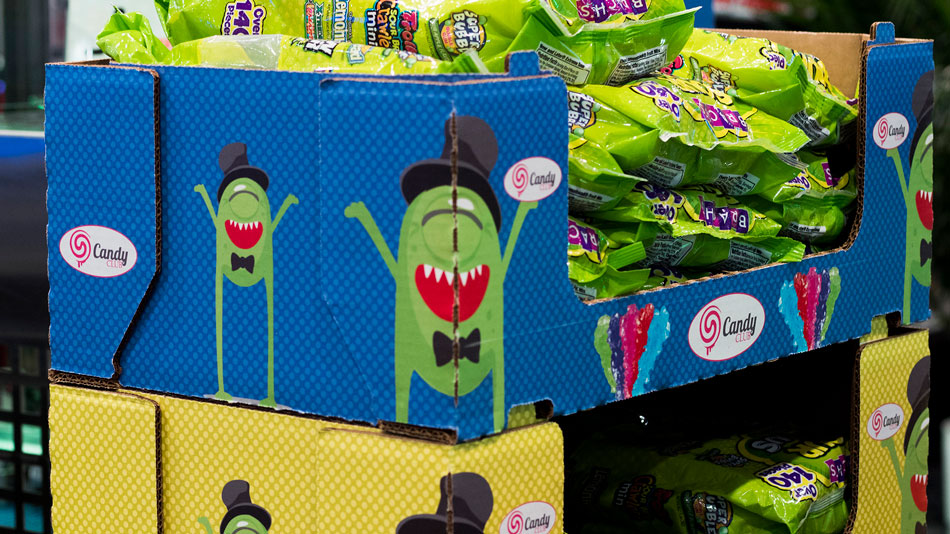

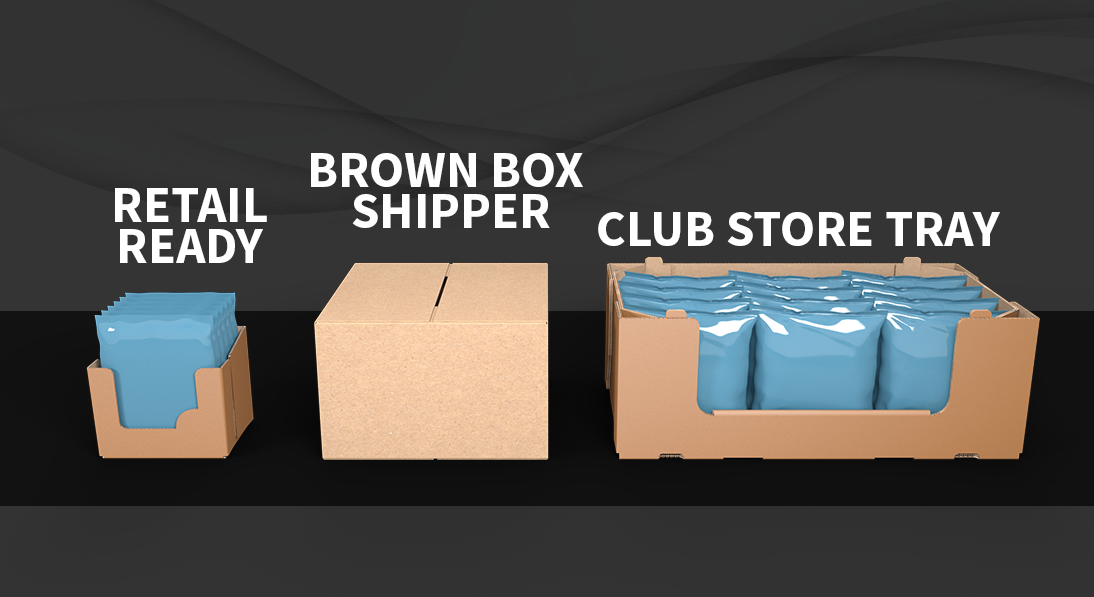

Cabrio Case Retail Ready Packaging 101

CABRIO CASE COMPATIBLE

Retail Ready Packaging has never been so easy. Delkor Cabrio Case® offers perfect shelf appearance for pouches and bags with a machine-cut tray front for maximum shelf impact.

200150 Delkor Club Store Tray Non Branded Chicken Pouches

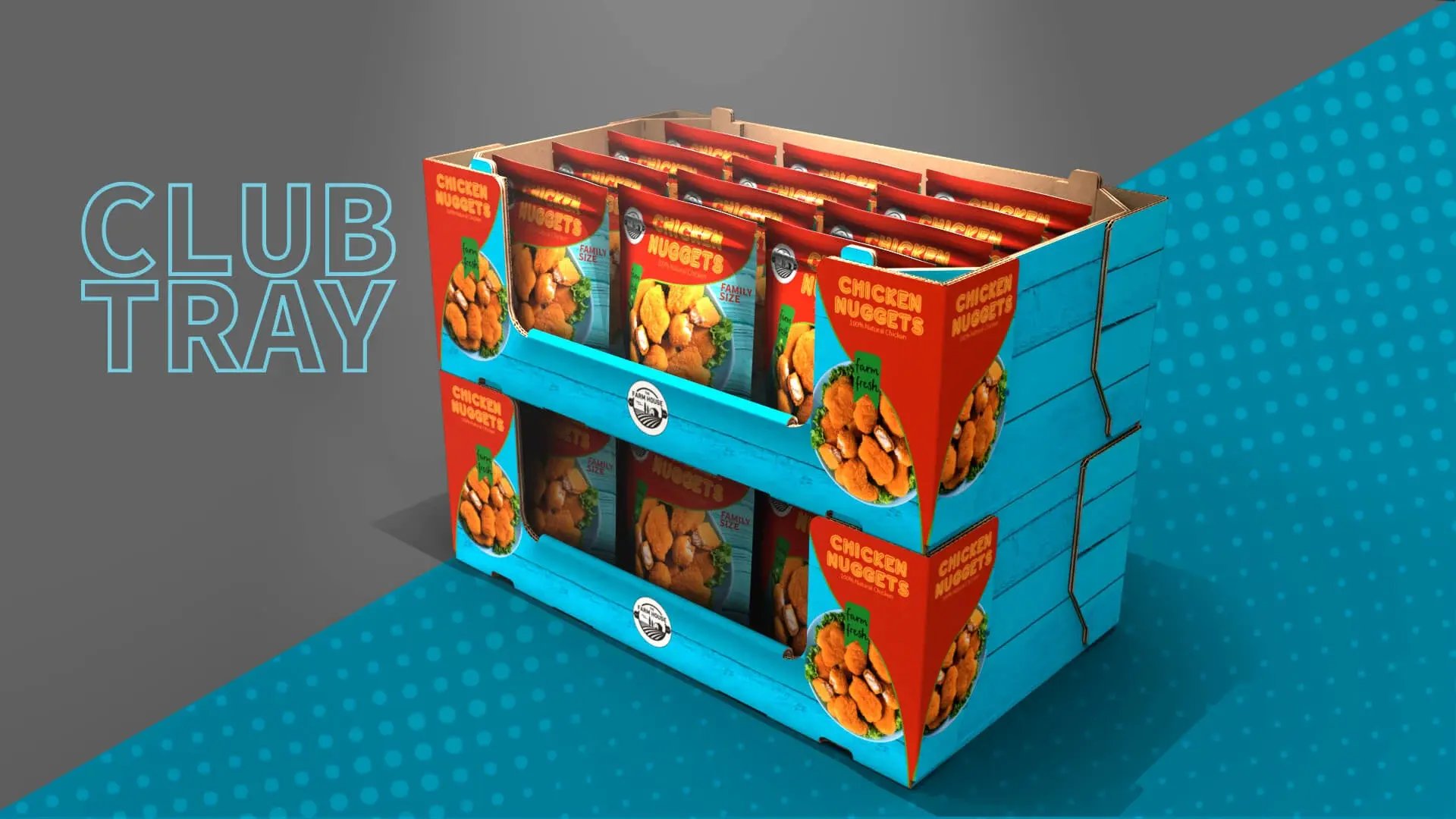

STACKABLE CLUB TRAY READY

With a simple changeover, the Trayfecta G Series Former can also form our robust, stackable club trays for your wholesale products.

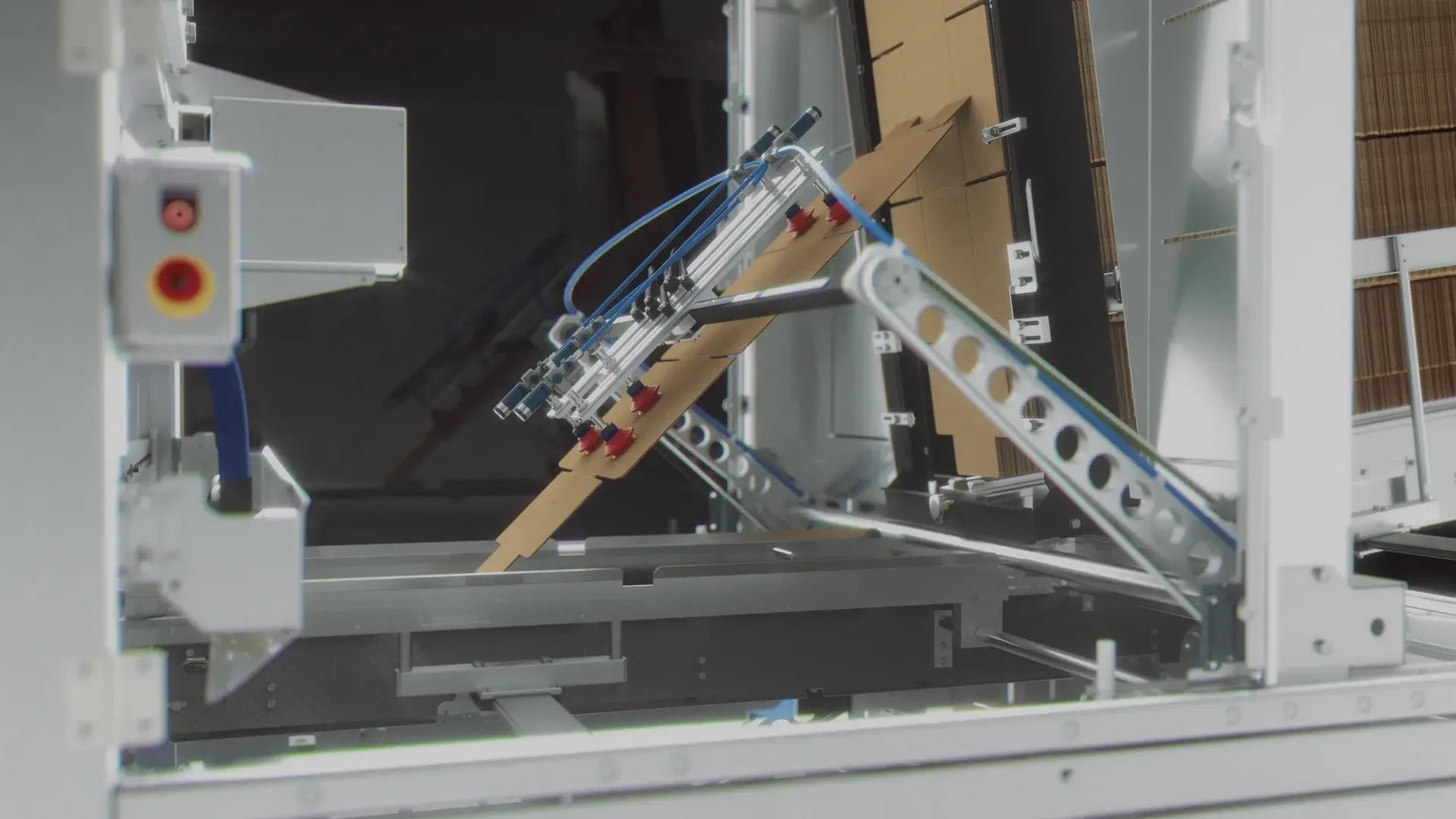

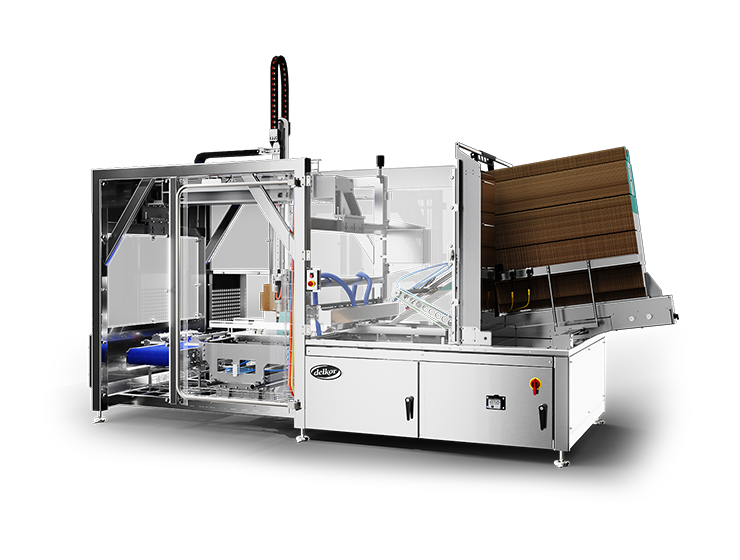

212116- Trayfecta G Series Former

5 AXIS CONTROL

With up to five servo axes, precision, repeatability, and finished package quality are guaranteed. Recipe-driven servo motion minimizes the number of manual adjustments during changeover.

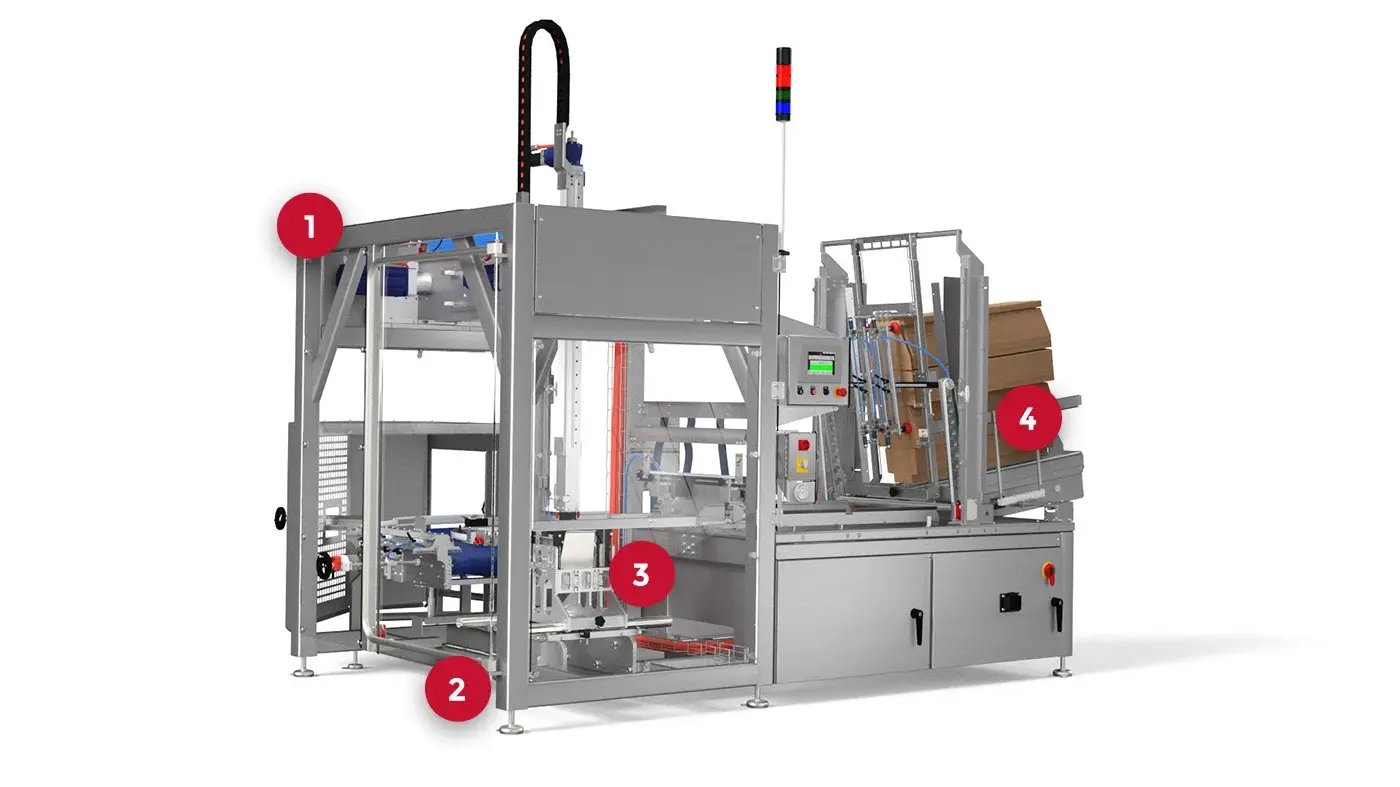

Key Features

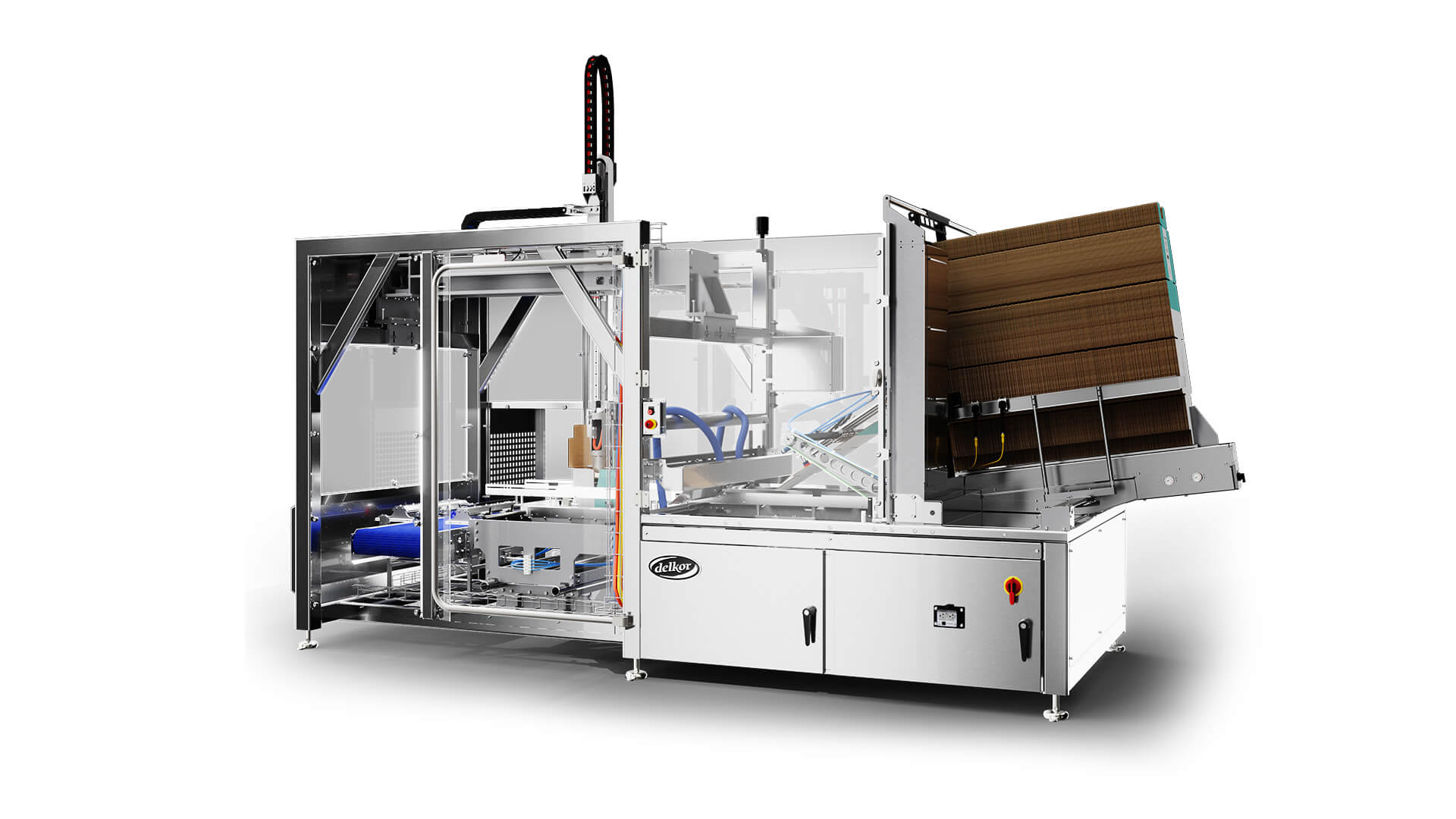

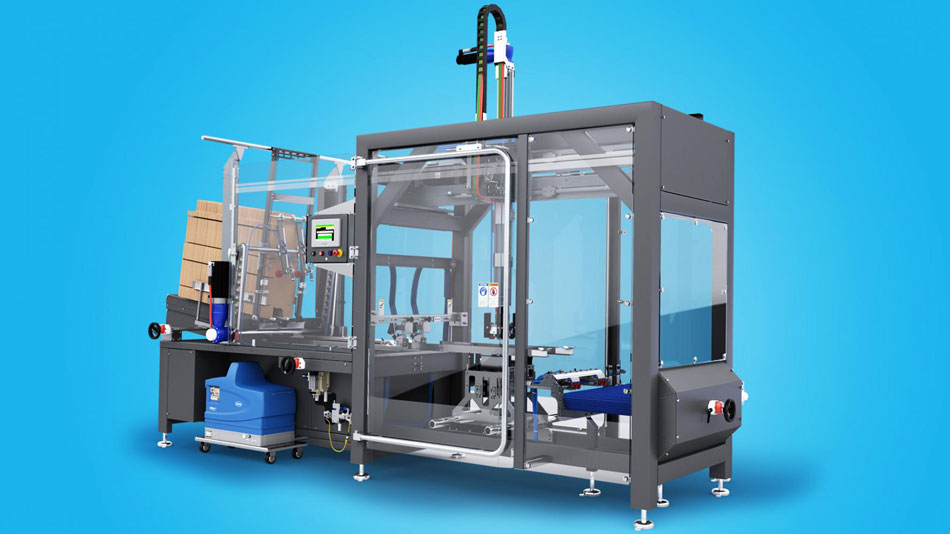

The Trayfecta® G Series Former is our most versatile former. With a 5-axis servo control, it is capable of producing retail ready packages, stackable club trays and standard shipping cases with just a simple changeover.

G-Series-Former-Key-Features-2
1

Layout Flexibility

Available with left, right, or center discharge.
2

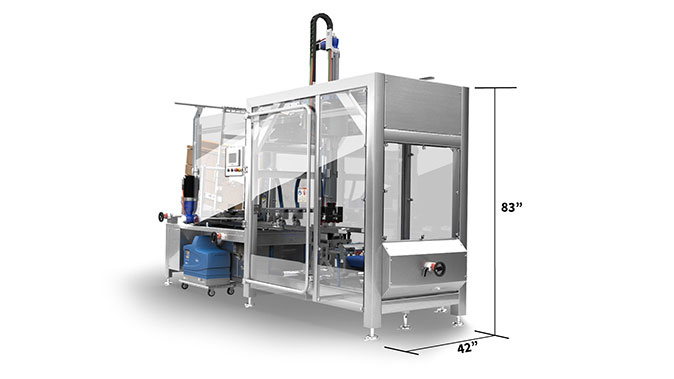

Compact Footprint

The former's compact footprint requires less space on your production floor.
3

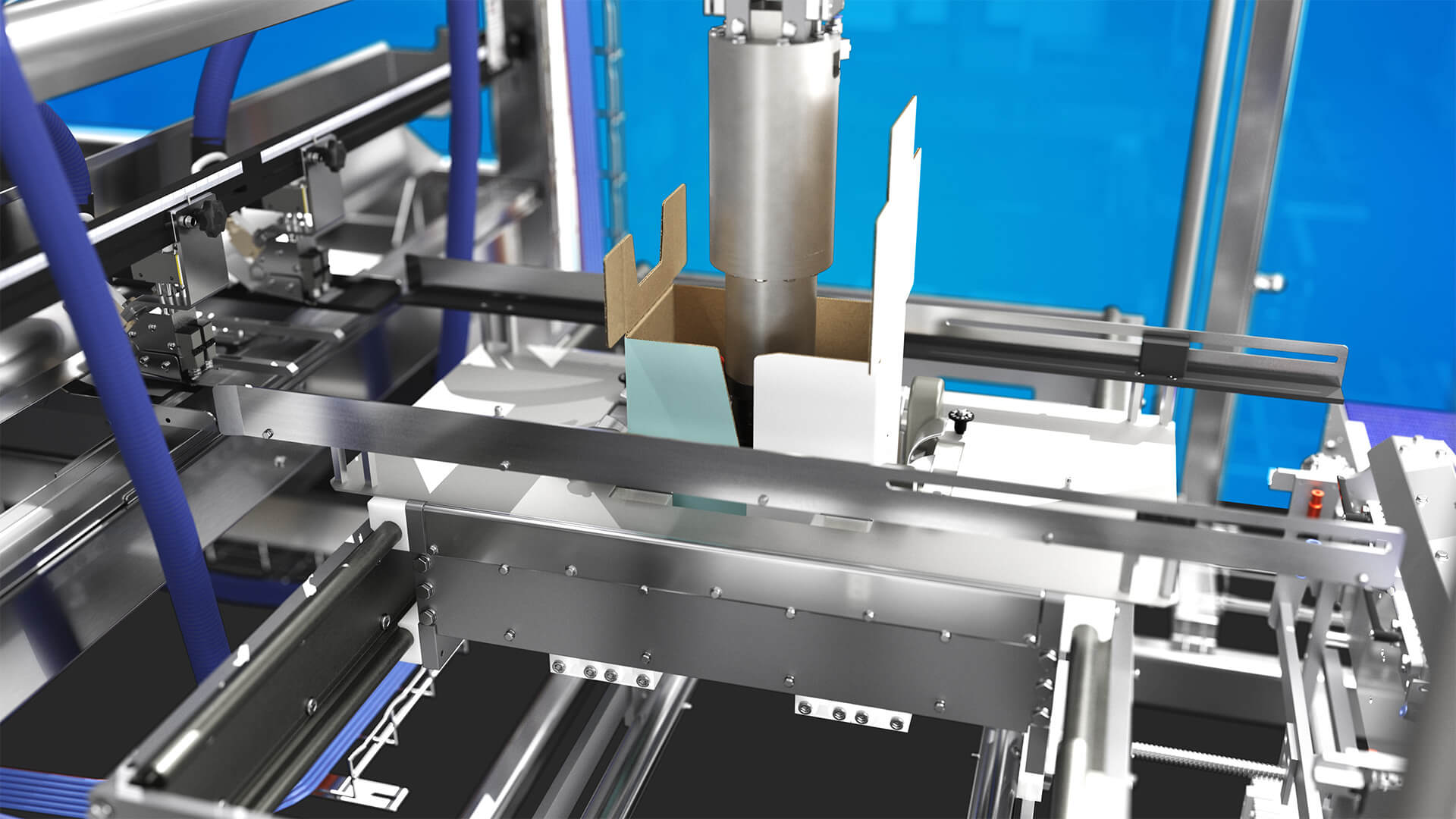

Adjustable Tooling

Our patented adjustable tooling cavity allows for a smooth and speedy changeover between package types.
4

Cabrio Case Compatible

Delkor's Cabrio Case® is free to use with purchase of Delkor's case packing equipment.

Specs

Key Feature

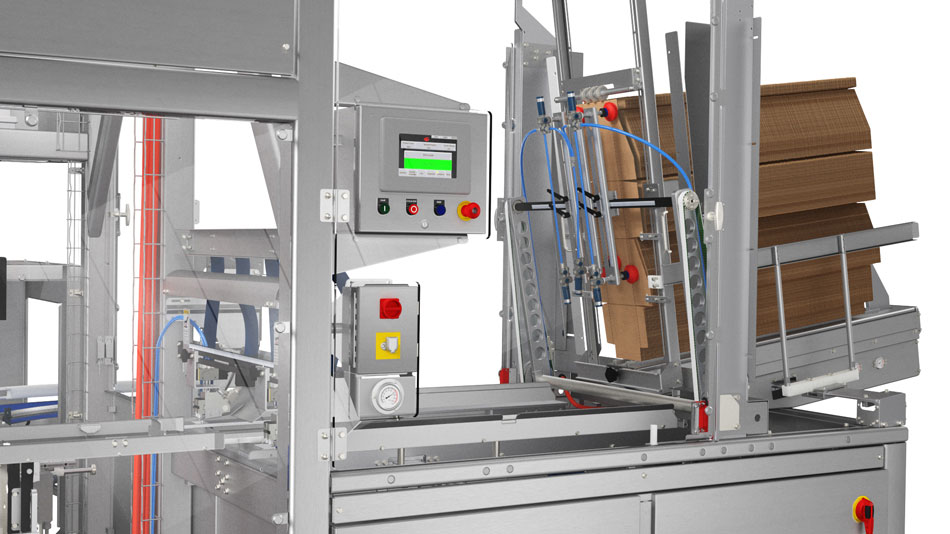

Ergonomic Low Magazine
Key Feature
Tool-Less Changeover
Layout
Right Hand/Left Hand Counter Flow or Through-Flow

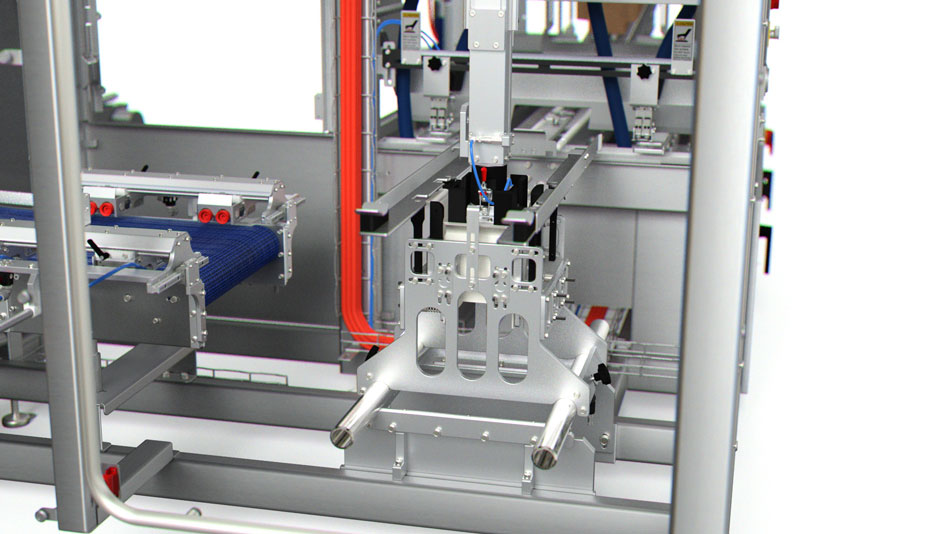

Gantry Discharge
Positively Places Cases onto Conveyor Surface
Gantry Orientation
Optional Case Discharge Rotate is Recipe Driven
Gantry Elevation
Wide Range of Discharge Elevation Options
System PLC
Allen-Bradley Compact Logix
System HMI
Allen-Bradley Panelview 1000
Servo Motors
Allen-Bradley VPL or VPF (food grade)
Safety System
Category III
Enclosure Panel
NEMA 12 (Painted), NEMA 4 (SS) or NEMA 4X(SS)
Enclosure Separation
Voltage Separation Standard (High/Low)
Panel Cooling
Vortex, Heat Exchanger or Air-Conditioner
Utilities - Power
480v 60hz 3ph
Utilities - Air
15 SCFM @ 80PSIG
Weight
2,700 lbs
Length
15’ 0” (4,570 mm)
Width
3’ 7” (1,120 mm)
Height
8’ 3” (2,515 mm)
Frame Materials
Stainless Steel or Painted Carbon Steel
Magazine
Extended Magazine Length

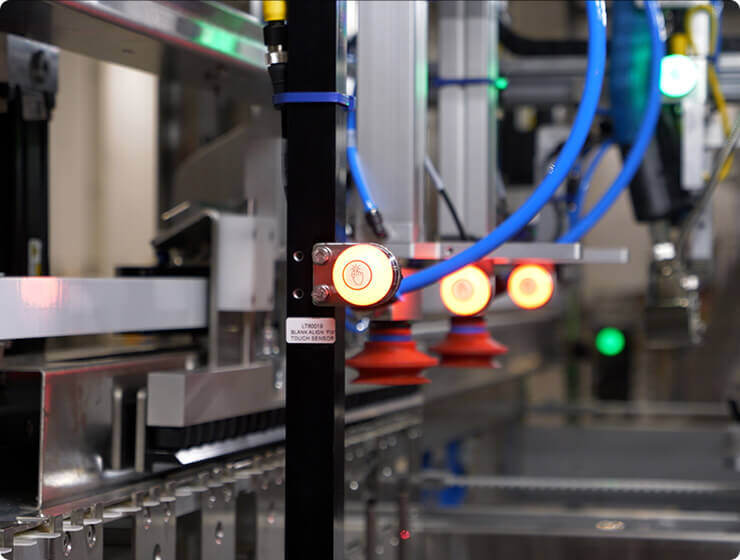

Status Glow
Bright Internal LED Status Lights

See it in action

The Trayfecta G Series Former is perfect for integration with downstream robotics or hand-load systems. The recipe-driven discharge orientation allows the cases to be conveyed to downstream equipment in the optimal position for any application.

Delkor can work with you to design the case, and they have the capability to provide you samples of the case with graphics on. It’s like having a material company and a packaging systems company in one building.

Wilberto Torrez-Ortiz, Packbrain

Free package samples in 48 hours!

Our in-house CAD table and full-time packaging engineer enable us turn around printed case samples within 48 hours! These samples can be branded and tailored to meet the requirements of your marketing department and packaging engineers.

Similar Forming Equipment

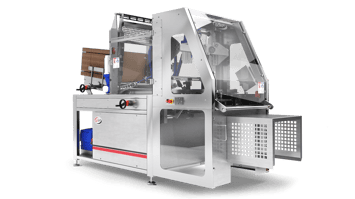

Trayfecta S Series Former

Trayfecta S Series Former

High Speed Cartons, Cases, & Trays

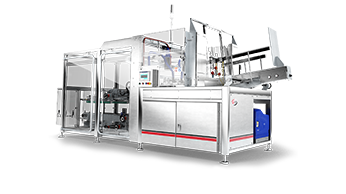

Trayfecta RS Series Former

Trayfecta RS Series Former

Form Die Cut Trays, Cartons, & Cases

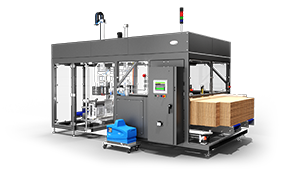

Trayfecta J Series Former
