MSP Series

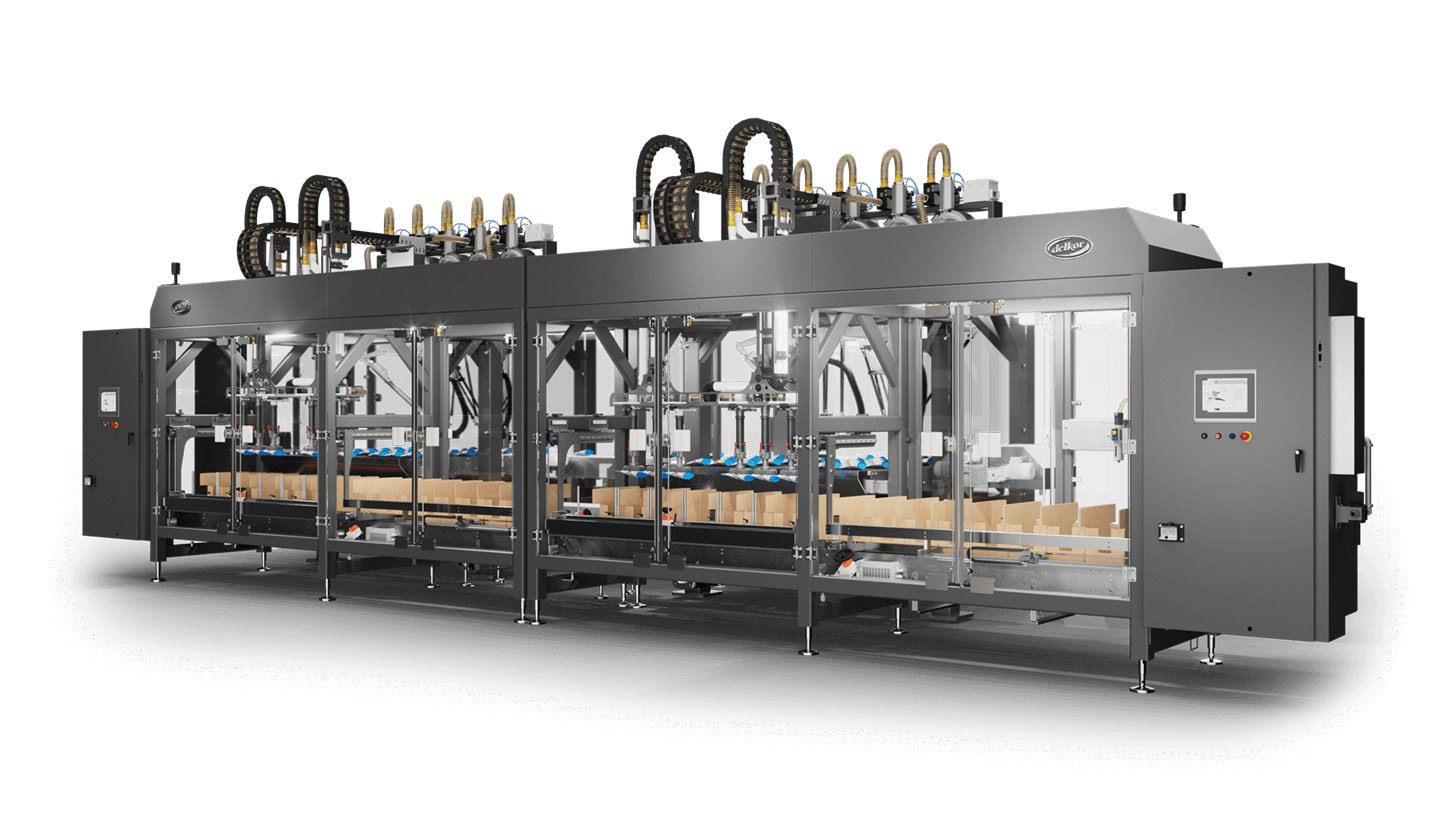

Case Packer

Higher payload and speed capabilities in case packing and retail ready packaging.

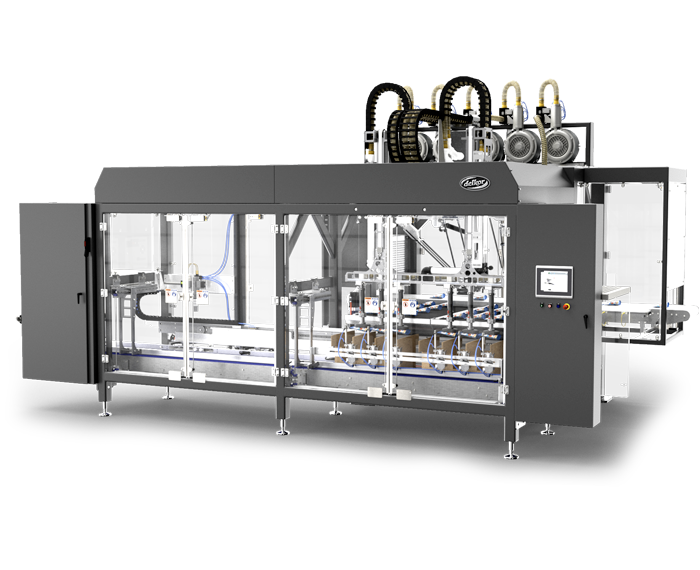

Case_Packer_700x570_1

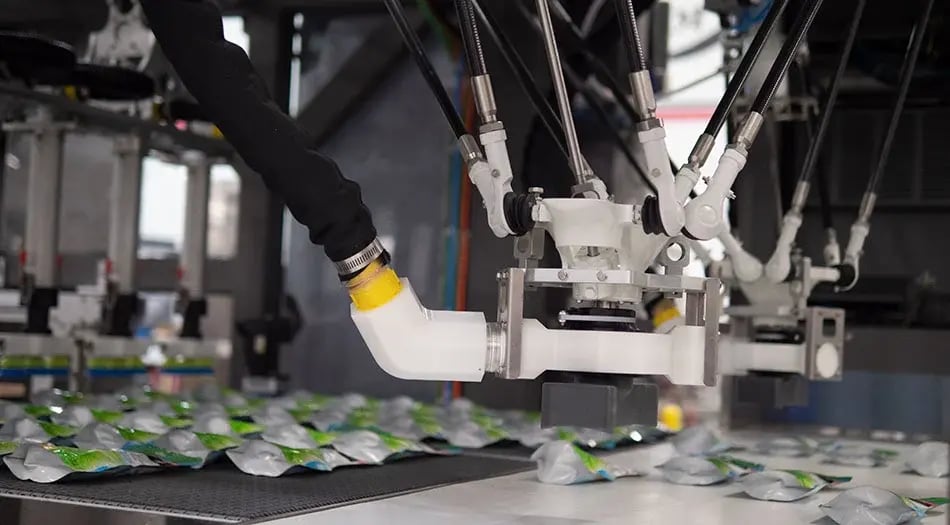

AFFI-Con-MSP-Header-Mobile

EFFICIENT & ADAPTABLE

Vision guided infeed corrects for pouch misalignment while two axes H-bot gantry picks the pouches and loads into retail-ready packaging and other shippers.

MSP-m Social

High Speed, High Capacity

Packs pouches and bags up to 3 lbs, at speeds of up to 200 per minute and a maximum case output of 50 cases per minute.

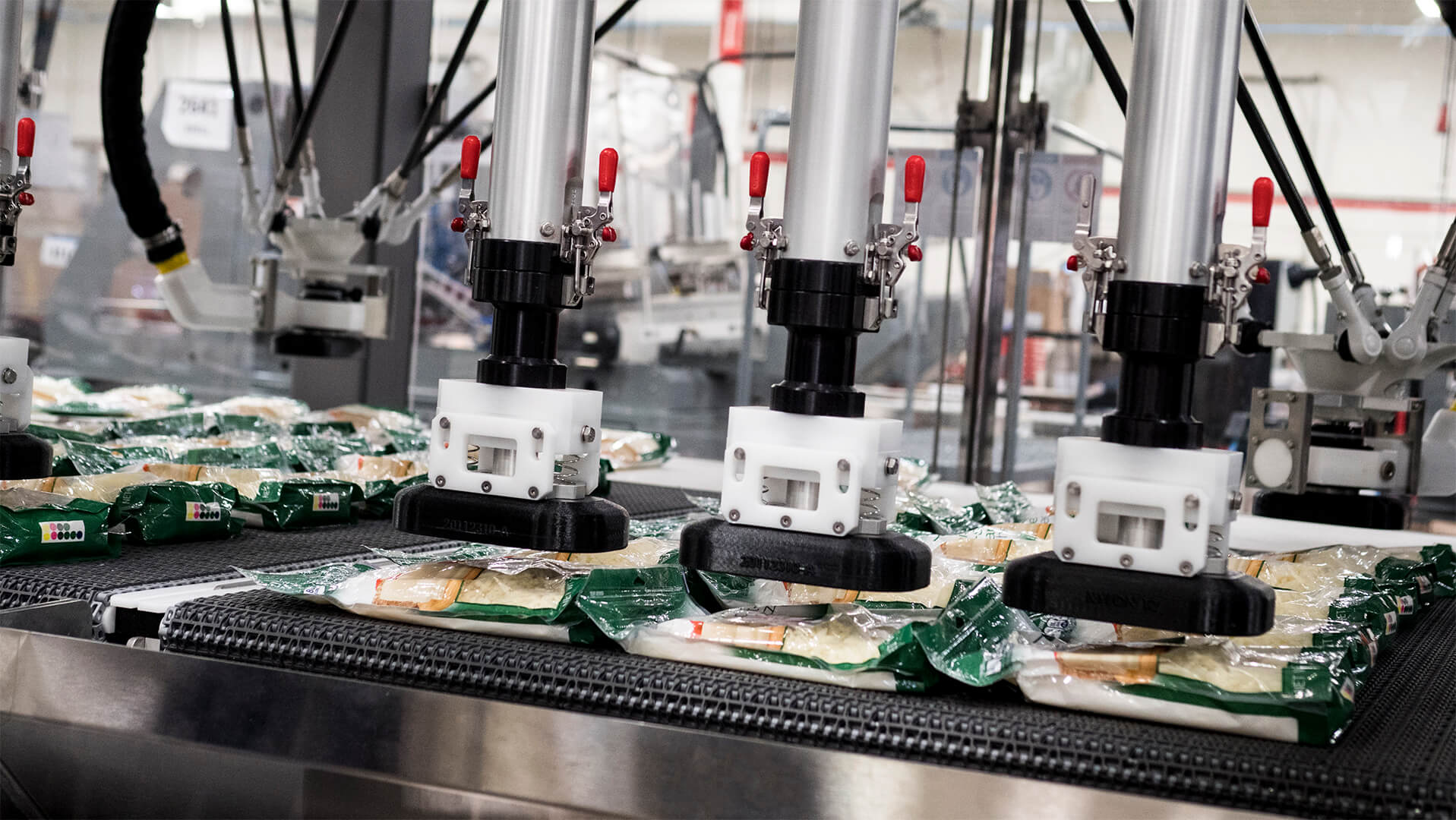

182445 - MSP Series Case Packer - Schreiber - Dairy

TAILORED FOR YOUR PRODUCT

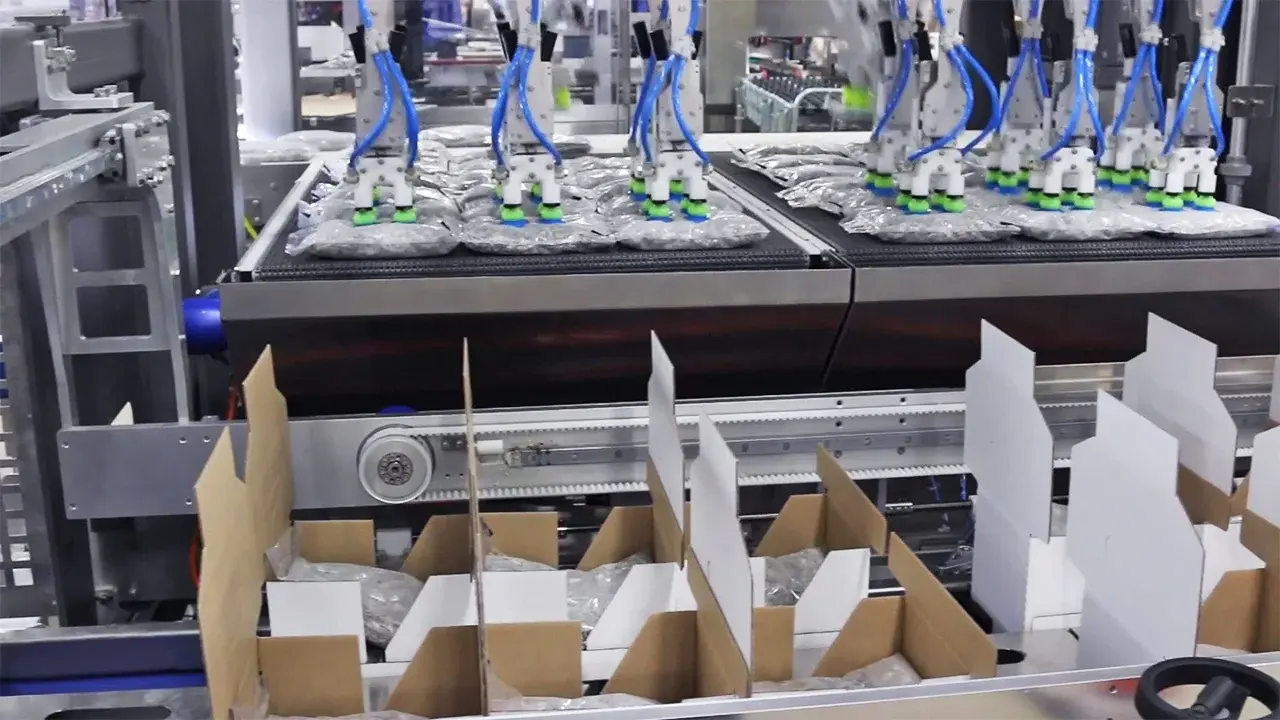

Bags and pouches can be packed to lay flat, shingled or even nested. The MSP Series Case Packer can be designed to suit your product.

Key Features

What makes the MSP Series Case Packer Delkor's most popular solution for high speed pouch packing?

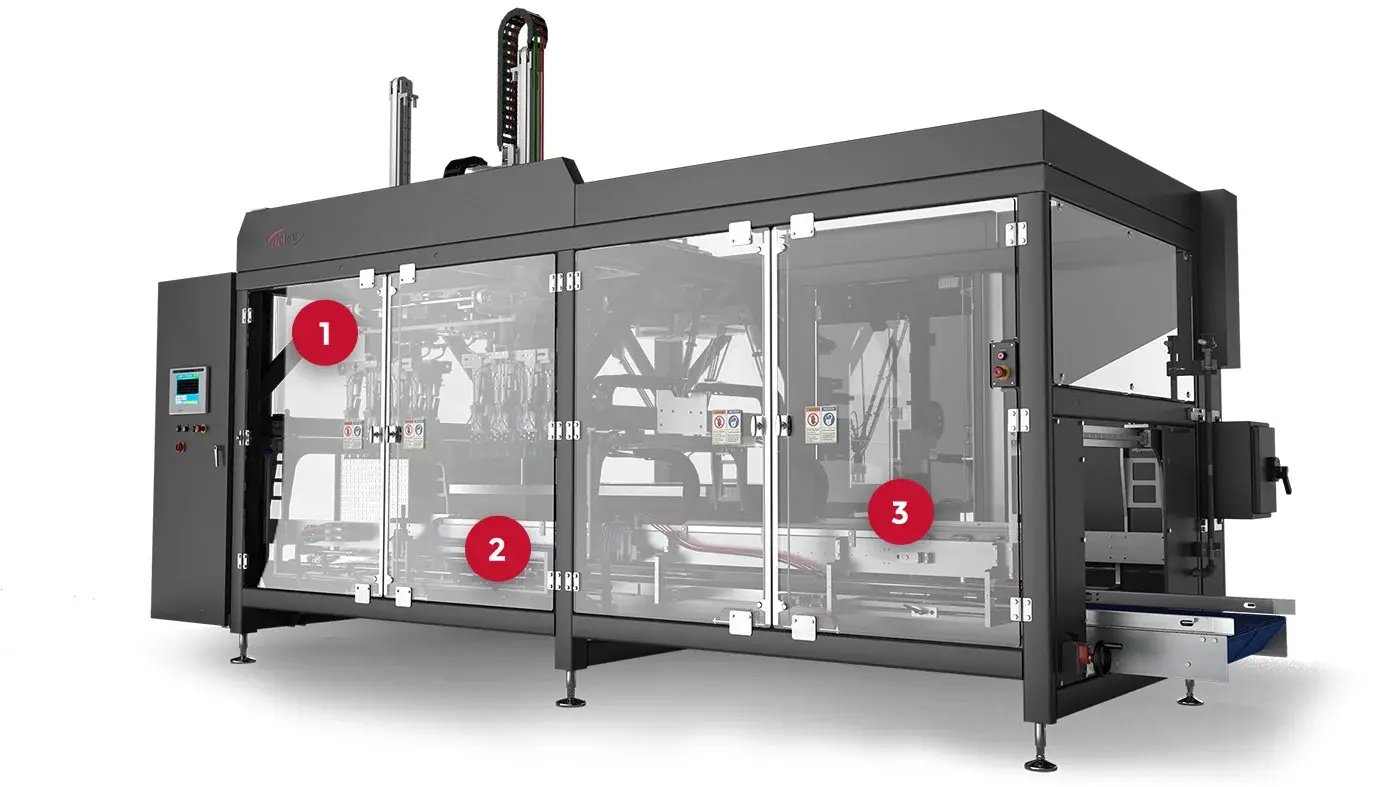

MSP-Series-Case-Packer-Key-Features7
1

High Speed Pouch Packing

Speeds of up to 200 per minute with vision based adjustment for skewed products.
2

Simple Tool-Less Changeover

Performs a full line changeover in 8 minutes or less.
3

Cabrio Case Compatible

Delkor's Cabrio Case® is free to use with purchase of Delkor's case packing equipment.

Specs

Key Feature
No Collation Chains/Buckets or Case Index Chain
Layout
Right Hand/Left Hand Counter Flow or Through-Flow
Robot Models
Fanuc M2iA
Vacuum
Busch Central Vacuum Blowers
Robot Pick Method
Vision Pick and Place
System PLC
Allen-Bradley Control Logix
System HMI
Allen-Bradley Panelview 1000
Safety System
Category II or III
Main Enclosure
NEMA 12 or NEMA 4X(SS)
Fanuc Cabinet
NEMA 1, NEMA 12, NEMA 4(SS) or NEMA 4X(SS)
Camera
NEMA 12 (Painted), or NEMA 4X(SS) w/ Air Blast
Panel Cooling
Vortex, Heat Exchanger or Air-Conditioner
Utilities - Power
480v 60hz 3ph
Utilities - Air
20 SCFM @ 80PSIG
Weight
8000 lb (3600 kg)
Length
16’8”(5080 mm) *Configuration Dependent
Width
10’6” (3195 mm)
Height
10’ 10” (3300 mm)
Frame Materials
Powdercoated Carbon Steel or Stainless Steel
Reject Bins
Stainless Steel Bins on Casters
Status Glow
Bright Internal LED Status Lights

See it in action

The MSP Series Case Packer packs pouches and bags up to 2 lbs. It can operate at speeds of up 200/minute. With the ever-changing retail environment, this loader offers flexibility for the future with the capability of placing a variety of different sizes pouches and bags into multiple case types and configurations.

Delkor can work with you to design the case, and they have the capability to provide you samples of the case with graphics on. It’s like having a material company and a packaging systems company in one building.

Wilberto Torrez-Ortiz, Packbrain

Free package samples in 48 hours!

Our in-house CAD table and full-time packaging engineer enable us turn around printed case samples within 48 hours! These samples can be branded and tailored to meet the requirements of your marketing department and packaging engineers.
