Performance

Bottle Packer

Speed and Flexibility for Every Bottle Size

A front view of Delkor's Performance Bottle Case Packer
A close-up image of Delkor's Bottle Case Packer

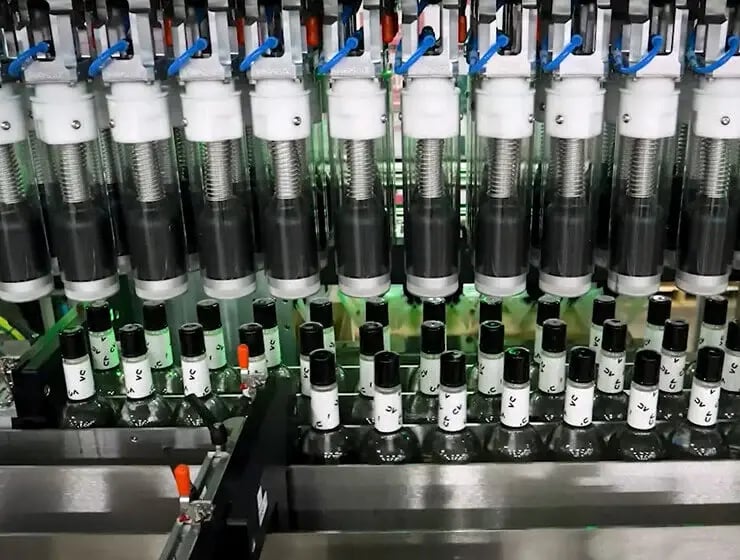

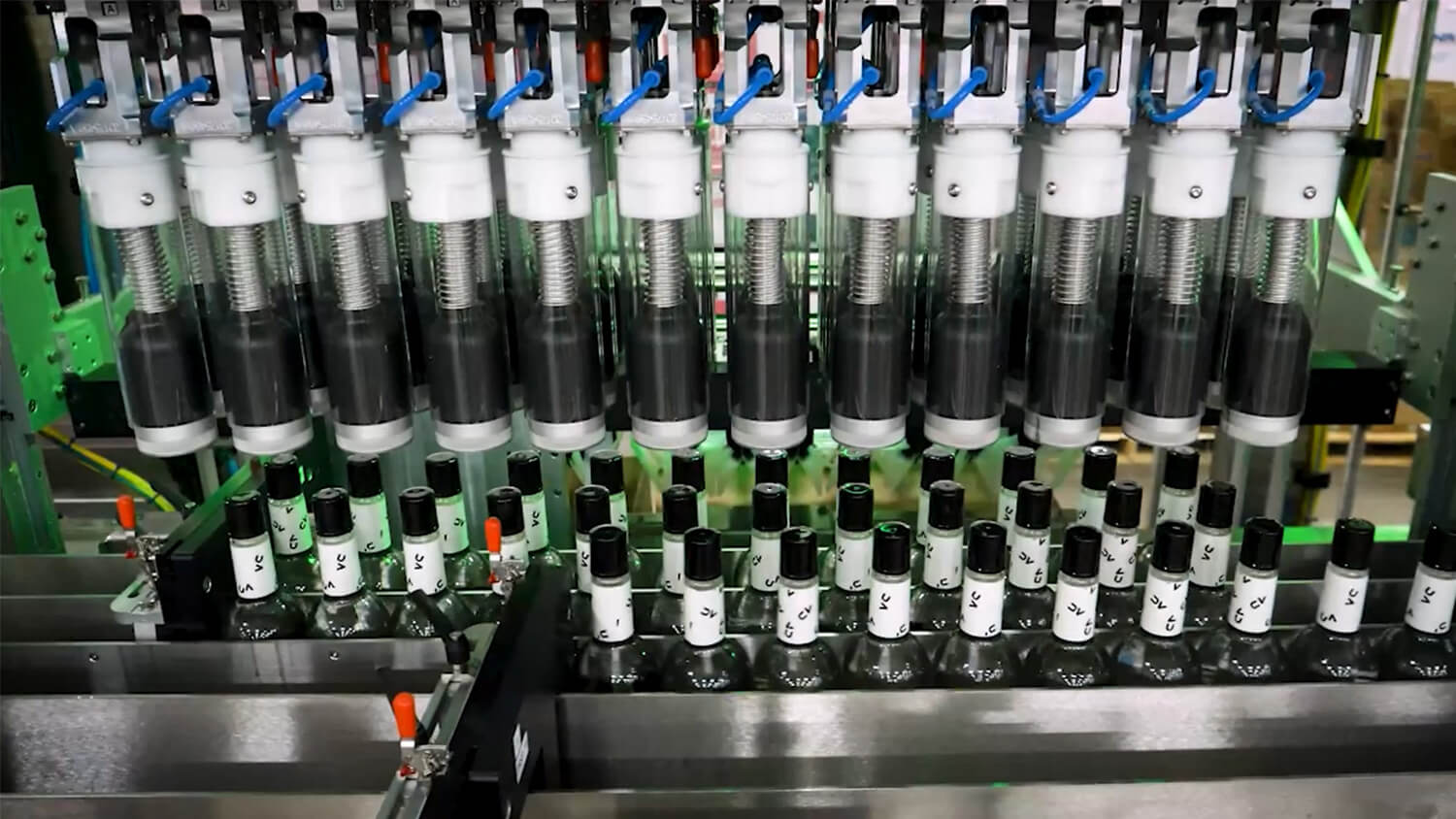

Controlled Collation

Twin pickup collation areas pack the power of two case packers into one compact machine, reaching speeds up to 500 bottles per minute.

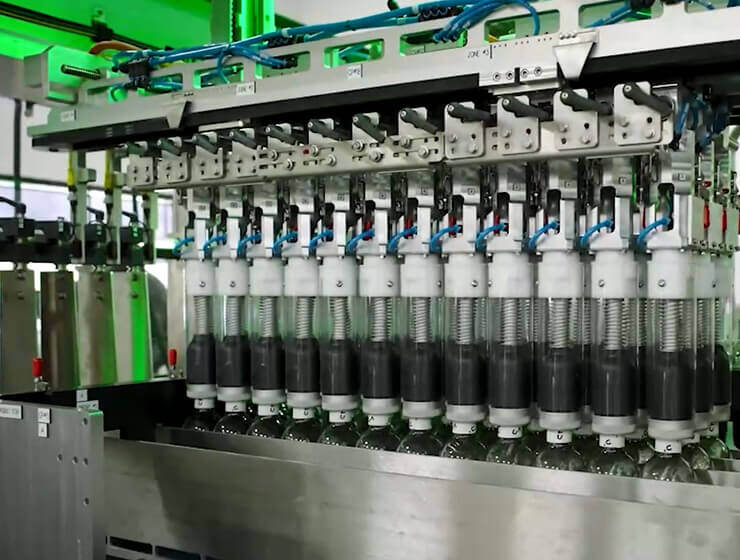

A close-up image of Delkor's Bottle Case Packer

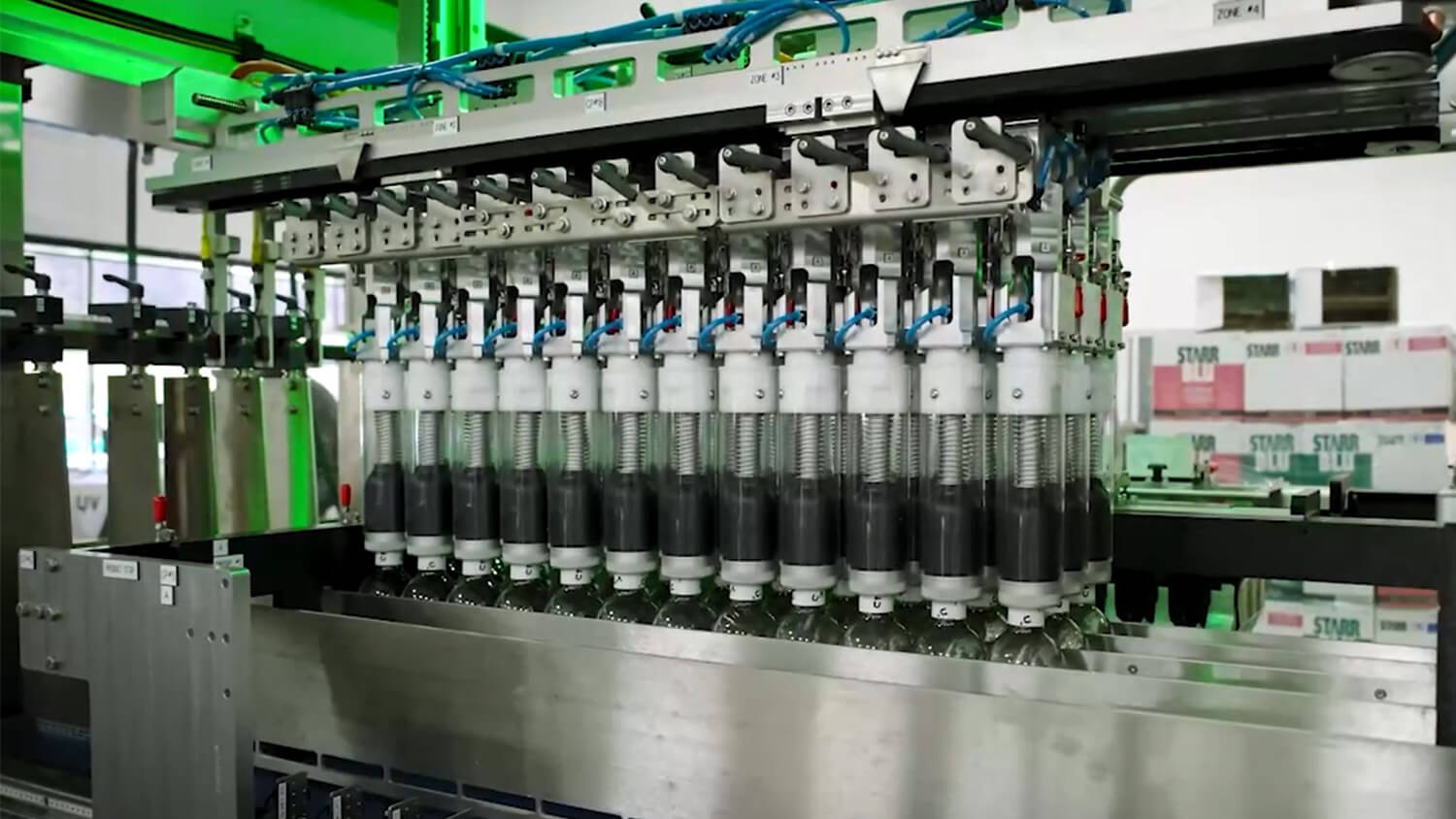

20 Unique Sizes & Pack styles

Delkor's Bottle Case Packer meets nearly any need with its ability to run bottle sizes from 3.75 ML to 1.75 L. Changing from sizes is quick and easy with 8-minute, tool-less changeovers.

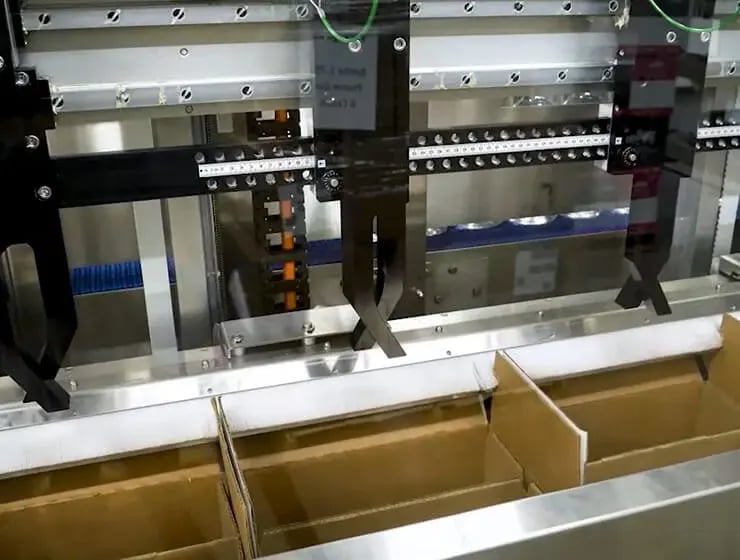

An image of Delkor's Bottle Case Packer RSC Reshipper System

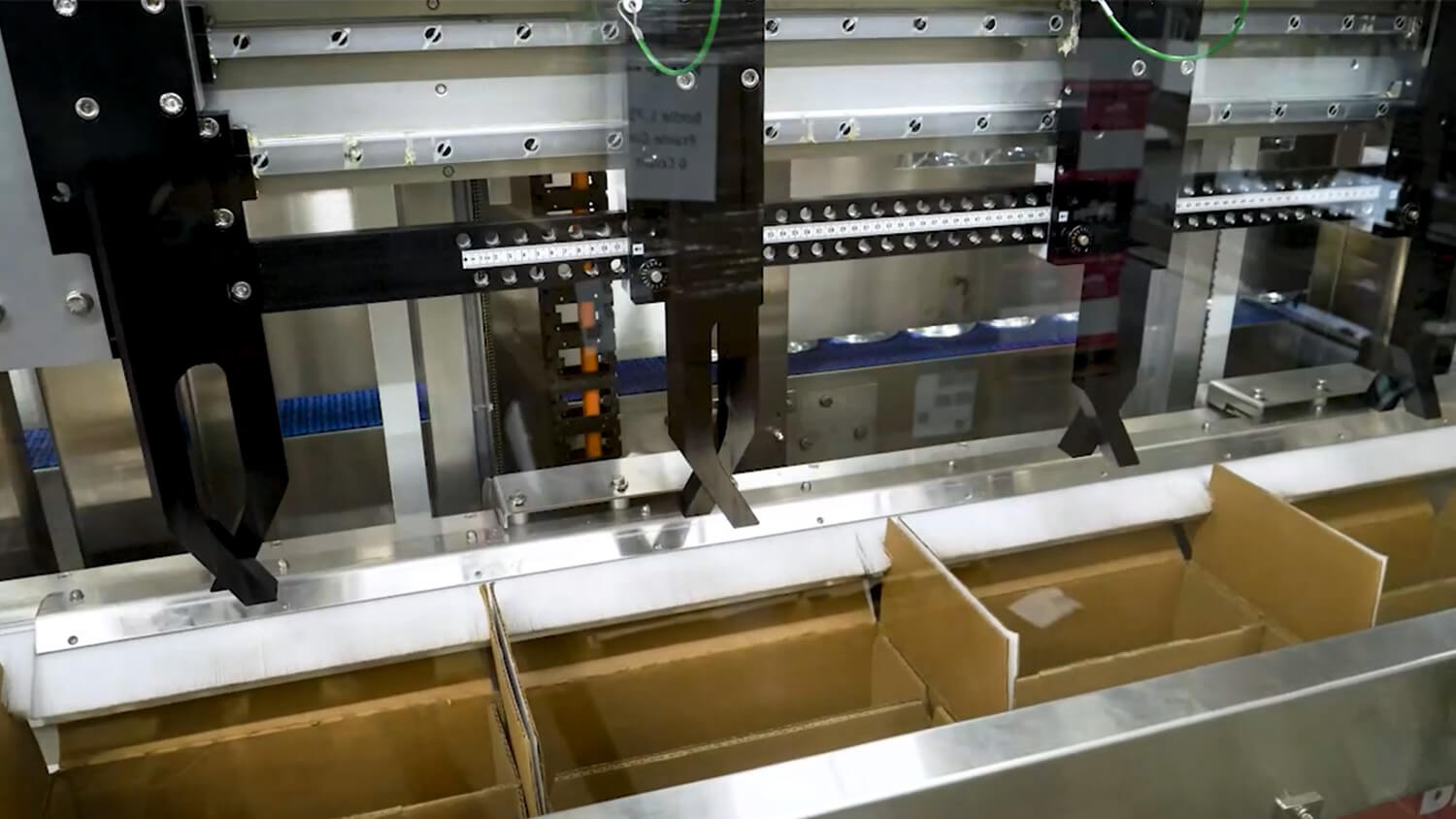

RSC Reshipper System

Save more, waste less on corrugated material with the Bottle Case Packer's RSC Reshipper System. Early inspect/reject sequence keeps lines moving to achieve speeds up to 50 cases per minute. Dedicated funnel guides and full bottle placement to bottom of case minimize breakage over standard drop packers.

Key Features

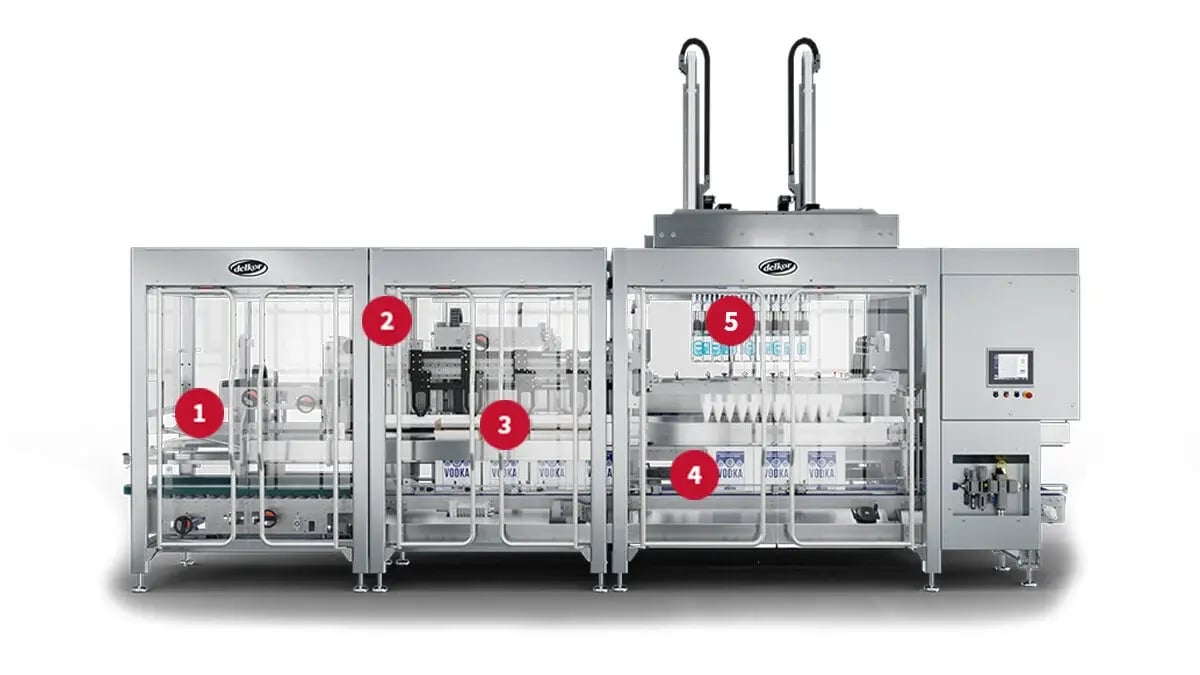

A front view of Delkor's Performance Bottle Packer with key features identified using red numbered circles
1

Controlled Bottle Collation

Facilitates gentle handling even at high speeds to protect bottles and labels
2

High Speed Packing

Reaches speeds up to 500 bottles/minute
3

20 unique sizes and pack patterns

Handles nearly any bottle size from 3.75 ML to 1.75 L
4

RSC Reshipper System

Reuse corrugated shippers with repack speeds up to 50 cases per minute
5

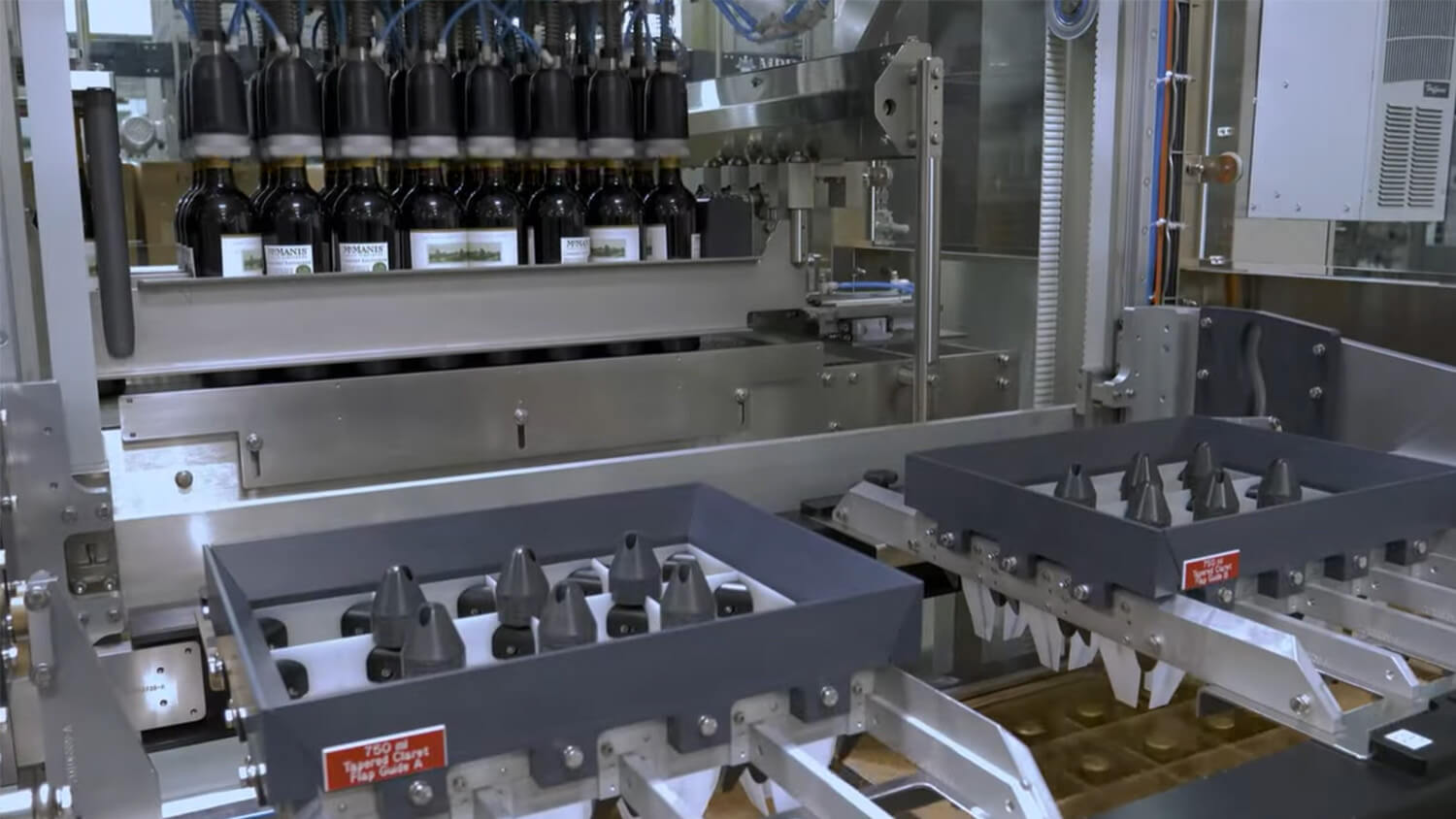

Crash Detection Technology

Eliminate product damage and breakage with in-plane crash detection

Specs

Package Types
Tray, Cases, Pads (Spot-Pak), RRP, Club Store
Max Rate
50 Packages Per Minute
Discharge Orientation
Inline, Counterflow, Right Hand, Left Hand
Machine Hand
Right Hand, Left Hand
Frame Materials
Painted Carbon Steel, Stainless Steel, Tubeless Stainless Steel
Servo-Motors
Allen-Bradley VPL or VPF (food grade)
System PLC
Allen-Bradley Compact Logix
System HMI
Allen-Bradley Panelview Plus 7 10"
Safety System
Category III
Enclosure - Main Panel
Painted (NEMA 4), Stainless Steel (NEMA 4X)
Enclosure - Panel Cooling
Vortex, Heat Exchanger, or Air-Conditioner
Adhesive System
Nordson, Graco, Robatech
Length
20 ft (6,096 mm)
Width
6 ft, 2 in (1,880 mm)
Height
7 ft, 6 in (2,290 mm) (with gantry down)
Utilities - Power
480 VAC, 50-60Hz, 60 Amps
Utilities - Air
20 SCFM @ 80 PSIG
Status Glow
Bright Internal LED Status Lights
Additional Feature
Platinum Line Machine (Modular Design)
Additional Feature
Tool-Less Changeover
Additional Feature
Patented Technology
Additional Feature
Machine Integration
Additional Feature
Reject Bin Option
Additional Feature
Crash Detection

See it in action

Delkor's Performance Bottle Packer uses twin pickup collation areas to pack the power of two case packers into one compact machine, reaching speeds up to 500 bottles per minute. This case packer meets nearly any size and package need with its ability to run bottle sizes from 3.75 ML to 1.75 L and 8-minute, tool-less changeovers.

The Delkor Machinery has been awesome to work with. The thing I like the most is how easy it is to change over from different pack sizes. If we’re running back to back different pack sizes, it only takes a few minutes with tool-less changeovers, which makes it very easy and efficient for our maintenance staff.

Packaging Manager, Great Western Brewing

Free package samples in 48 hours!

Want to see exactly how your printed materials will look? Delkor's Package Lab will work with you to brand and tailor printed case samples to meet the requirements of your marketing department and packaging engineers. The best part? You'll have samples in-hand in less than 48 hours.

Complete Your Line

Every project calls for something different - Delkor has the widest range of packaging equipment that can match any application.

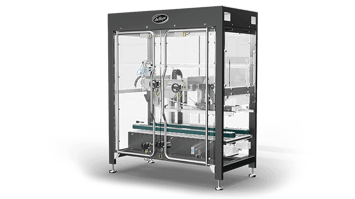

A side profile view of Delkor's CS Series Sealer

CS Series Tape or Glue Sealer

Clean and Precise Sealing for RSC or HSC Cases

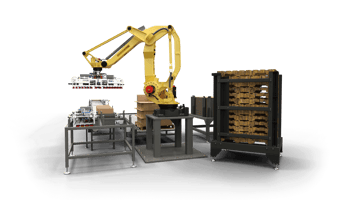

A profile view of a Delkor Palletizing System
