Trayfecta® S Series

Former

High-Speed Cartons, Cases & Trays

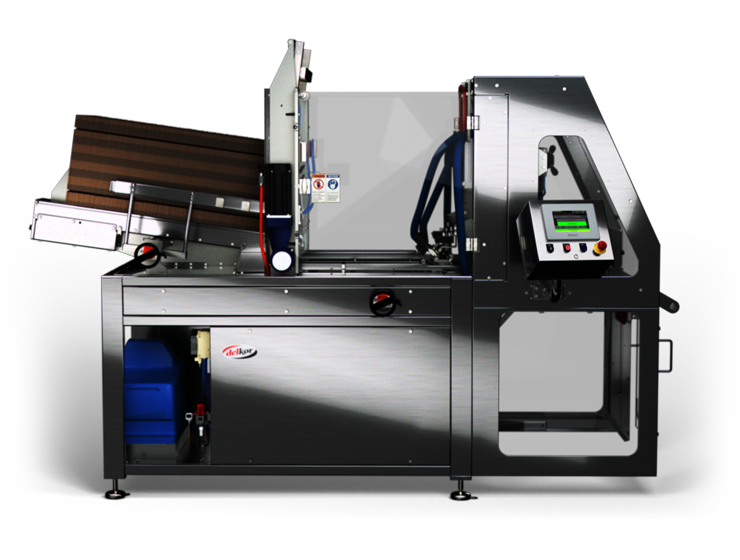

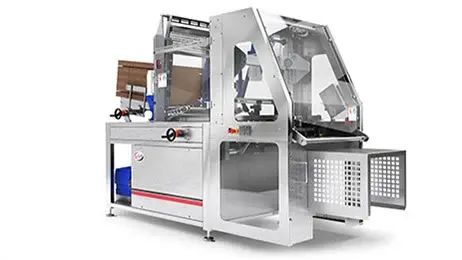

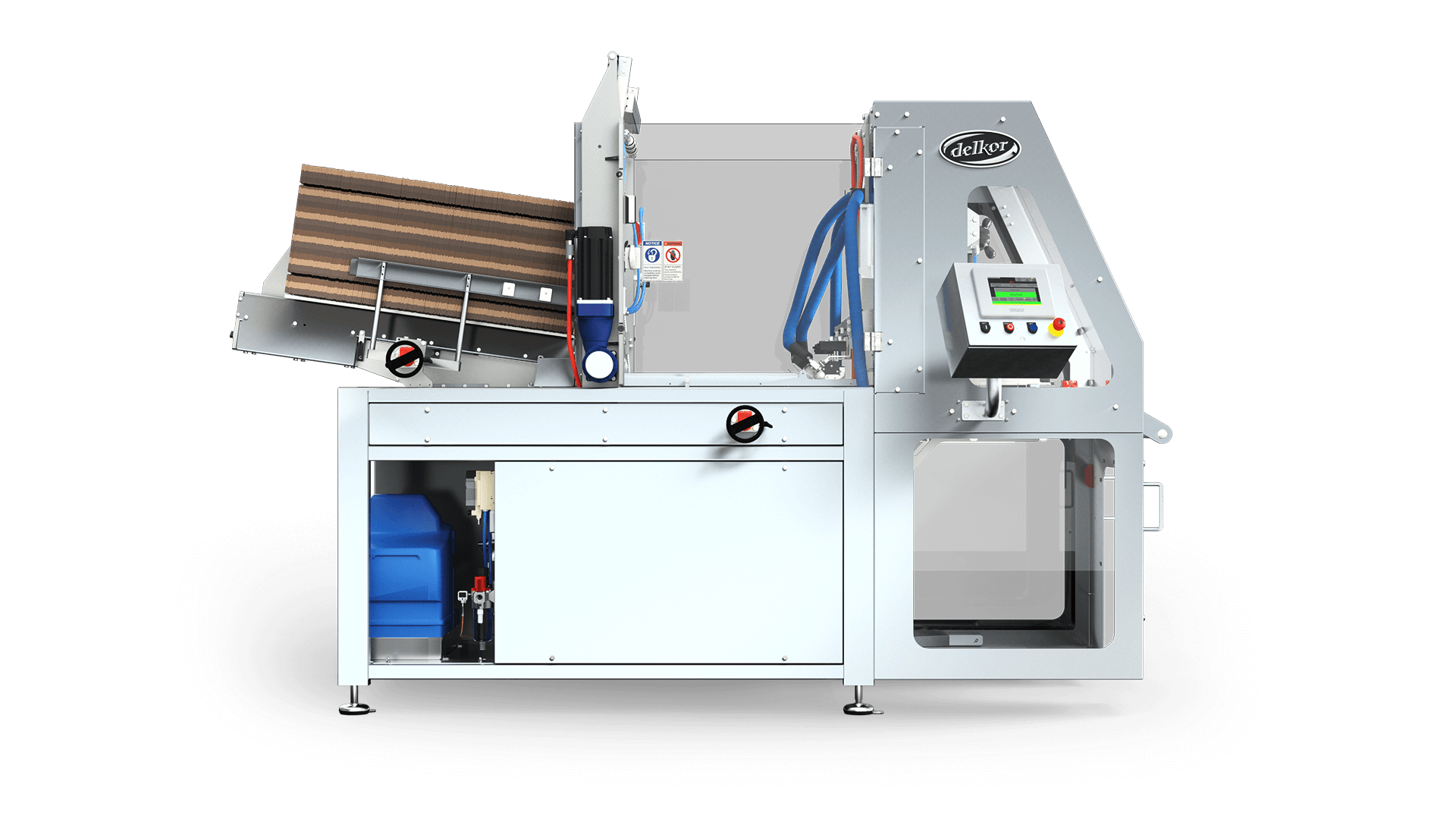

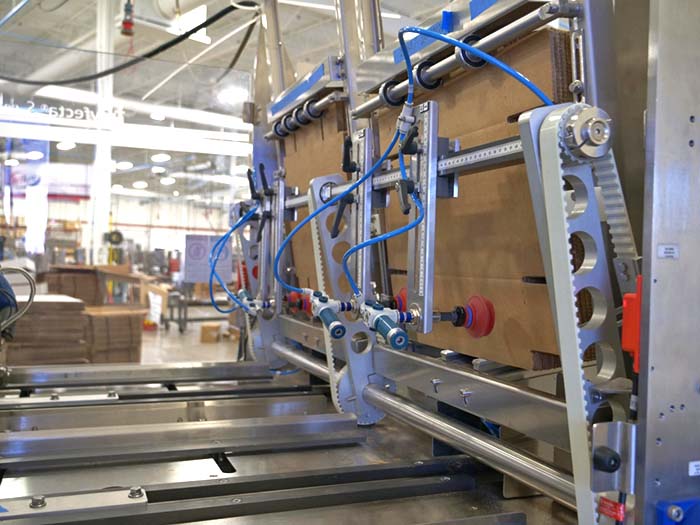

A close-up image of Delkor's Trayfecta S Series Former

Quick & Adaptable Cartoning

Delkor's Trayfecta® S Series former maintains versatility and durability to achieve high-volume carton, case and tray erecting. With speeds up to 150 cartons per minute and less than 3-minute changeovers, it's easy to see why this is one of our most popular cartoning machines.

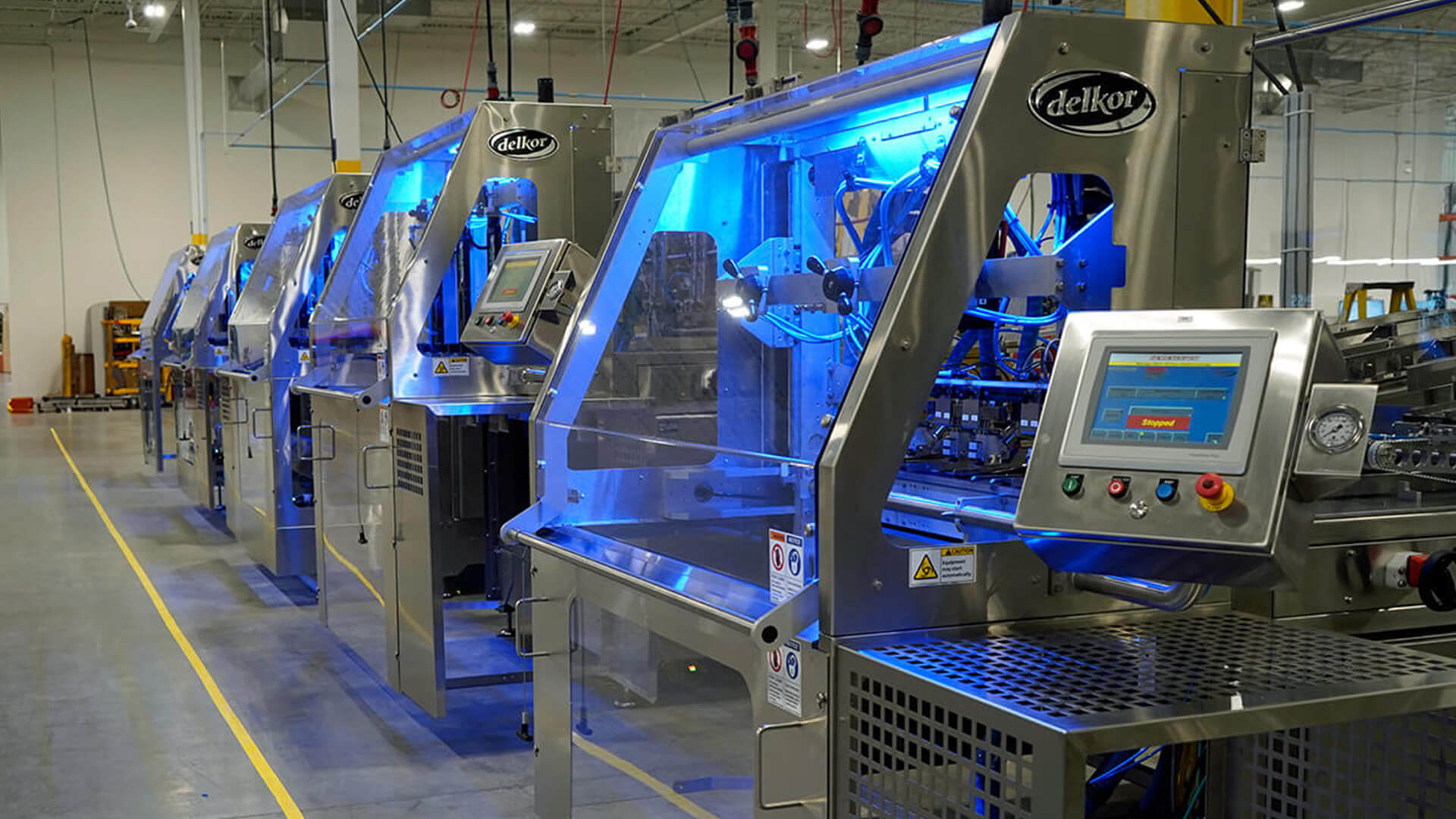

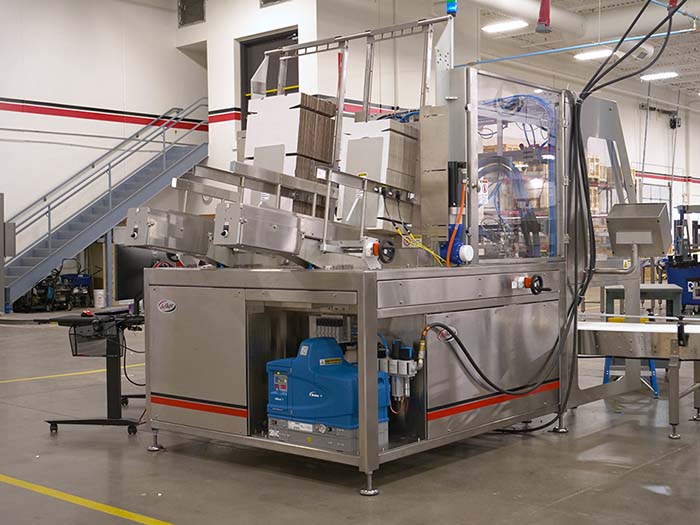

A photograph of multiple Delkor Trayfecta S Series Formers lined up in production

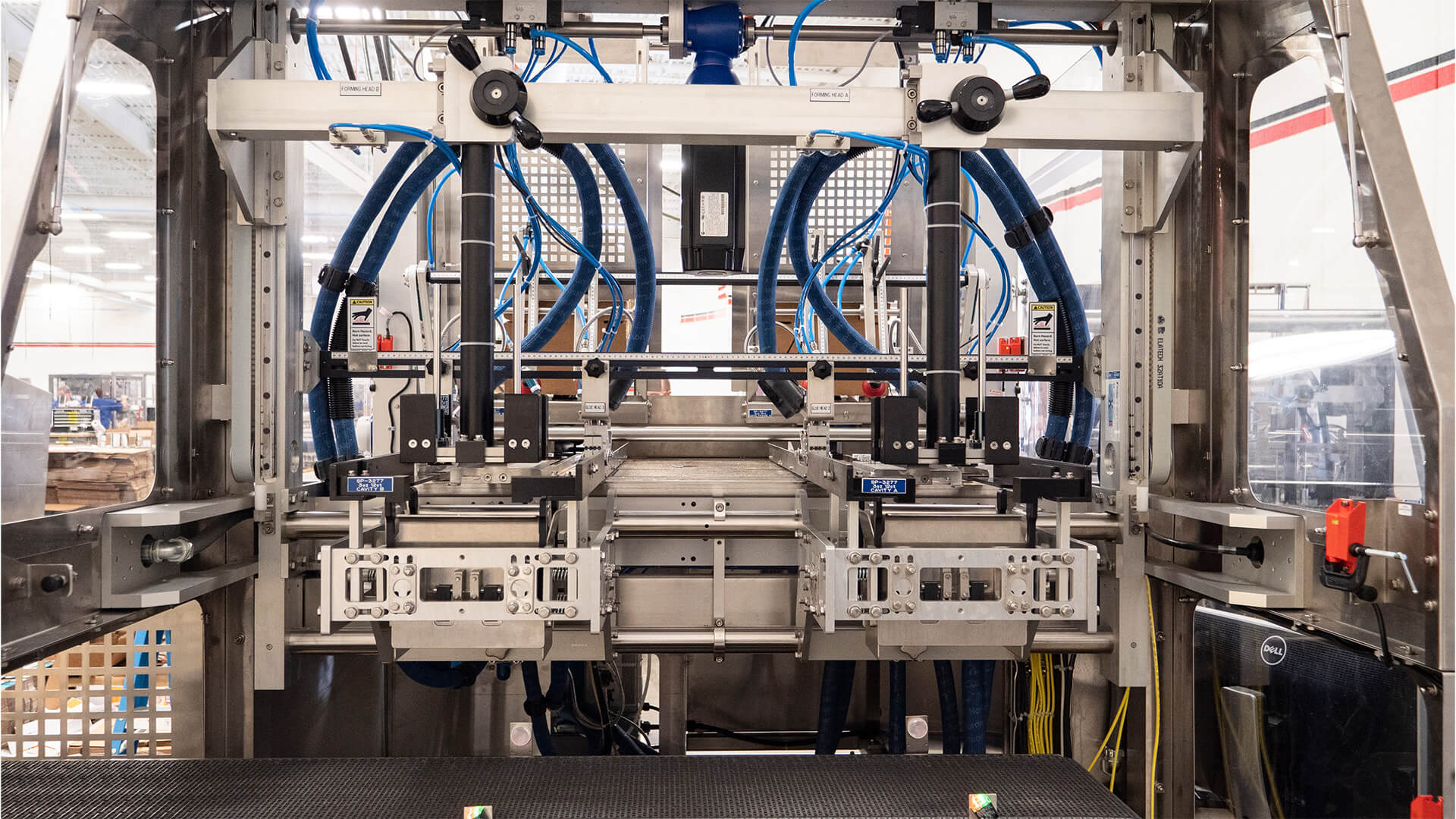

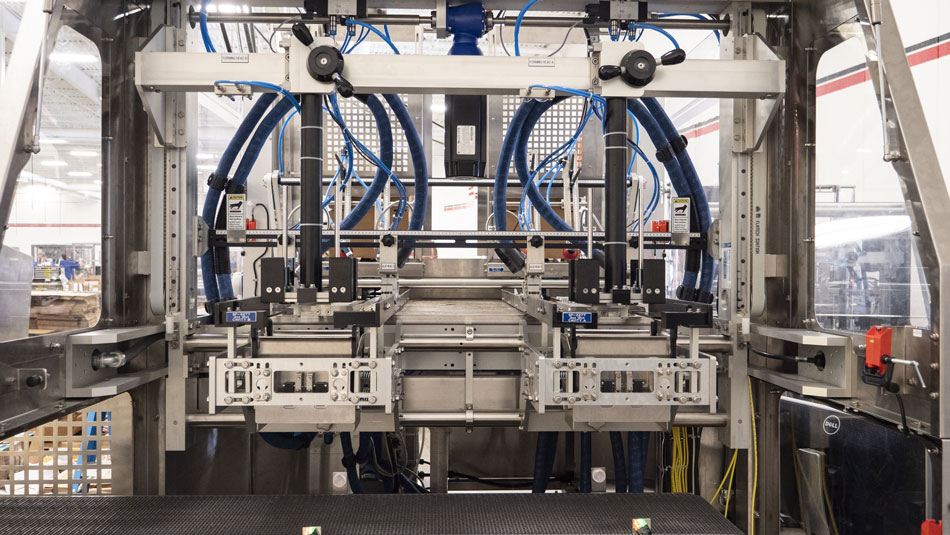

1-4 Forming Head CONFIGURATIONS

Select the line speed that works best for your operation. Three axis servo motors optimize motion for all carton sizes and machine strokes, maximizing speed capacity. The Trayfecta S Series Former easily produces cartons, top-load trays, and cases for even the most advanced packaging equipment lines.

Rapid Delivery

By optimizing the engineering and assembly process of the Trayfecta S Series Former, Delkor can customize, build and ship faster than ever. Delkor's Rapid Delivery Program features a 14 week lead time from purchase order to shipment.

Learn More

Key Features

The Trayfecta S Series Former has one of the widest forming ranges in the industry with the ability to form cartons, cases and trays from small paperboard cartons to oversized corrugated shippers.

High-Speed Forming

Add heads as needed to meet any speed requirement

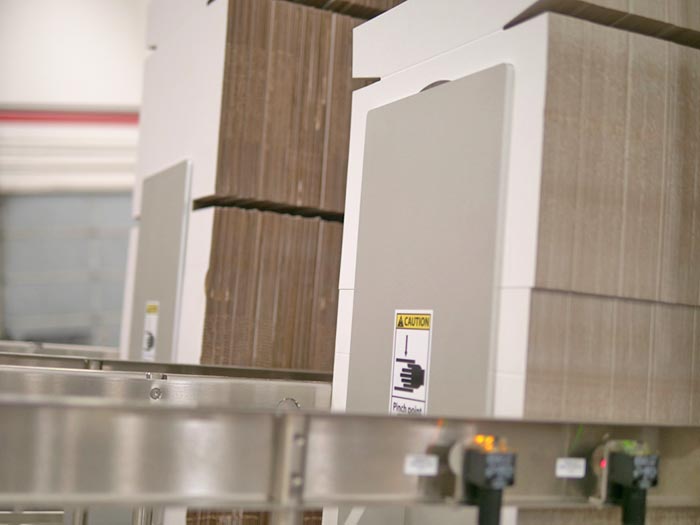

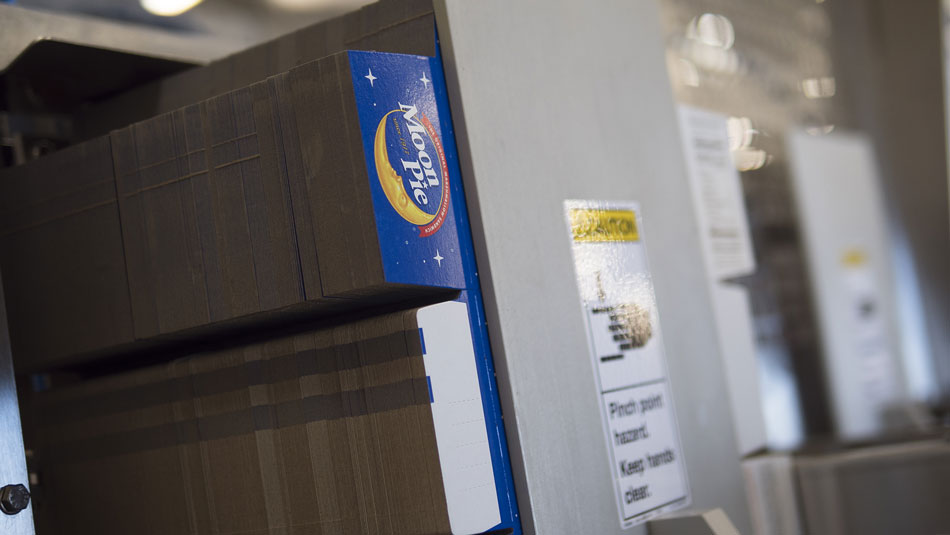

Large Magazines

Refill blanks less often with high-capacity magazines

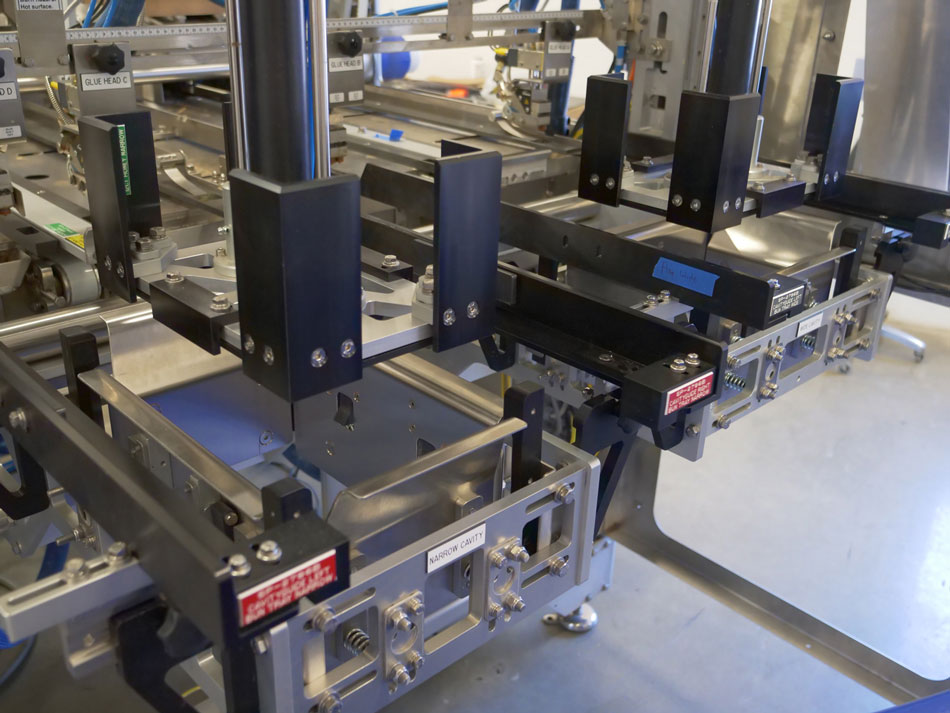

Quick Changeover

Switch between package formats in under 3 minutes.

Form Any Size

Maintain flexibility with a wide range of forming capabilities

Compact Footprint

Save valuable production space with a smaller frame

Specs

3 Min

Changeover

150 Cartons

Max Rate

Package Types

Cartons, Cases, and Trays

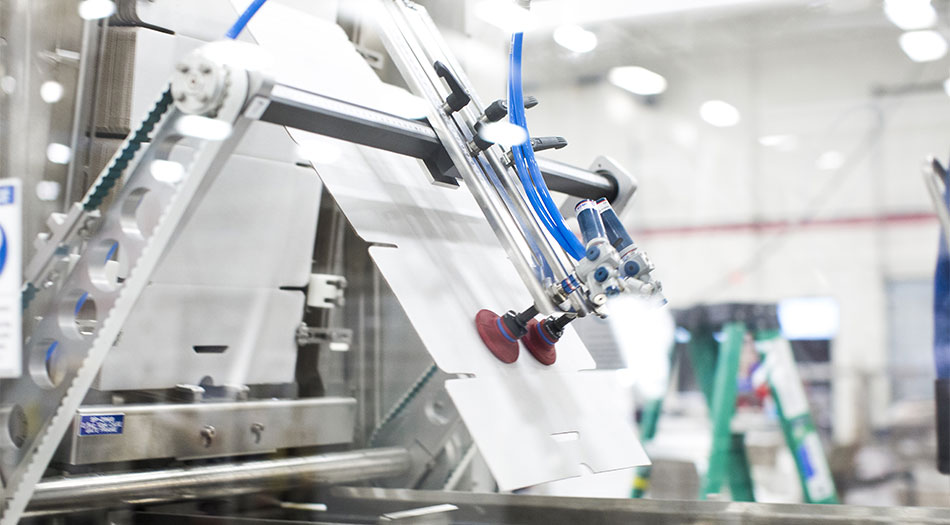

Any Material

Paperboard and Corrugated

View Full Specs

Discharge Orientation

Inline Discharge, Right Discharge, Left Discharge

Machine Hand

Right Hand, Left Hand

Frame Materials

Stainless Steel

Servo-Motors

Allen-Bradley VPL or VPF (food grade)

System PLC

Allen-Bradley Compact Logix

System HMI

Allen-Bradley Panelview Plus 7 10"

Safety System

Category III

Enclosure - Main Panel

NEMA 4, NEMA 4X

Enclosure - Panel Cooling

Vortex, Heat Exchanger, or Air-Conditioner

Adhesive System

Nordson, Graco, Robatech

Length

126 to 152 inches

Width

51 to 95 inches

Height

86 inches

Utilities - Power

480 VAC, 50-60Hz, 30 Amps

Utilities - Air

5 SCFM @ 80 PSIG

Status Glow

Bright Internal LED Status Lights

Download PDF Close

INVEST IN THE BEST

The Trayfecta S Series Former offers industry-leading versatility with the ability to form cartons, trays and cases, including the latest retail-ready package designs. This series of formers run a wide range of sizes and its 3-axis servo motion fuels maximum production rates for all applications. This machine's versatility and capacity help protect your investment for the long haul.

Learn More

When we arrived for the acceptance testing, the equipment was ready to roll, hit our efficiency metrics, was shipped, delivered, and was ready to run even before the line was fully commissioned.

- Matt Brody, Site Engineer at Nature's Bakery

Free package samples in 48 hours!

Want to see exactly how your printed materials will look? Delkor's Package Lab will work with you to brand and tailor printed case samples to meet the requirements of your marketing department and packaging engineers. The best part? You'll have samples in-hand in less than 48 hours.

Get My Free Sample

More Forming Equipment

If the Trayfecta S Series Former isn't what you need, take a look at other available formers from Delkor. Or, reach out to us directly to start a custom build.

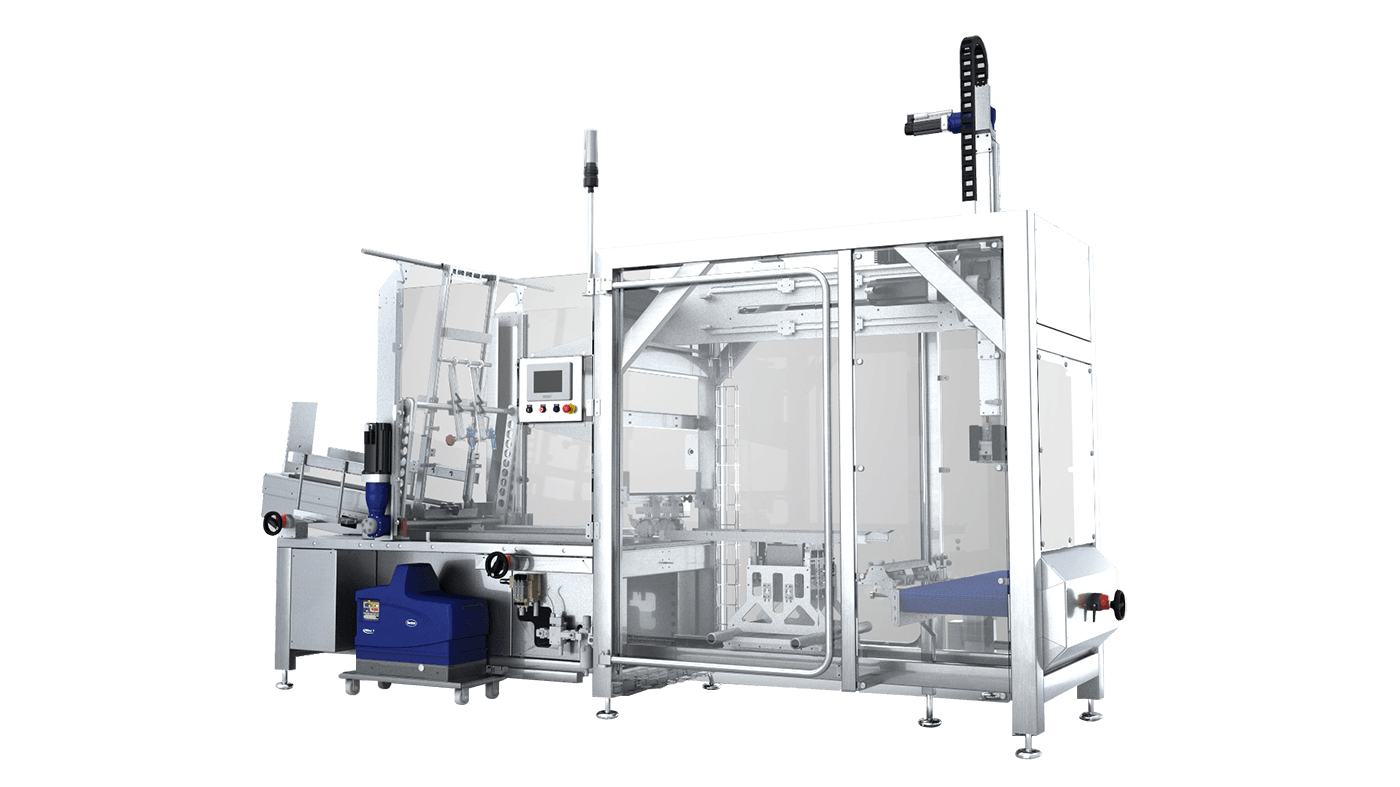

Trayfecta G Series Former

Any Case and Tray Style, Quick Changeover

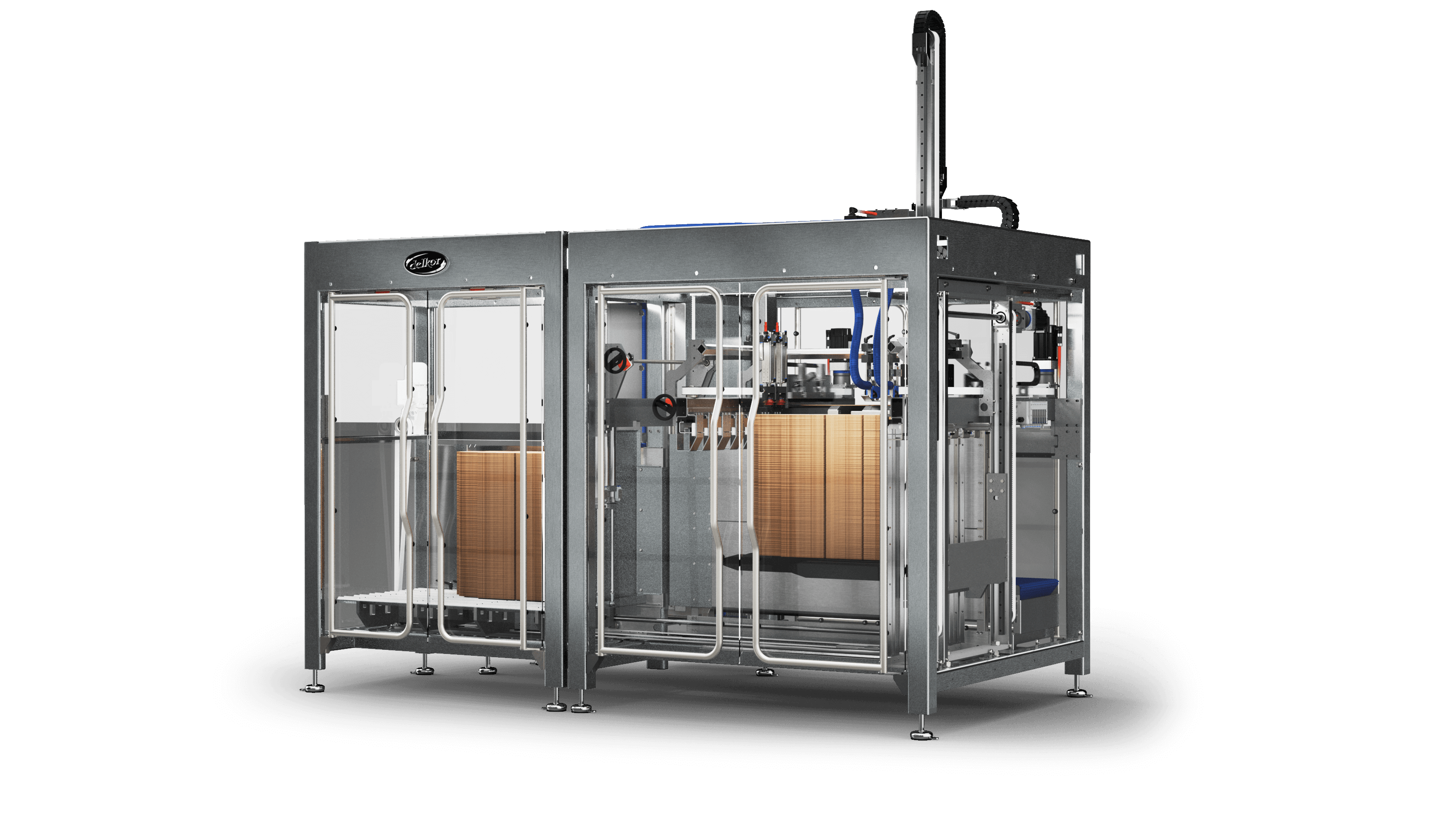

Trayfecta X Series Former

High Speed and Ergonomic, Any Case and Tray Style, Quick Changeover
