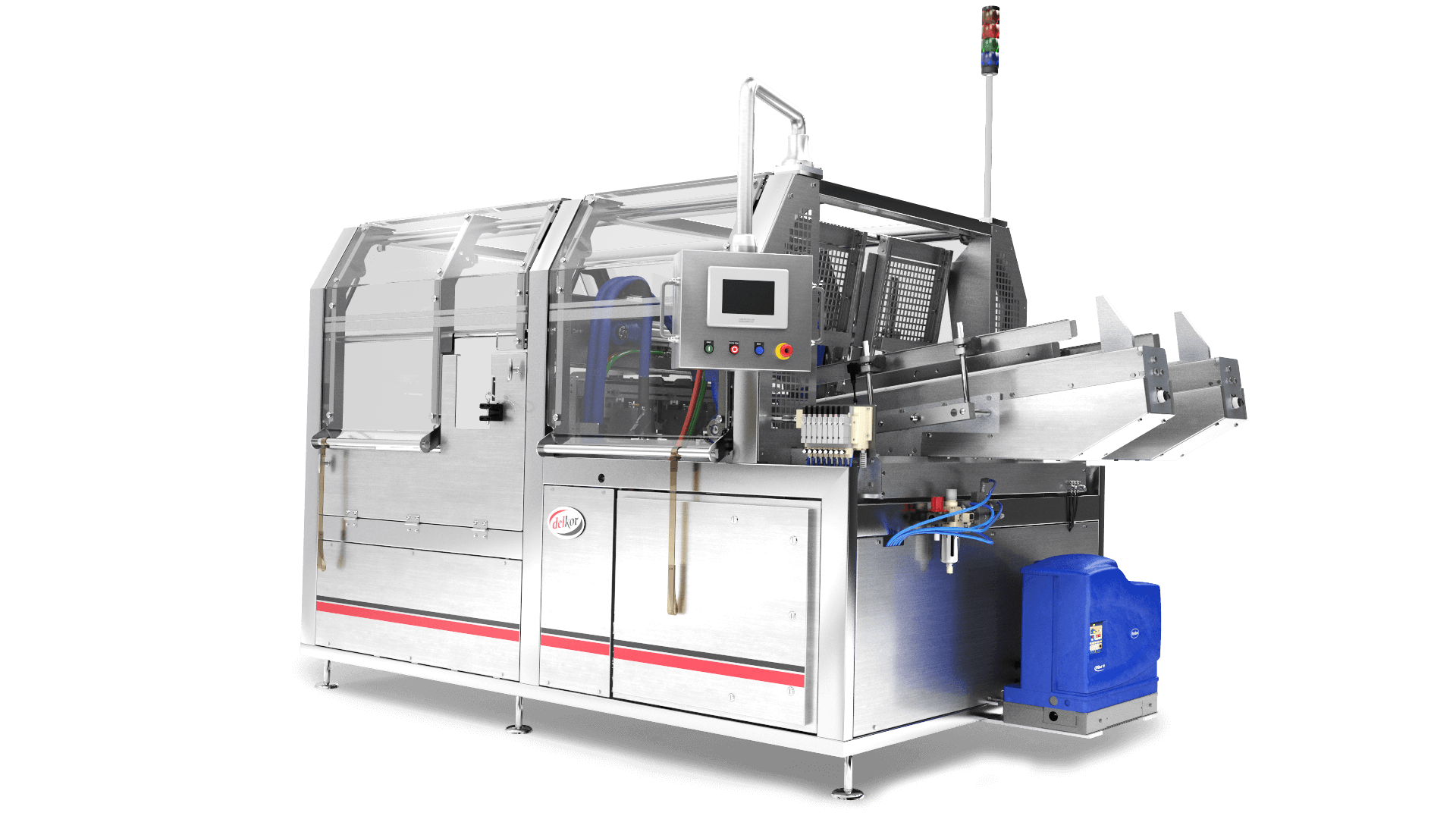

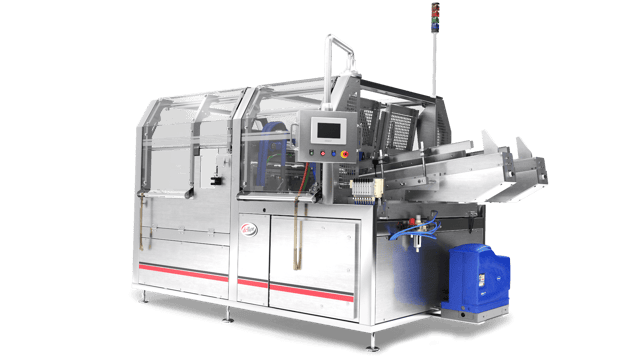

L Series
Lidder
Places paperboard lids on trays
VERSATILE LIDDING DESIGNS
The L Series Lidder offers many retail-ready packaging options to help maximize your brand’s impact on the retail shelf using graphic paperboard lid around a corrugated base.
HIGH SPEED, SMALL FOOTPRINT SYSTEM
The L Series Lidder operates at production speeds of up to 110 units per minute (dual head) and occupies less than half the space required by competing units.

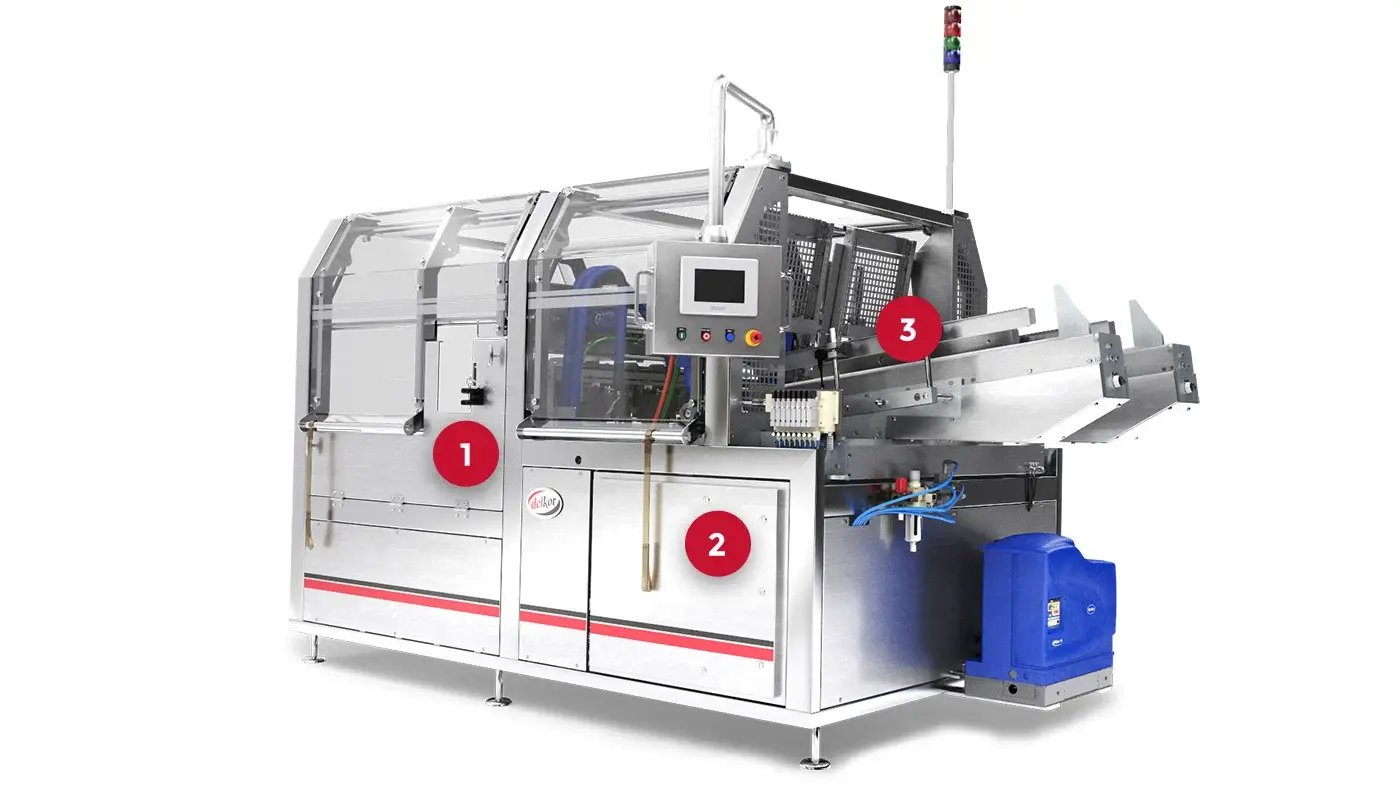

Key Features
PAPERBOARD LIDDING MADE EASY
1
Compact Footprint
This lidding machine is constructed to fit within tight floor plans.
2
Washdown Ready
IP67-rated food grade makes it ideal for operation in a wet environment.
3
Retail Ready
Offers many retail ready packaging options to help maximize your brand’s impact on the retail shelf using graphic paperboard lid around a corrugated base.
Specs
Package Types
RRP & Paperboard Lids
Max Rate
110 per minute
Compact Footprint
11' x 4'
Package Styles
Paperboard Lids
Max Rate (Product)
Single Head = 55/min, Dual Head = 110/min
Max Rate (Package)
Single Head = 55/min, Dual Head = 110/min
Discharge Orientation
Right Hand, Left Hand, Inline (requires 90 degree discharge transfer)
Machine Hand
Right Hand, Left Hand
Frame Materials
Stainless Steel
Servo-Motors
Allen-Bradley VPL or VPF (Food Grade)
System PLC
Allen-Bradley Compact Logix
System HMI
Allen-Bradley Panelview Plus 7 10"
Safety System
Category III
Enclosure - Main Panel
Painted (NEMA 4), Stainless Steel (NEMA 4X)
Enclosure - Panel Cooling
Vortex, Heat Exchanger, or Air-Conditioner
Adhesive System
Nordson, Graco, Robatech
Length
11ft 6.5in
Width
4ft 6in
Height
6ft 6in
Utilities - Power
480 VAC, 50-60Hz, 30 Amps
Utilities - Air
15 SCFM @ 80 PSIG
Status Glow
Bright Internal LED Status Lights
See it in action

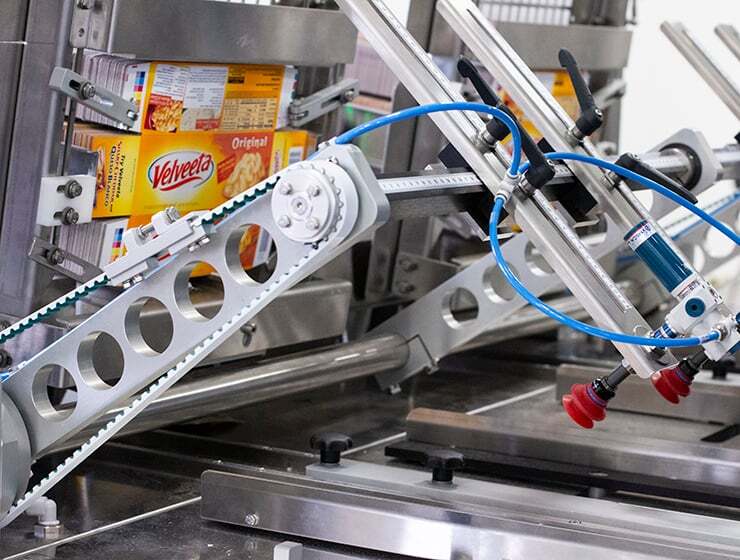

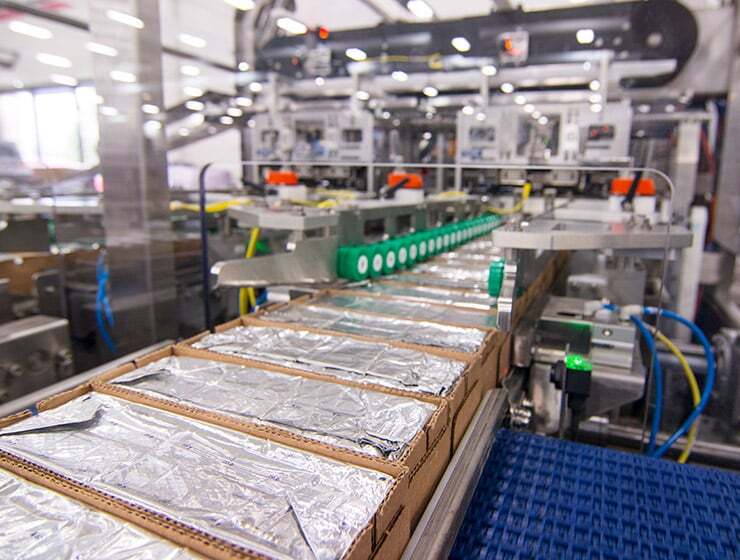

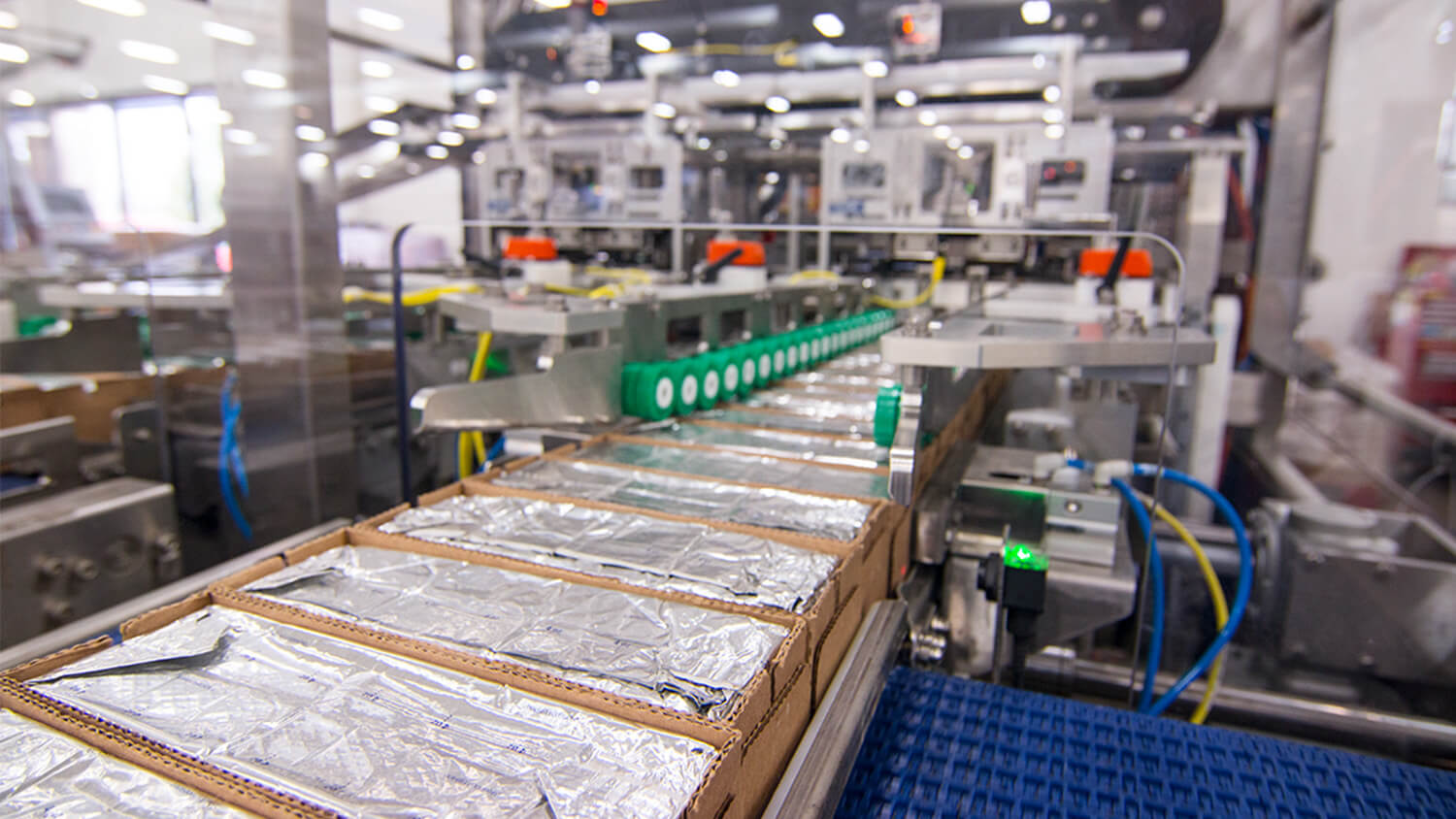

The L Series Lidder is optimized to efficiently apply paperboard lids to a base tray such as processed cheese packaging. At speeds up to 100 units per minute, it’s a compact and economical lidding solution. Quick-change tooling and an optional washdown feature are perfect for the dairy industry.
A key feature that helped make our decision of going with Delkor was the nice compact design of the closers. In a lot of production facilities, real estate and floor space is key. One thing we have come to take pride in is the efficiencies of the machines and the limited amount downtime. Also the service from Delkor has been phenomenal and has really helped us out over time.
-Paul Prazak, Blue Bell Creameries
