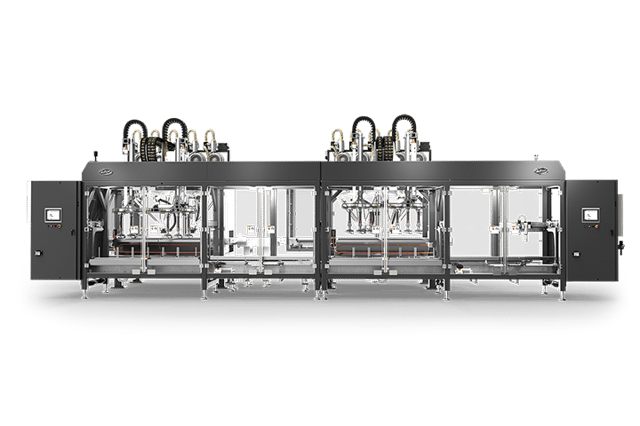

HSP Series

Case Packer

The fastest vision based case packer.

Multiple Formats, Industry Leading Speeds

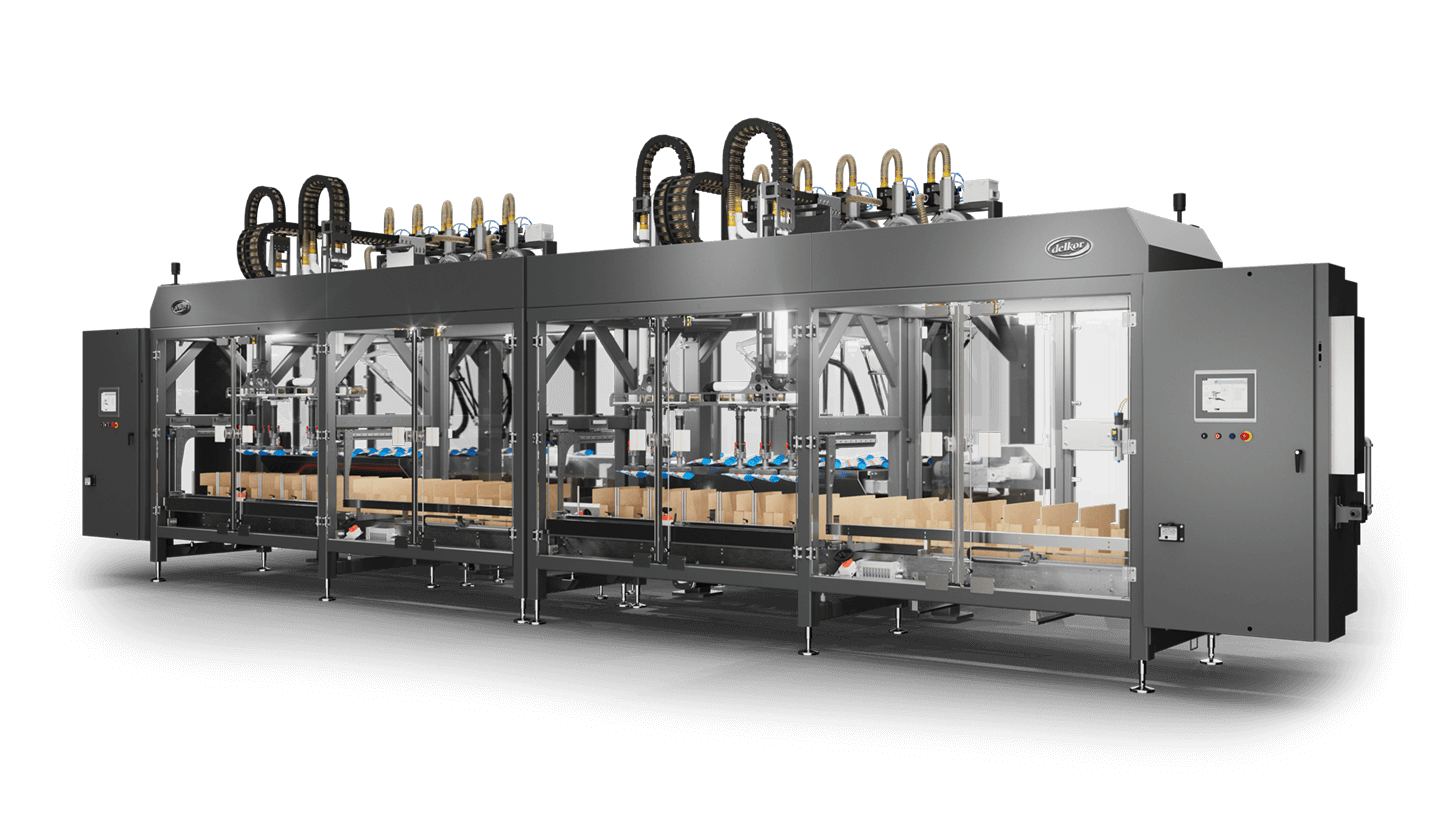

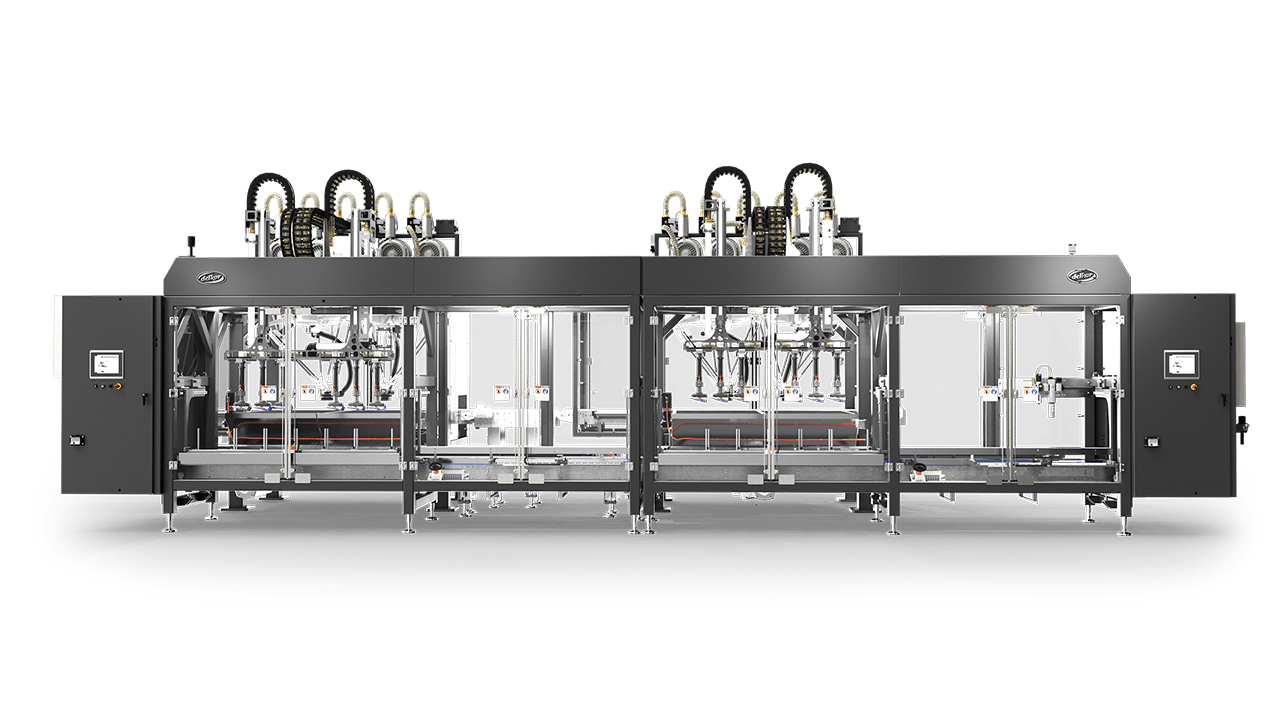

If speed is your need, look no further than Delkor's HSP Series Case Packer, the fastest vision based case packer that can run case, tray, and retail ready formats.

Don't limit your case sizes

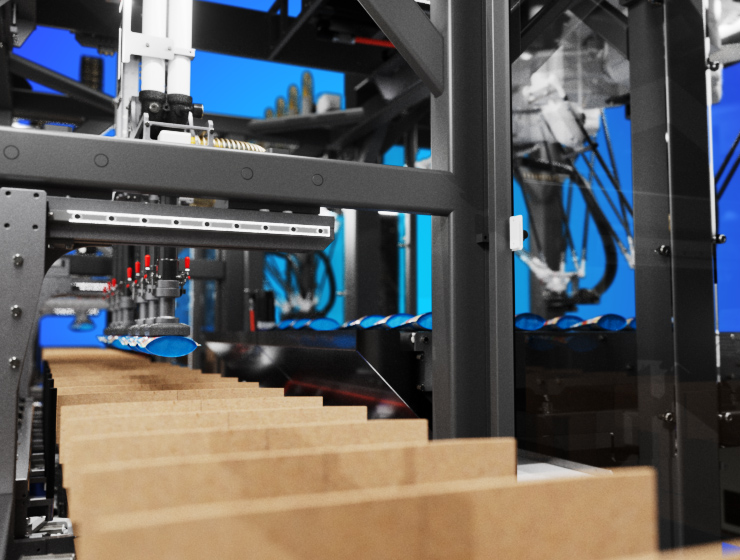

Many popular case infeed systems use flights and chains with lugs that limit the size of cases that can be run. With that in mind, the HSP Series Case Packer was designed with a lug-less case transport conveyor able to run a wide range of case dimensions.

The Best of both robots

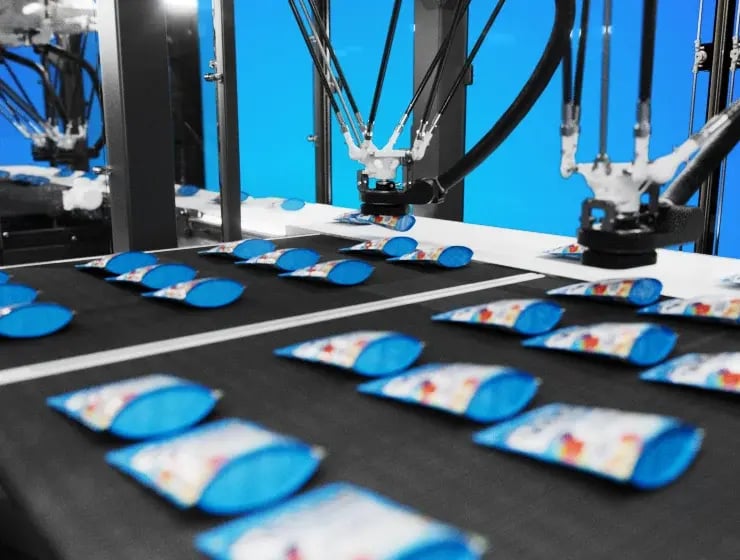

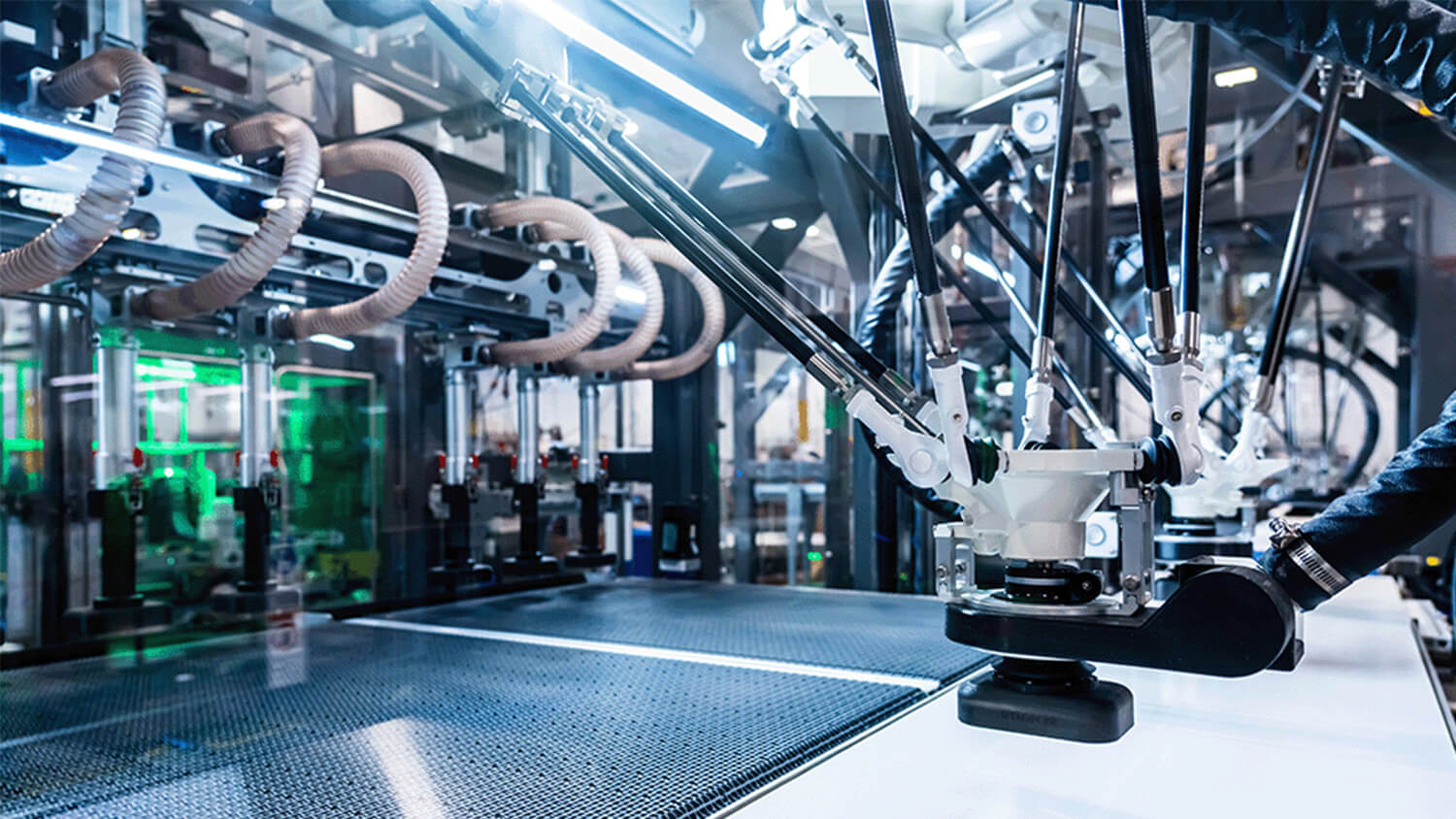

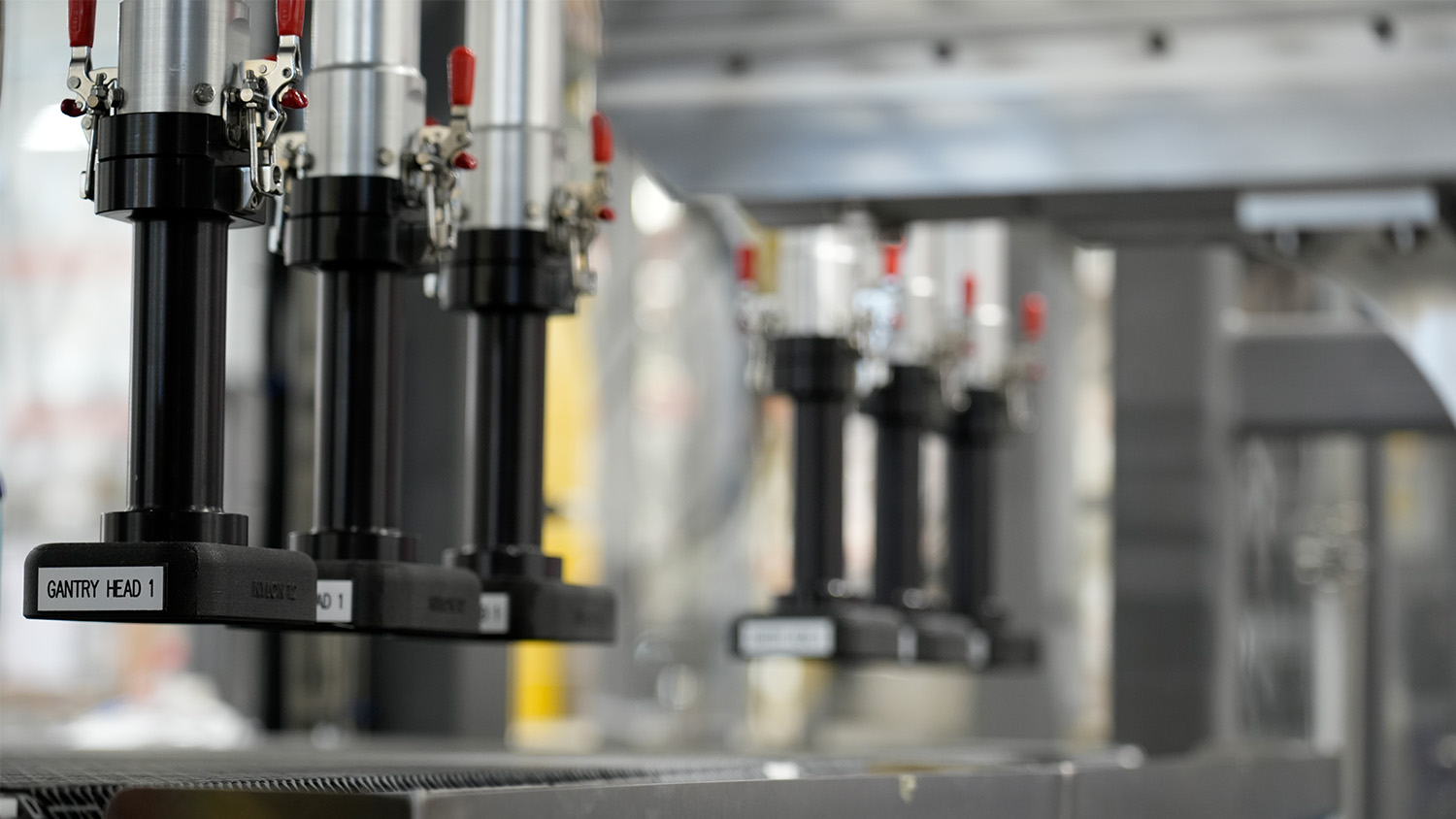

By leveraging both the high speed of delta robots and the long travel reach of gantry robots, we are able to pack deep and wide cases at industry leading speeds.

Industrial and Non-Food Packaging Equipment Cabrio Case 2

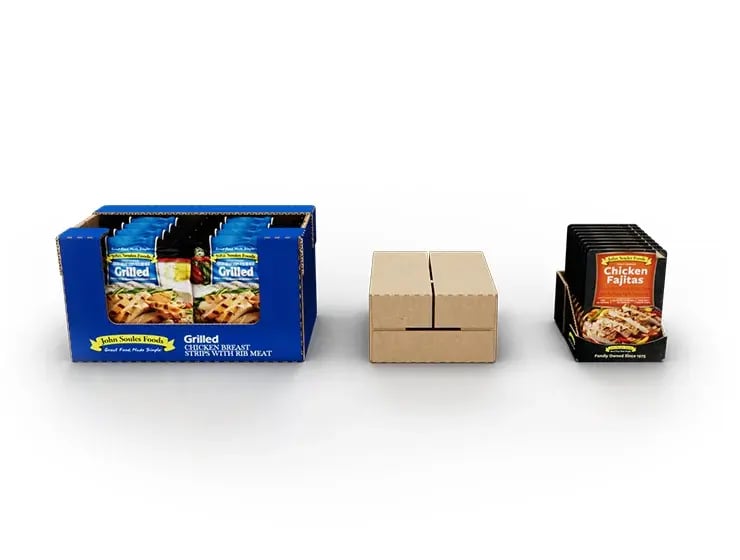

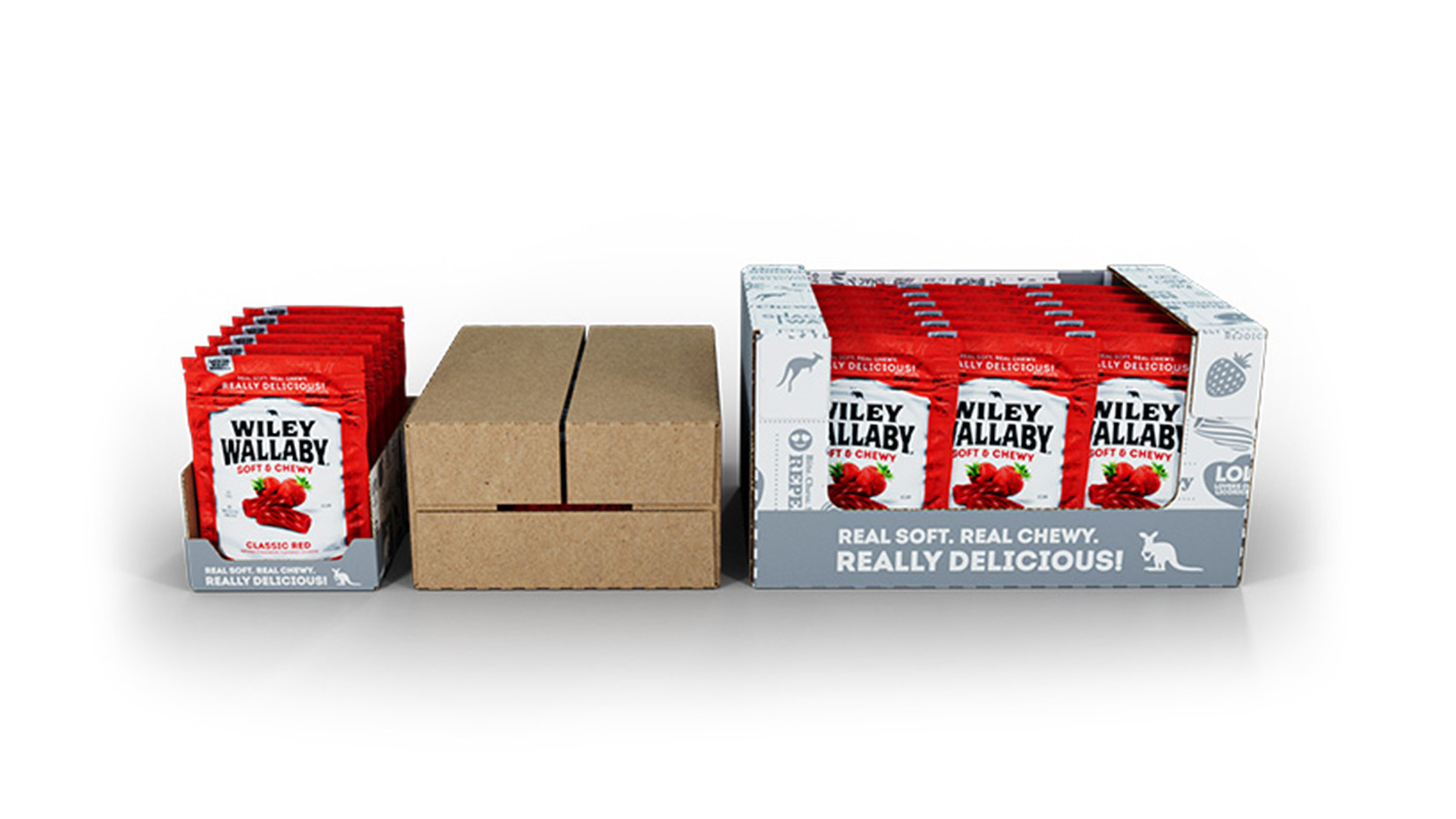

Run Delkor's Patented Case Designs For Free

With the purchase of Delkor's Case Packing equipment, you are able to run all of Delkor's patented case and tray formats with no added cost.

View Package Designs

Key Features

Learn about what makes Delkor's HSP Series Case Packer the industry leading solution for lightning fast pouch packing.

High Speed Pouch Packing

Speeds of up to 340 products per minute with vision based adjustment for skewed products.

Simple Tool-Less Changeover

Performs a full line changeover in 8 minutes or less.

Cabrio Case Compatible

Delkor's Cabrio Case® is free to use with purchase of Delkor's case packing equipment.

Specs

8 Min

Full Line Change Over

2 lbs

Max Weight Capacity

340 Products

Speed Per Minute

Package Types

Cases, Trays, and RRP

View Full Specs

Max Rate

50 Packages per minute

Discharge Orientation

Inline, Counterflow

Machine Hand

Right Hand, Left Hand

Frame Materials

Painted Carbon Steel, Stainless Steel

Robot Models

Fanuc M2iA

Servo-Motors

Allen-Bradley VPL or VPF (food grade)

System PLC

Allen-Bradley Compact Logix

System HMI

Allen-Bradley Panelview Plus 7 10"

Safety System

Category III

Enclosure - Main Panel

Painted (NEMA 4), Stainless Steel (NEMA 4X)

Enclosure - Panel Cooling

Vortex, Heat Exchanger, or Air-Conditioner

Enclosure - FANUC Cabinet

NEMA 1, optional Stainless Enclosure (NEMA 4X)

Enclosure - Camera

optional Stainless Steel (NEMA 4) with Air Blast

Length

39 ft 5in

Width

10 ft 10in

Height

10ft, 10in (2,200 mm)

Utilities - Power

2 by 480 VAC, 50-60Hz, 100 Amps

Utilities - Air

40 SCFM @ 80 PSIG

Status Glow

Bright Internal LED Status Lights

Additional Feature

Tool-Less Changeover

Additional Feature

Reject Bin Option

Download PDF Close

See it in action

The HSP Series Case Packer packs pouches and bags up to 2 lbs. It can operate at speeds of up 340 products per minute. With the ever-changing retail environment, this loader offers flexibility for the future with the capability of placing a variety of different sizes pouches and bags into multiple case types and configurations.

Delkor can work with you to design the case, and they have the capability to provide you samples of the case with graphics on. It’s like having a material company and a packaging systems company in one building.

Wilberto Torrez-Ortiz, Packbrain

Free package samples in 48 hours!

Our in-house CAD table and full-time packaging engineer enable us turn around printed case samples within 48 hours! These samples can be branded and tailored to meet the requirements of your marketing department and packaging engineers.

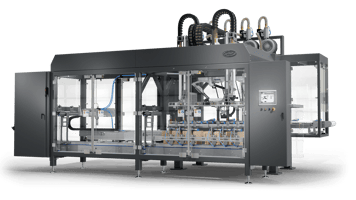

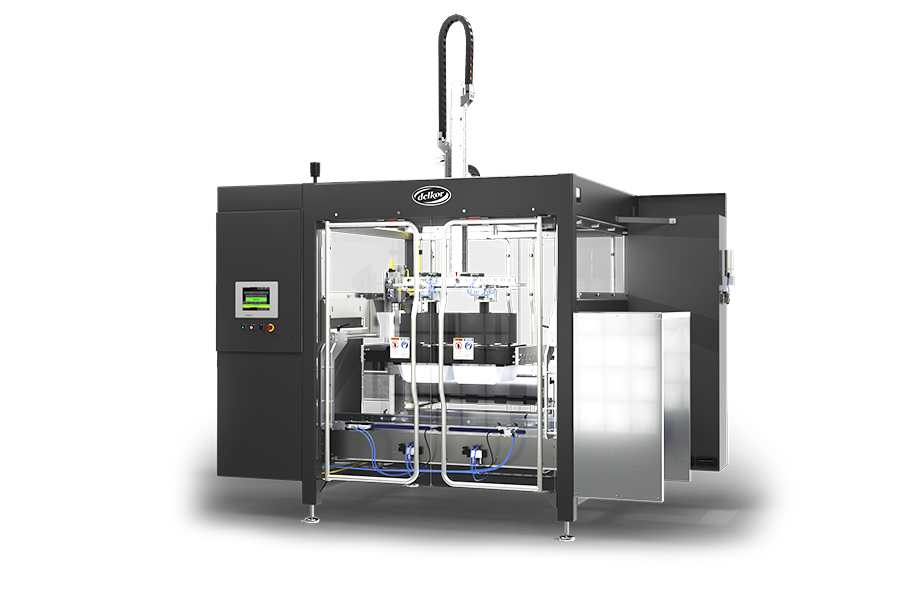

Similar Case Packing Equipment
