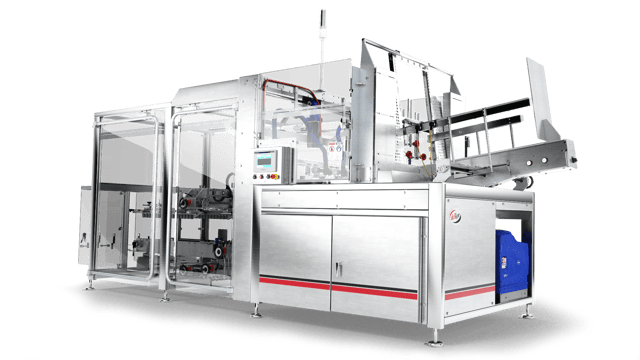

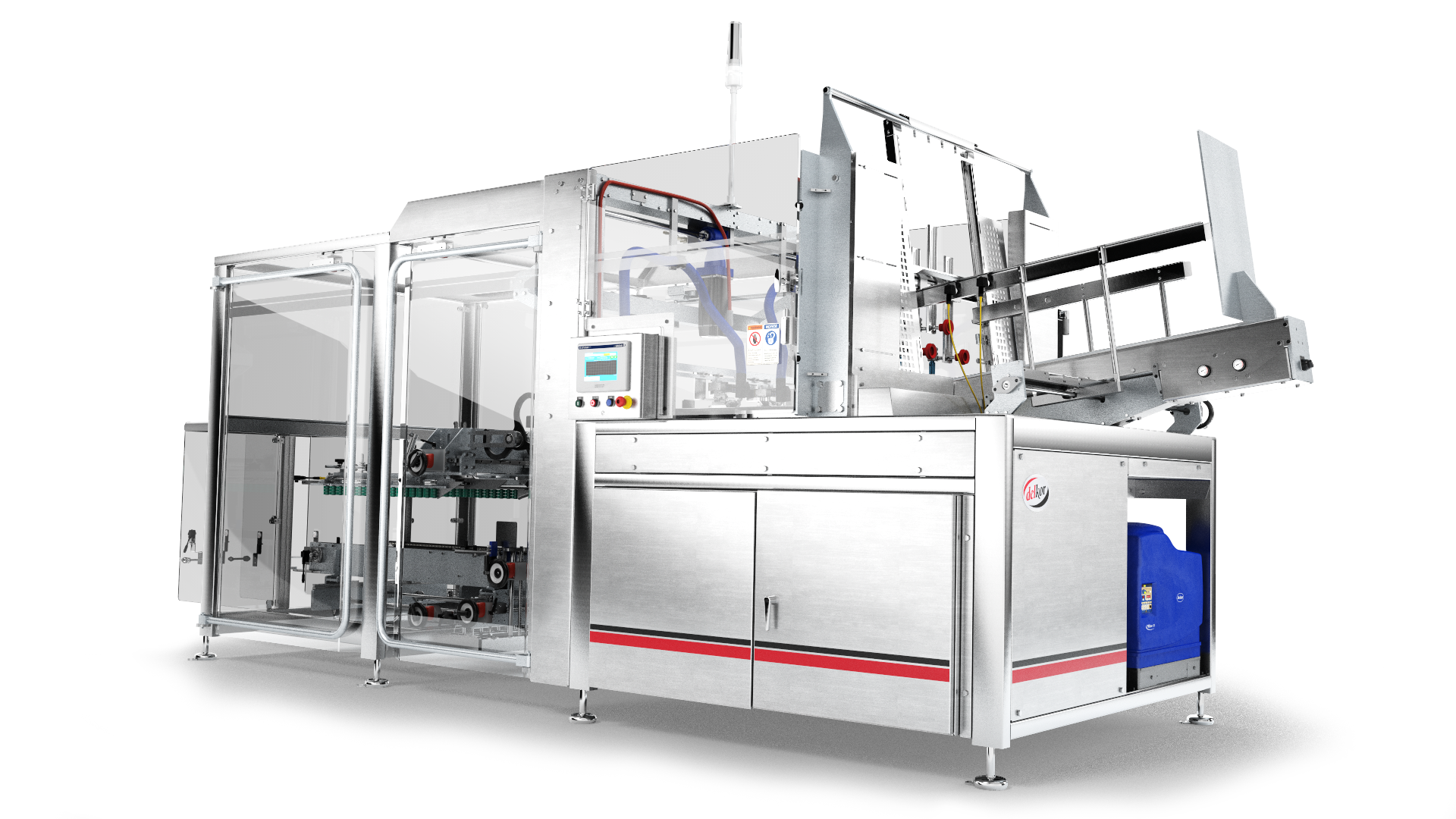

Trayfecta RS Series
Former
A speedy solution for all of your die cut tray needs!

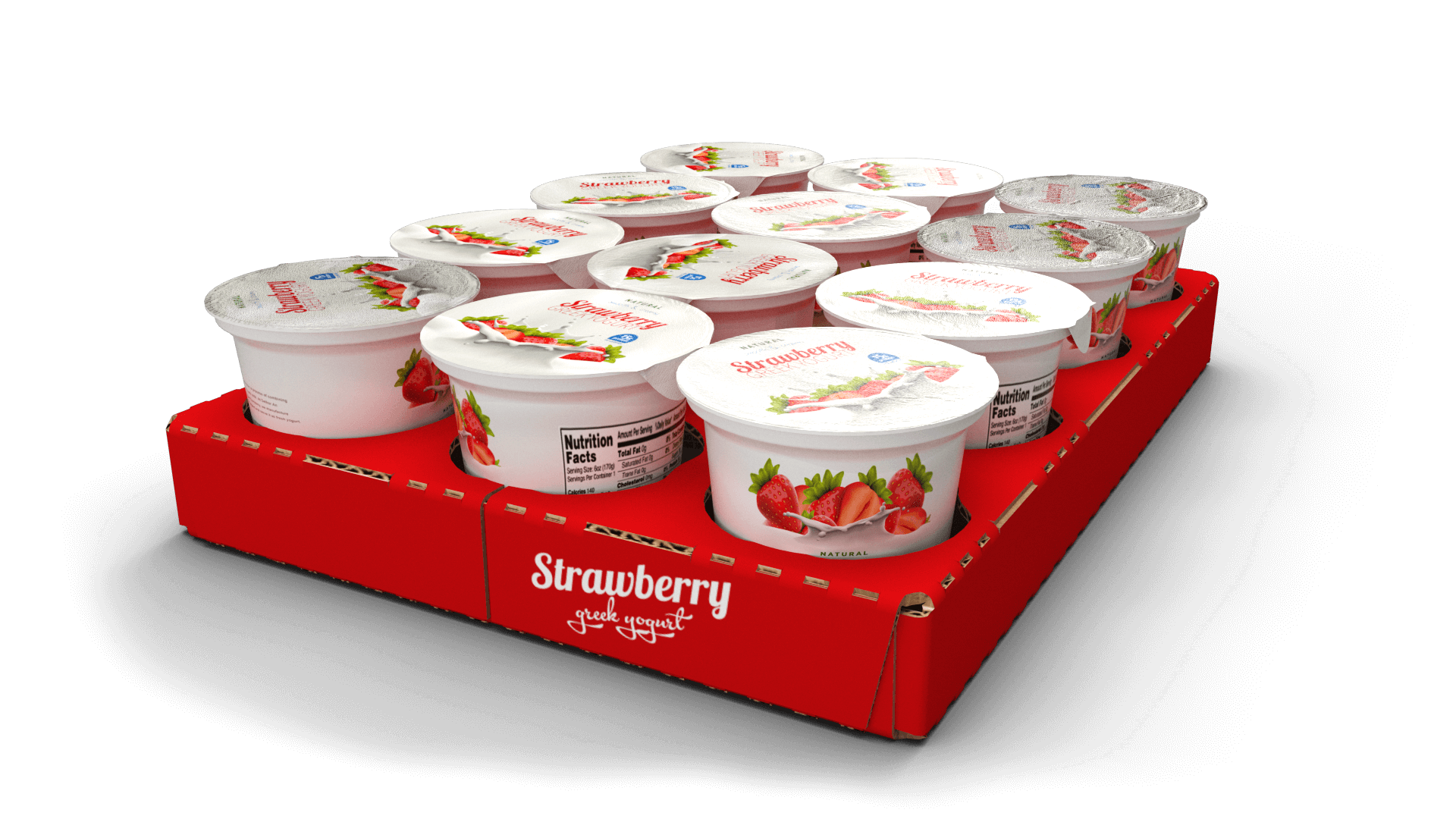

RETAIL READY, CUP HOLDING CUTOUTS
Shrink wrap it or leave it as-is, these trays with precision cutouts allow you to meet even the most stringent shelf-ready requirements.

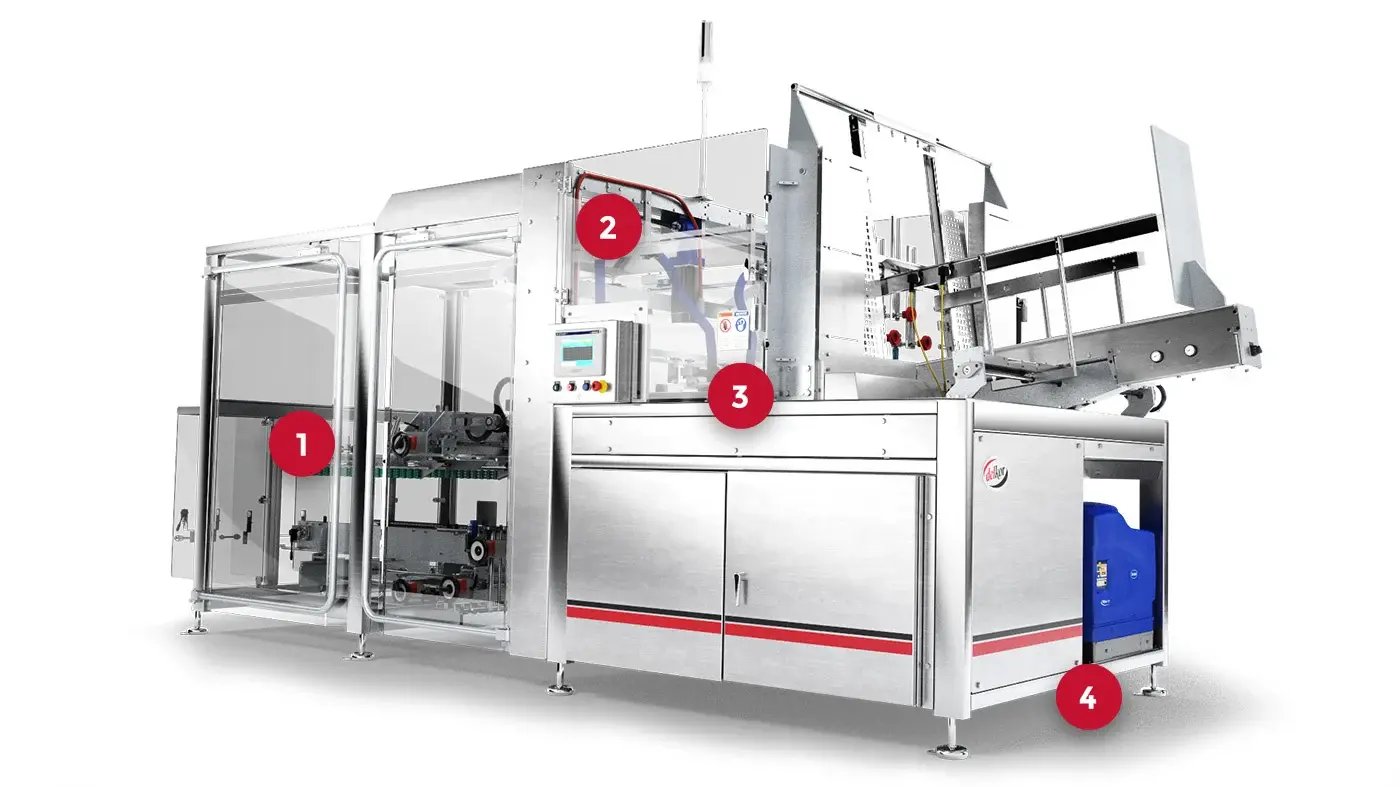

Key Features
A Perfect Combination of Speed and Package Flexibility
1

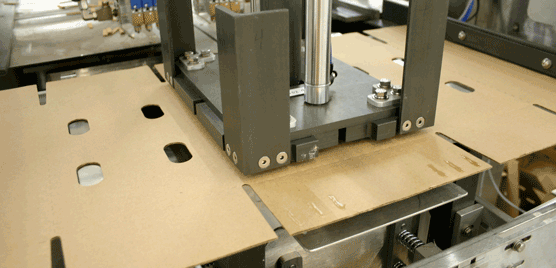

Form Die Cut Trays
This is a speedy solution for any retail style die cut tray forming needs.
2
Package Flexibility
Run cartons, cases, and a variety of trays on one machine.
3
High Speeds
The RS Series Former runs at 60 units per minute!
4
Compact Footprint
This former can easily fit into tight spaces with its compact design
Specs
10 Min
Change Over
35 Cases
Max Rate*
Package Types
Retail Ready Trays, Cases
Discharge Orientation
Inline Discharge
Machine Hand
Right Hand, Left Hand
Frame Materials
Stainless Steel
Servo-Motors
Allen-Bradley VPL or VPF (food grade)
System PLC
Allen-Bradley Compact Logix
System HMI
Allen-Bradley Panelview Plus 7 10"
Safety System
Category III
Enclosure - Main Panel
NEMA 4, NEMA 4X
Enclosure - Panel Cooling
Vortex, Heat Exchanger, or Air-Conditioner
Adhesive System
Nordson, Graco, Robatech
Utilities - Power
480 VAC, 50-60Hz, 60Amps
Utilities - Air
15 SCFM @ 80 PSIG
Status Glow
Bright Internal LED Status Lights
When we arrived for the acceptance testing, the equipment was ready to roll, hit our efficiency metrics, was shipped, delivered, and was ready to run even before the line was fully commissioned.
-Matt Brody, Nature's Bakery

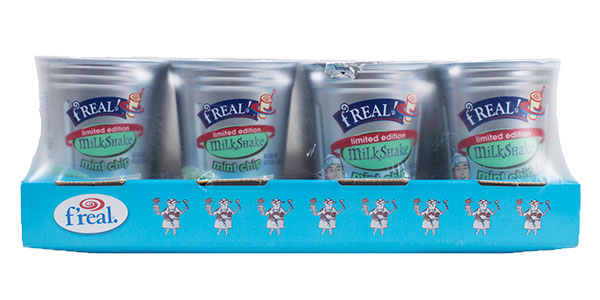

Free package samples in 48 hours!
Our in-house CAD table and full-time packaging engineer enable us turn around printed case samples within 48 hours! These samples can be branded and tailored to meet the requirements of your marketing department and packaging engineers.

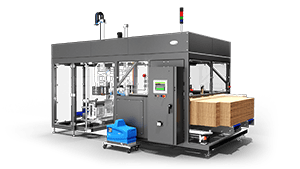

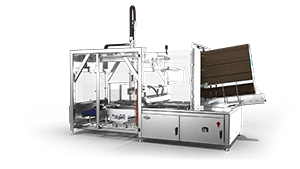

Similar Forming Equipment
