Trayfecta J Series

Former

Large Cases and Trays

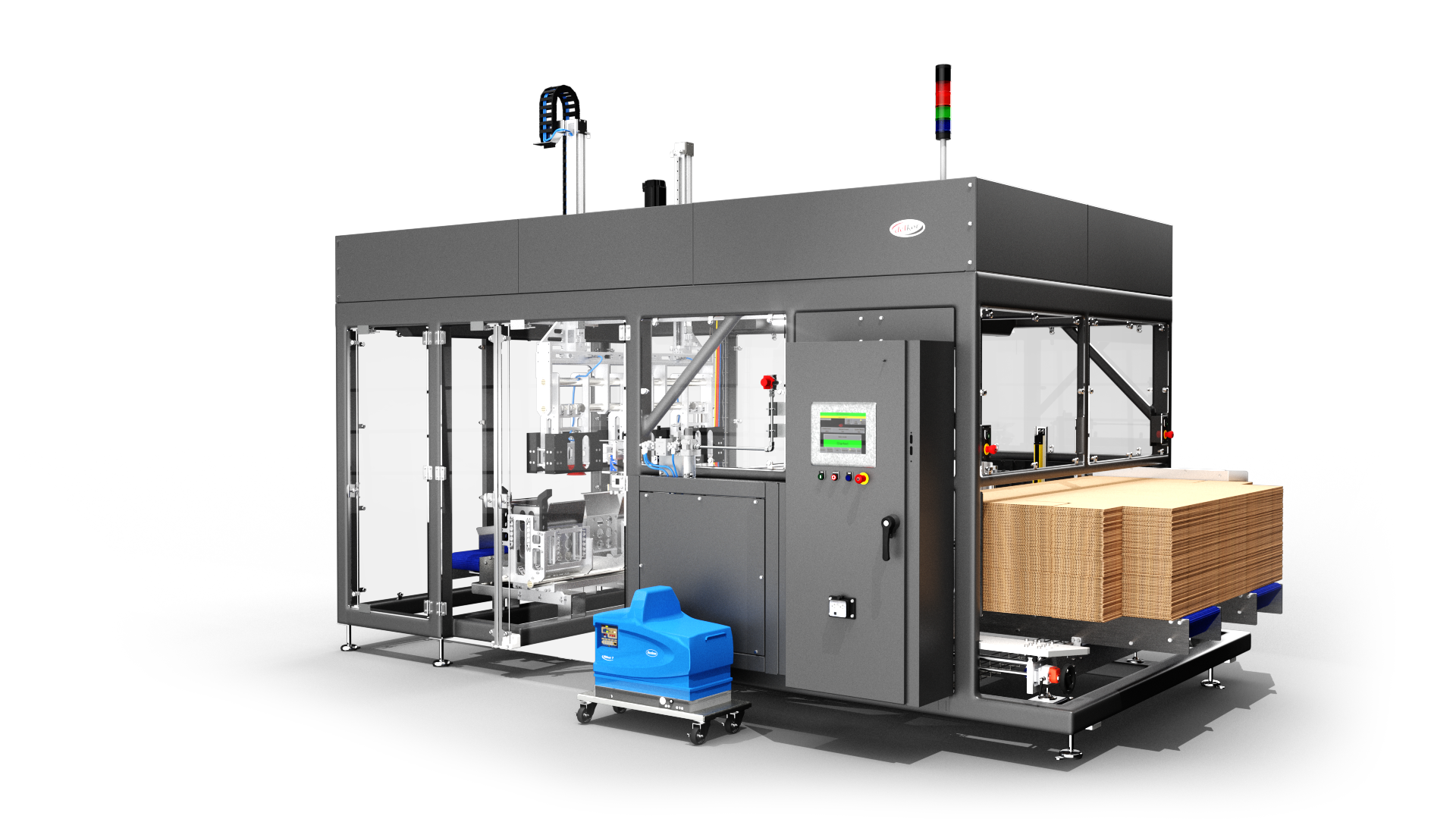

Trayfecta-J_1(2)
LIGHTWEIGHT, TOOL-LESS TOOLING

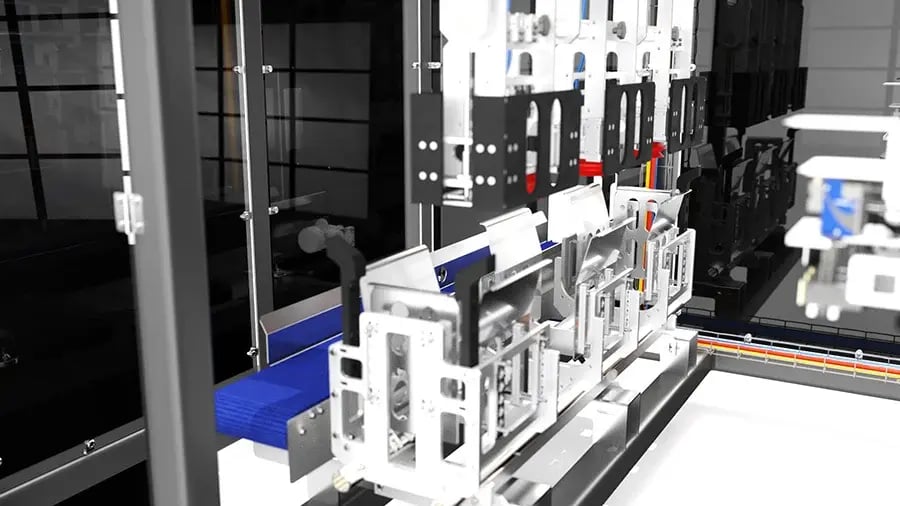

TOOL-LESS Changeover

Removable cavity side guides make changeover simple and easy. The machine saves time on the production floor with its quick release capability, tool-less features, and intuitive size change sensibility.

Trayfecta J Series Former

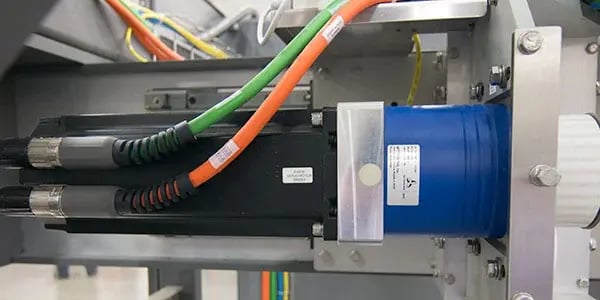

5 AXIS CONTROL

With up to five servo axes, precision, repeatability, and finished package quality are guaranteed. Recipe-driven servo motion minimizes the number of manual adjustments during changeover.

StringCheese_ClubTray_Layout_1(2)

STACKABLE CLUB TRAY READY

With a simple changeover, the Trayfecta J Series Former can also form our robust, stackable club trays for your wholesale products.

Key Features

The Trayfecta® J Series Former can erect oversized cartons, cases, trays, RSC cases, Shelf Ready Packages (SRP) and more!

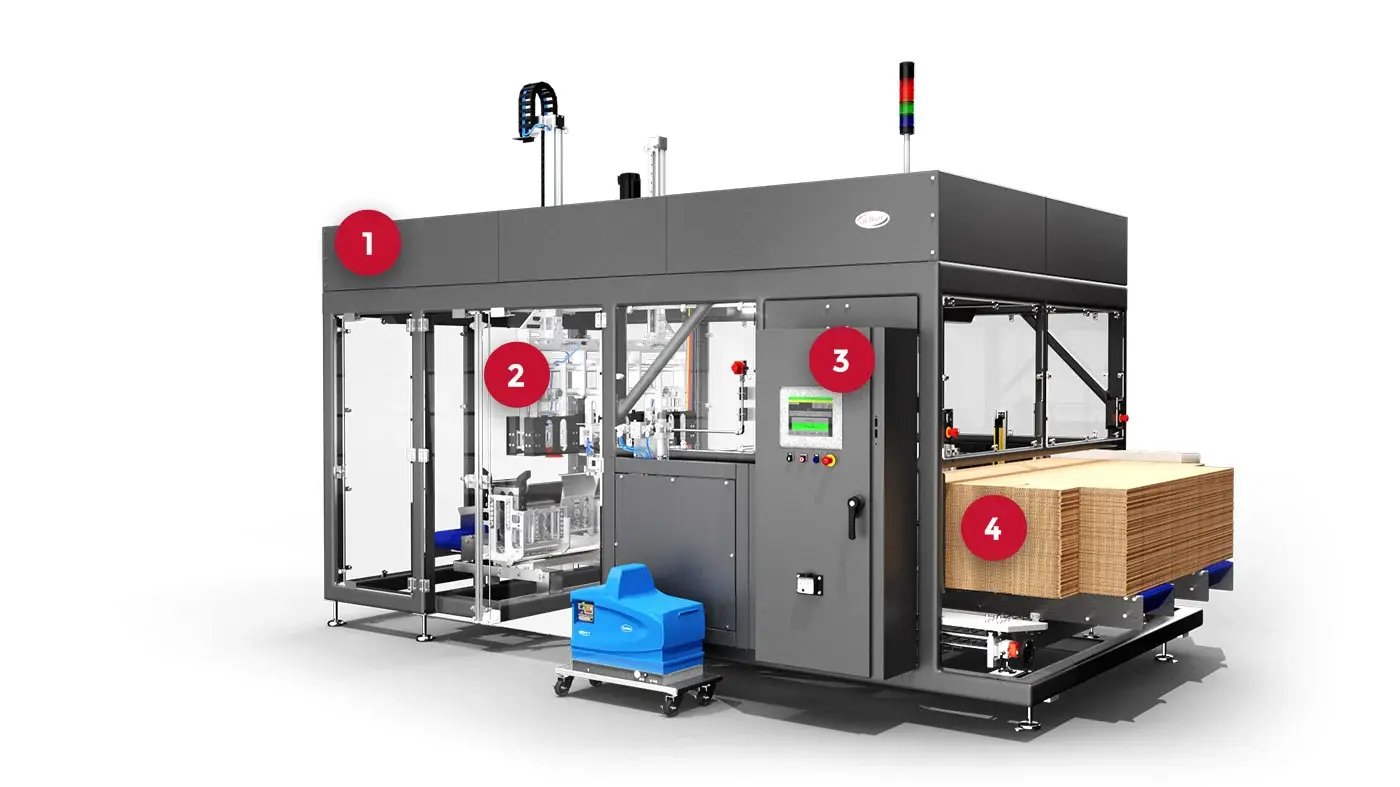

J-Former-Key-Features-1
1

Layout Flexibility

Designed to fit well into current lines.
2

Adjustable Tooling

Our patented adjustable tooling cavity allows for a smooth and speedy changeover between package types.
3

Club Tray Compatible

Run popular club store tray designs on this machine, such as those commonly seen at Costco.
4

Perfect for Large Cases and Trays

Built to handle large products.

See it in action

Watch a test run on this machine in Delkor's manufacturing plant.

Specs

Key Feature
Ergonomic Low Magazine
Key Feature
Quick Changeover, Light Tooling
Layout
Right Hand/Left Hand Counter Flow or Through-Flow
System PLC
Allen-Bradley Compact Logix
System HMI
Allen-Bradley Panelview 700 or 1000
Servo Motors
Allen-Bradley VPL or VPF (food grade)
Safety System
Category II or III
Enclosure Panel
NEMA 12 (Painted), NEMA 4 (SS) or NEMA 4X(SS)
Enclosure
Voltage Separation Standard (High/Low)
Panel Cooling
Vortex, Heat Exchanger or Air-Conditioner
Utilities - Power
480v 60hz 3ph
Utilities - Air
15 SCFM @ 80PSIG
Weight
2,700 lbs
Length
15’ 0” (4,570 mm)
Width
3’ 7” (1,120 mm)
Height
8’ 3” (2,515 mm)
Frame Materials
Stainless Steel or Painted Carbon Steel
Magazine
Extended Magazine Length
Status Glow
Bright Internal LED Status Lights

When we arrived for the acceptance testing, the equipment was ready to roll, hit our efficiency metrics, was shipped, delivered, and was ready to run even before the line was fully commissioned.

-Matt Brody, Nature's Bakery

Free package samples in 48 hours!

Our in-house CAD table and full-time packaging engineer enable us turn around printed case samples within 48 hours! These samples can be branded and tailored to meet the requirements of your marketing department and packaging engineers.

Similar Forming Equipment

Trayfecta G Series Former

Trayfecta G Series Former

Any Case and Tray Style, Quick Changeover
Trayfecta S Series Former

Trayfecta S Series Former

High Speed Cartons, Cases, & Trays

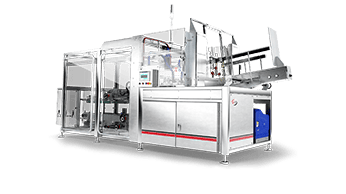

Trayfecta RS Series Former
