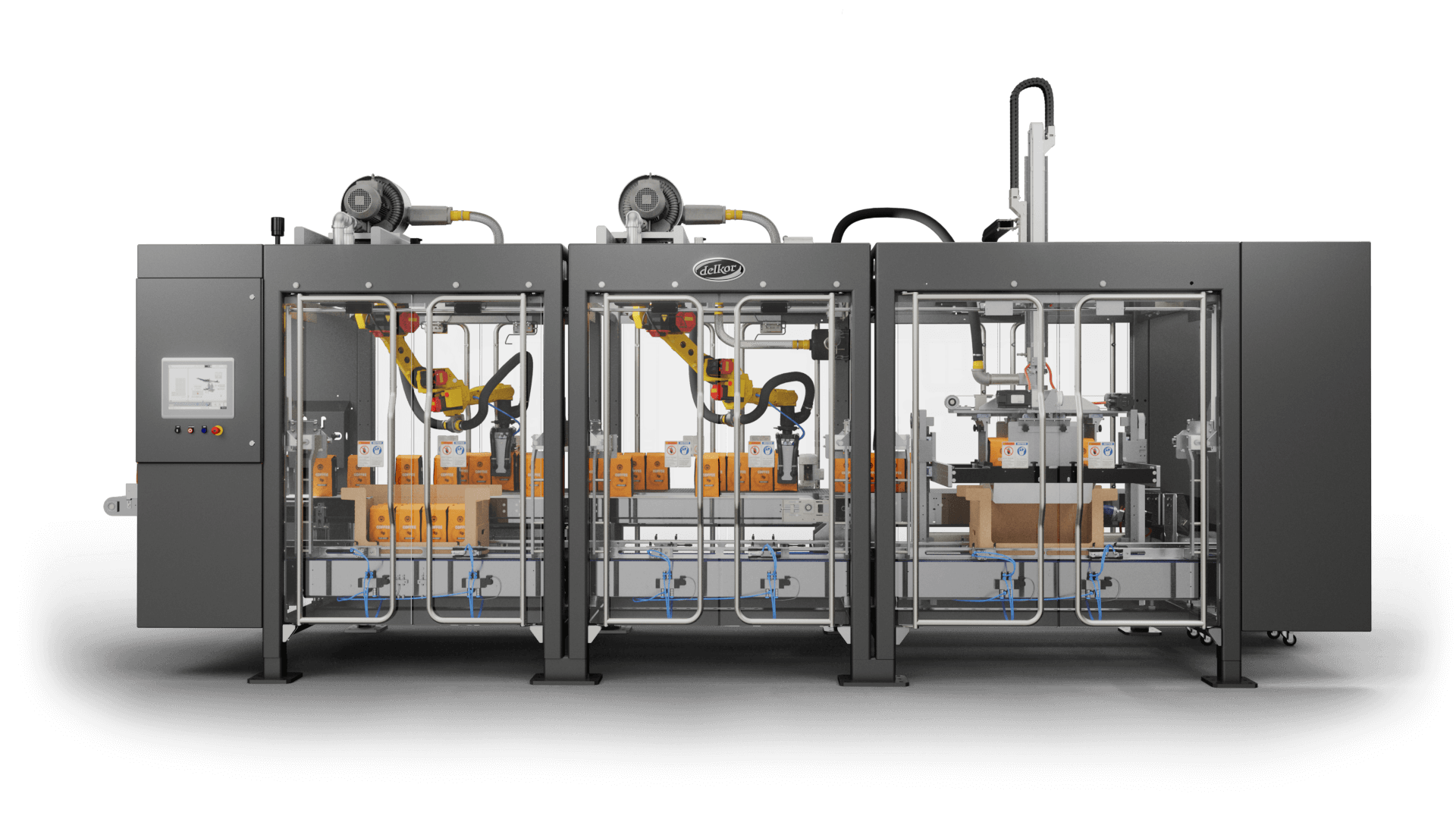

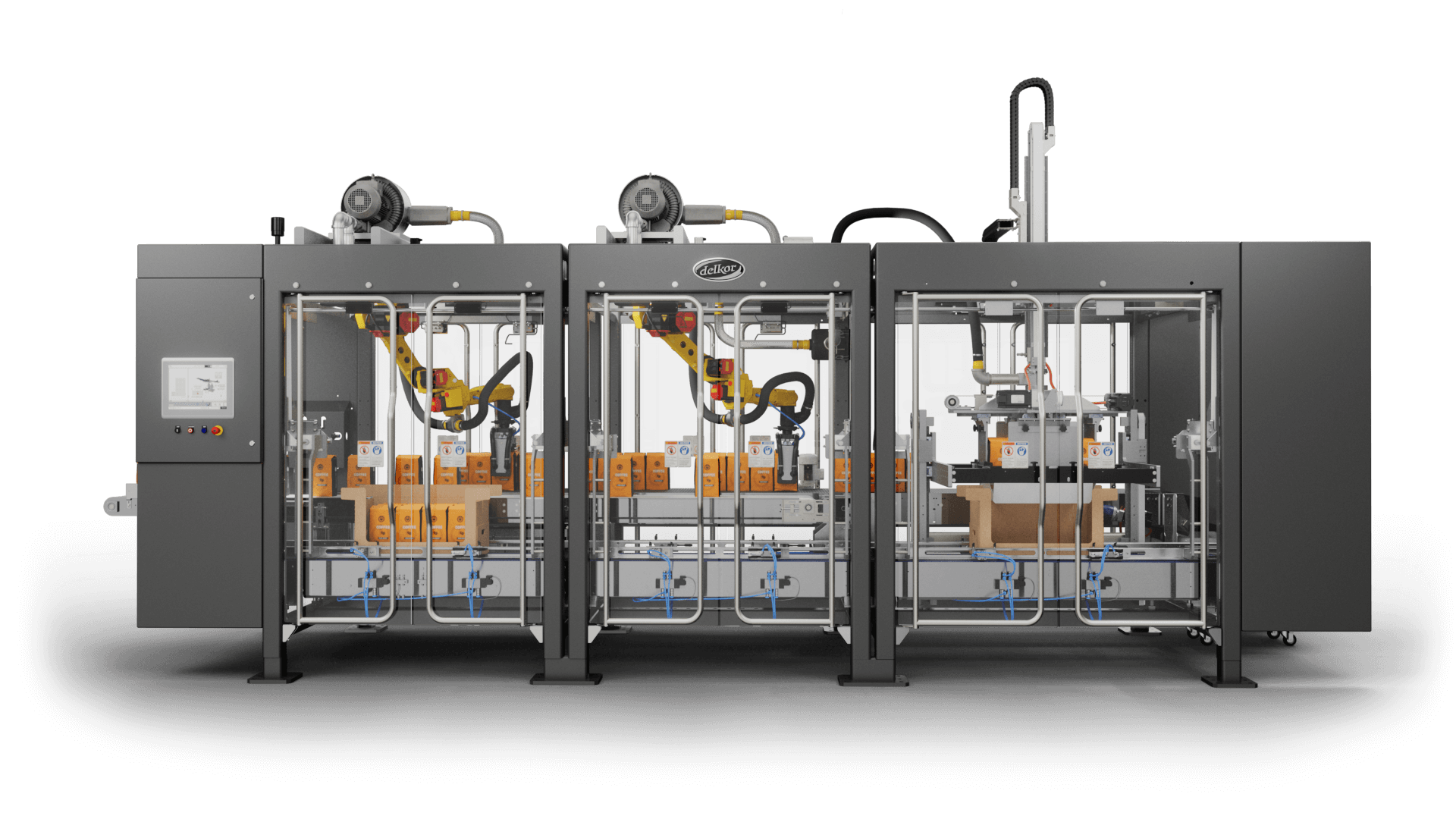

LSP Series

Case Packer for Coffee

Maximize case space for product that shifts or expands while loading.

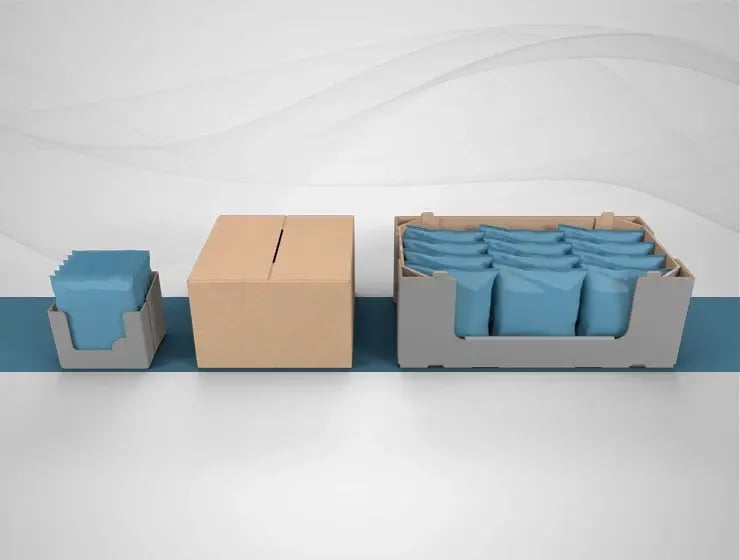

ANY SHIPPER STYLE

Pack coffee into cases, trays, and retail ready packages of nearly any variety! Adjustable, quick-change tooling make changeovers a snap.

Load in Bulk

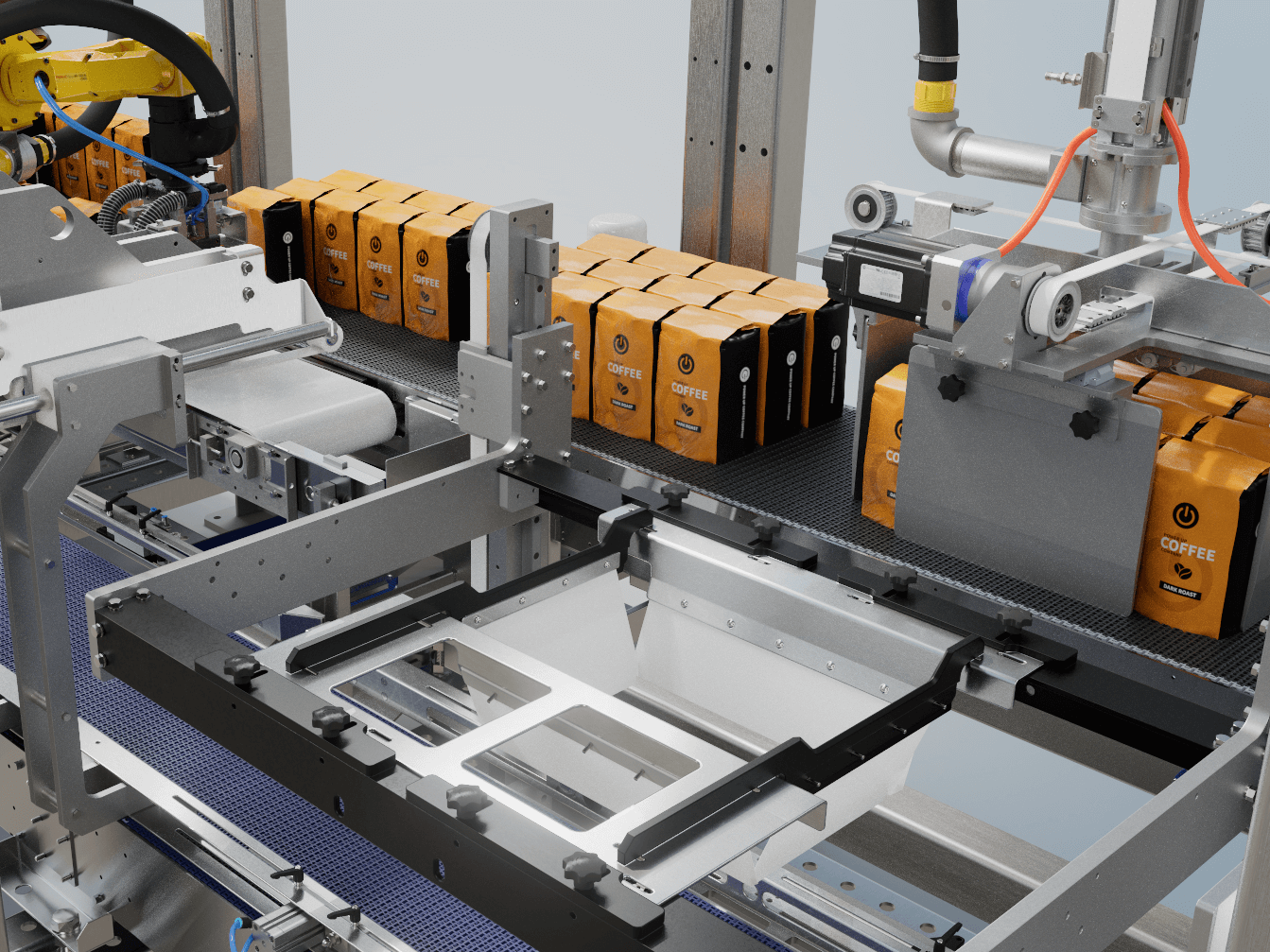

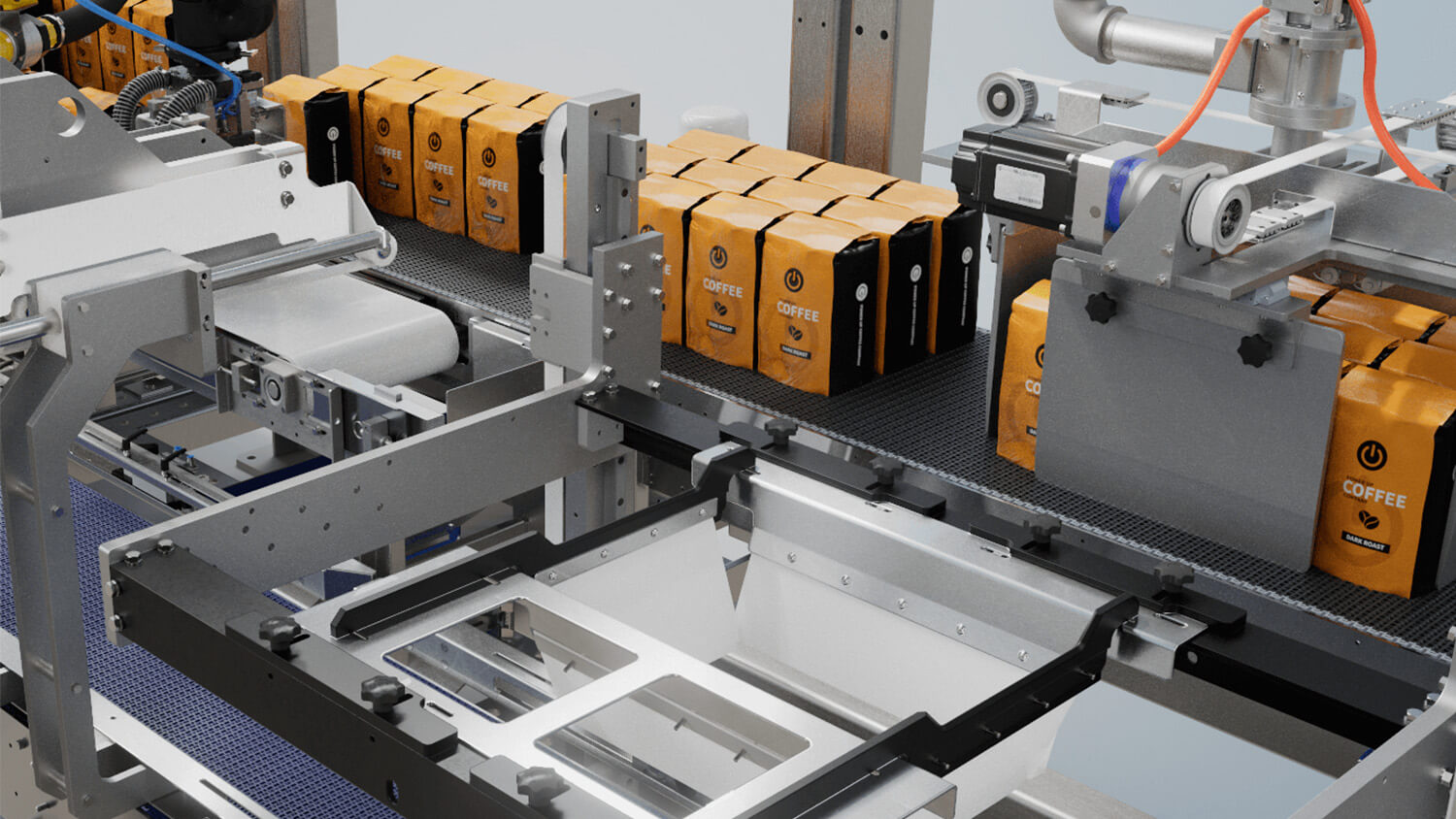

This machine places product into the shipping case all at once, so as to maximize space. By avoiding product shifting, the LSP Series Case Packer for Coffee is able to fit more coffee into smaller packages, saving space during shipping.

Key Features

The LSP Series Case Packer for Coffee is built to maximize usable case loading space.

Run Any Case Format

Wide size range able to be run on this machine ensuring your line is future proofed if new formats need to be run

Quick Changeover

Switch between standard brown box shippers and club store trays in minutes

Compact Footprint

Designed to save space. Eliminates need for clunky laning solutions

Operator Friendly Design

Wide see through doors, lightweight tooling, and status glow lighting are just a few of the ways we've improved the operator's experience

Specs

3 Min

Change Over

50 Cycles Per Min

Max Rate

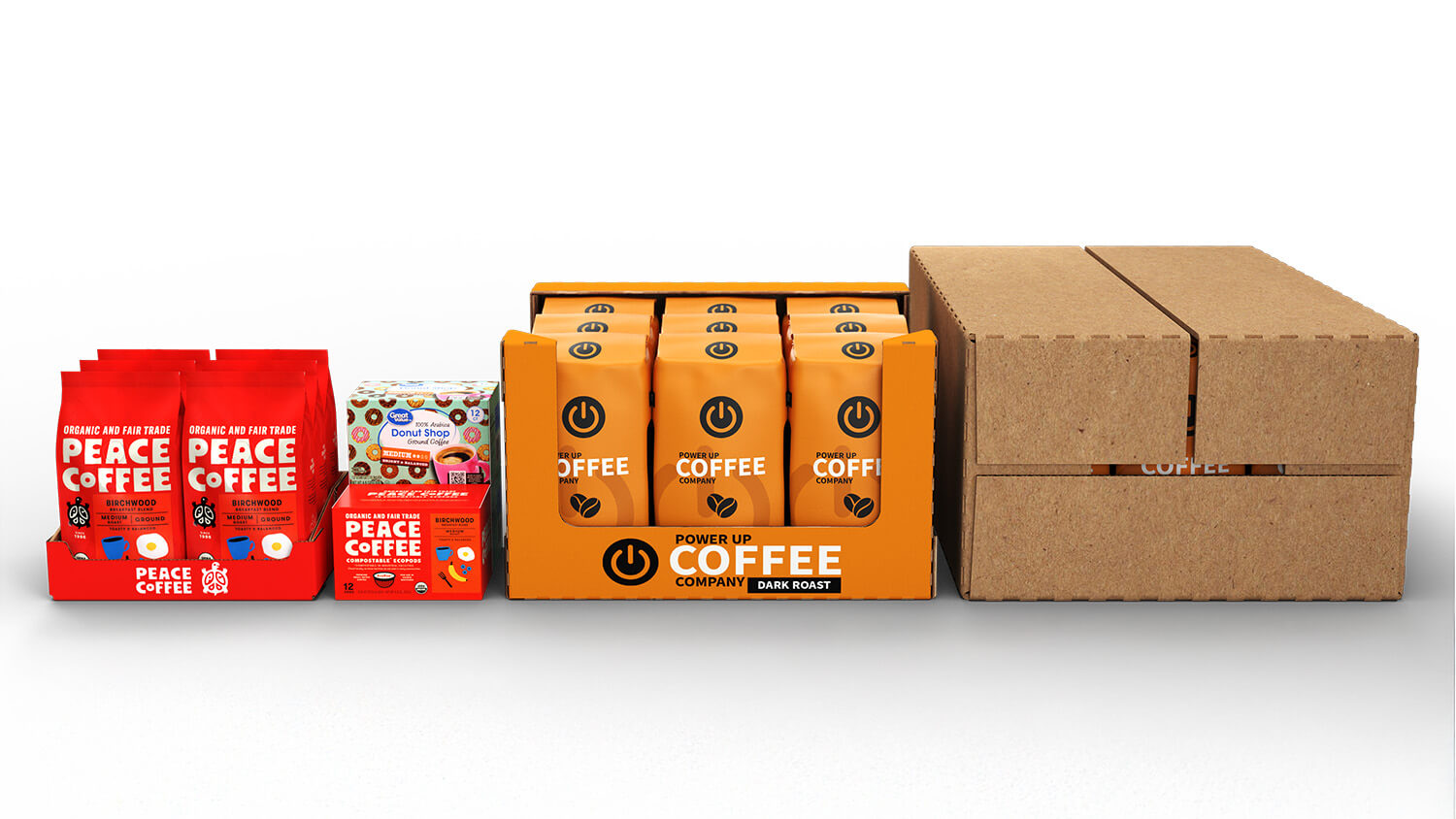

Package Types

Cases, Trays, and RRP

View Full Specs

Key Feature

Packs Deep Cases

Key Feature

Compact Footprint

Key Feature

Simple Tool-Less Changeover

Key Feature

No Collation Chains or Buckets

Layout

Right Hand/Left Hand Counter Flow or Through-Flow

Robot Models

FANUC M10iA-10ms

Robot Mount Types

Frame Mount Inverted

Robot Pick Method

Vision Pick and Place

Vacuum

Busch Central Vacuum Blowers (2)

System PLC

Allen-Bradley Control Logix

System HMI

Allen-Bradley Panelview 700 or 1000

Safety System

Category II or III

Enclosure - Main Panel

NEMA 12 (Painted), NEMA 4, or NEMA 4X(SS)

Cabinet

NEMA 12 (Painted), NEMA 4, or NEMA 4X(SS)

Enclosure - Camera

NEMA 12 (Painted), NEMA 4(SS) With Air Blast

Enclosure - Panel Cooling

Vortex, Heat Exchanger or Air Conditioner

Utilities - Power

480v 60hz 3ph

Utilities - Air

20 SCFM @ 80PSIG

Dimensions - Weight

9,000 lb (4082 kg)

Dimensions - Length

15'0" (4,570 mm) including guarding

Dimensions - Height

8'0" (2,440 mm)

Options - Frame

Stainless Steel or Powdercoated Carbon Steel

Options - Reject Bins

Stainless Steel Bins On Casters

Options - Mispick Detection

Operator Notification For Mispicks

Status Glow

Entire Machine Has Status Illumination

Download PDF Close

See it in action

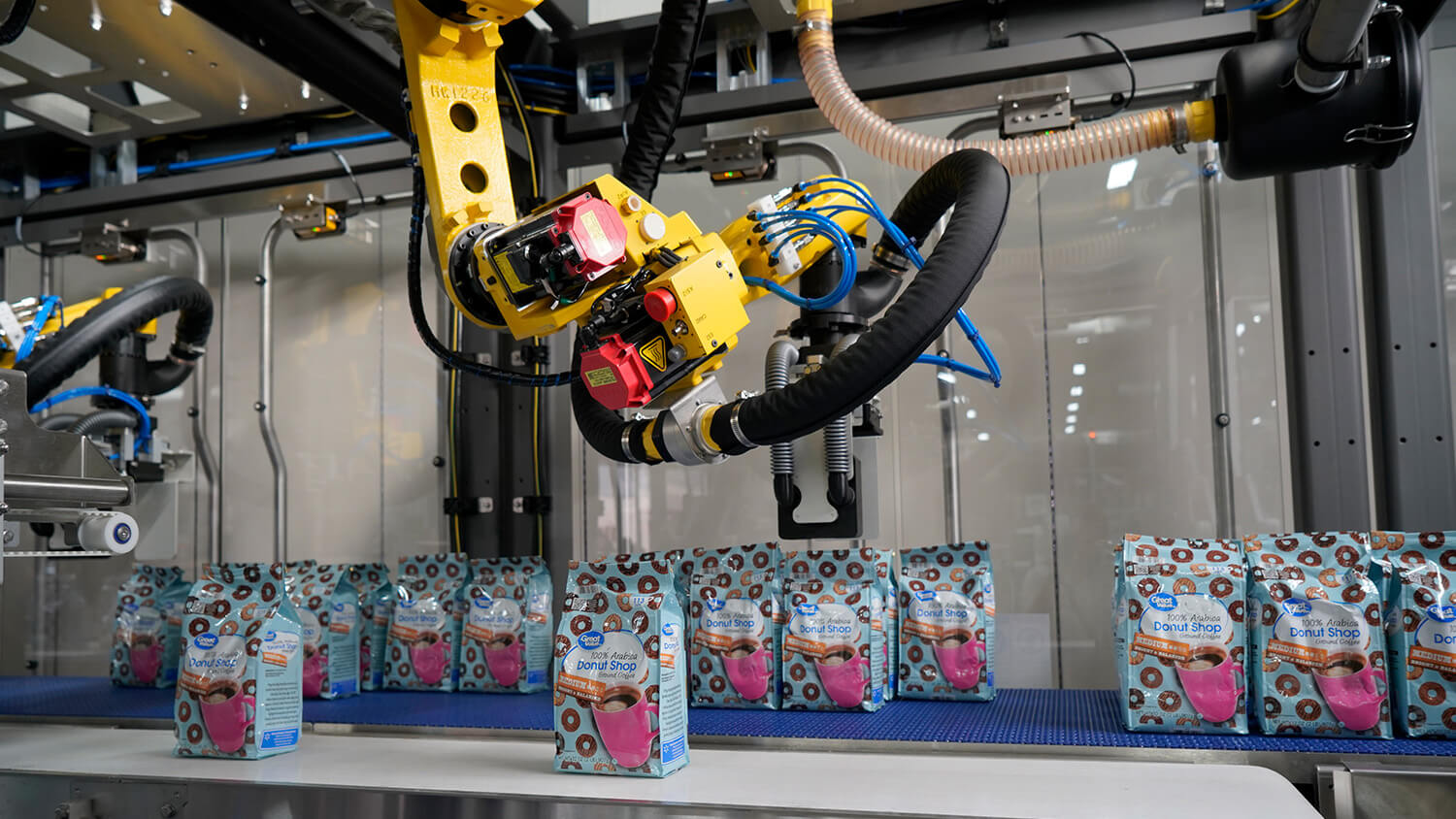

Watch the LSP Series Case Packer for Coffee load bags in bulk. These dual FANUC robots work together in unison to group product into clusters that are clasped together and loaded simultaneously into cases or trays.
