    Performance Series

    Case Packer

    Contoured infeed system for a wide range of products.

    MicrosoftTeams-image (77)
    Performance-Case-Packer-56

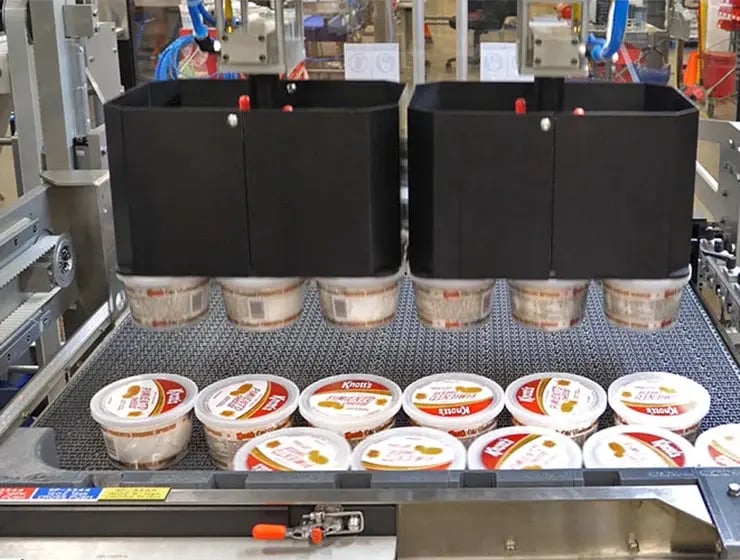

    Intelligent Synchronization

    Say goodbye to collation chains, buckets and fixed guides. Delkor’s patented Intelligent Synchronization enables the Performance Series Case Packer to pick and load pack patterns at high speeds with minimal change parts.

    Performance Case Packer 54

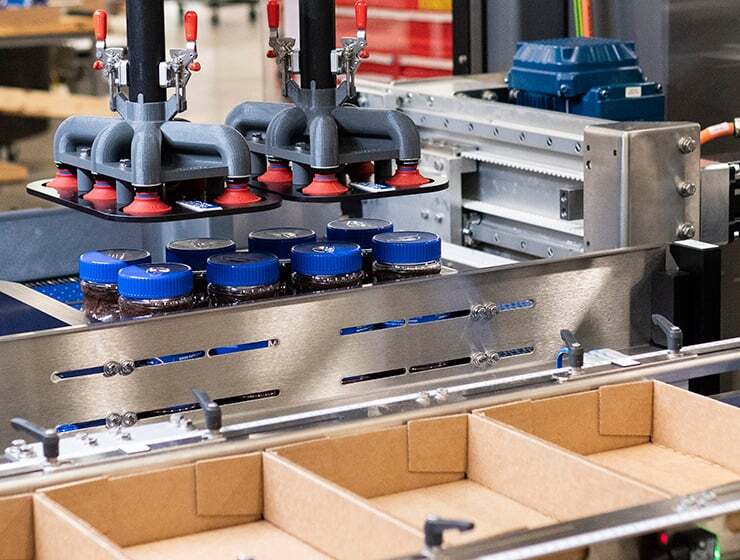

    HIGH SPEED PICK & PLACE

    The Performance Series Case Packer's pick and place gantry and innovative infeed system allow the case and tray packer to reach speeds up to 200 containers per minute.

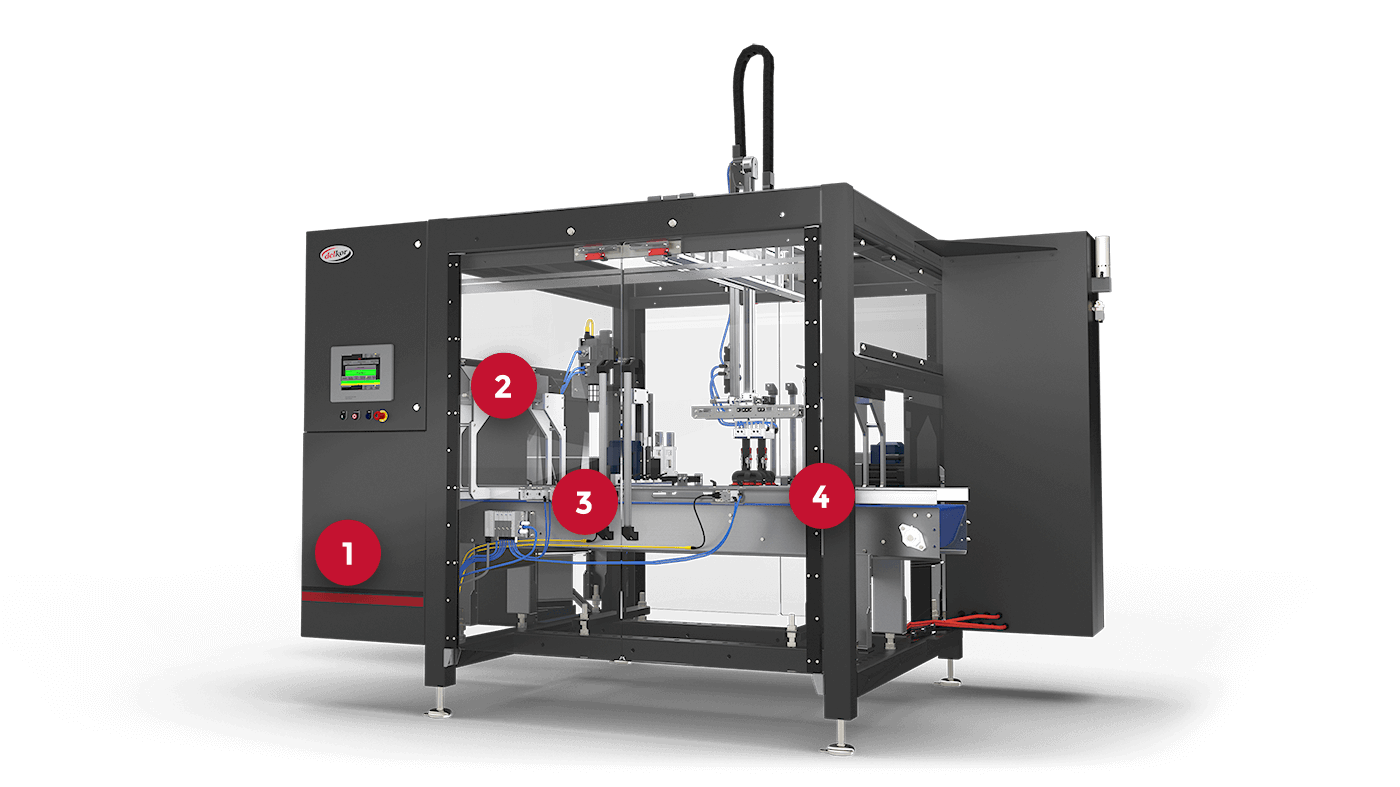

    Key Features

    Contoured infeed system for a wide range of products

    Performance-Case-Packer-45
    1

    Compact Design

    Fits into nearly all floorplans.
    2

    High Speed Packing

    Packs cases, cartons, and trays via speedy pick and place robotics
    3

    Package Ambiguity

    Accepts wide variety of standard and unstable primary containers
    4

    Intelligent Synchronization

    Eliminates collation chains, buckets and fixed guides; reduces change parts.

    Specs

    8 minute or less

    Change Over

    Compact Footprint

    6X6 Frame

    Smart Machine Technologies

    For Increased Efficiencies

    200 Products

    Max Speed Per Minute
    View Full Specs
    Package Types
    Tray, Cases, Pads (Spot-Pak), RRP, Aldi
    Max Rate
    45 Packages per minute
    Discharge Orientation
    Inline, Counterflow, Right Hand, Left Hand
    Machine Hand
    Right Hand, Left Hand
    Frame Materials
    Painted Carbon Steel, Stainless Steel, Tubeless Stainless Steel
    Servo-Motors
    Allen-Bradley VPL or VPF (food grade)
    System PLC
    Allen-Bradley Compact Logix
    System HMI
    Allen-Bradley Panelview Plus 7 10"
    Safety System
    Category III
    Enclosure - Main Panel
    Painted (NEMA 4), Stainless Steel (NEMA 4X)
    Enclosure - Panel Cooling
    Vortex, Heat Exchanger, or Air-Conditioner
    Adhesive System
    Nordson, Graco, Robatech
    Length
    6ft, 2in (1,880 mm)
    Width
    6ft, 2in (1,880 mm)
    Height
    7ft, 6in (2,290 mm) - this is with gantry down
    Utilities - Power
    480 VAC, 50-60Hz, 60 Amps
    Utilities - Air
    20 SCFM @ 80 PSIG
    Status Glow
    Bright Internal LED Status Lights
    Additional Feature
    Platinum Line Machine (Modular Design)
    Additional Feature
    Tool-Less Changeover
    Additional Feature
    Patented Technology
    Additional Feature
    Machine Integration
    Additional Feature
    Reject Bin Option
    Additional Feature
    Crash Detection
    Download PDF Close

    See it in action

    Delkor’s Performance Series Case Packer is a case and tray packer designed and engineered with key performance features in mind including pick-and-place gantry and an innovative infeed system to reach loading speeds up to 200 containers per minute. Optimized for packing tapered cups, bottles and a range of other container shapes and styles into a variety of retail ready packages, cases, trays, and other secondary packaging styles.

    Delkor can work with you to design the case, and they have the capability to provide you samples of the case with graphics on. It’s like having a material company and a packaging systems company in one building.

    Wilberto Torrez-Ortiz, Packbrain

    Free package samples in 48 hours!

    Our in-house CAD table and full-time packaging engineer enable us turn around printed case samples within 48 hours! These samples can be branded and tailored to meet the requirements of your marketing department and packaging engineers.
