VC Series Packer | Delkor Systems, Inc.

Continuous Motion Top Loading

Delkor’s linear-servo technology allows for efficient, continuous-motion top-loading of spouted pouches into cartons and cases.

Pack On-Edge or Lay-Flat

The VC Series Packer has maximum versatility with its ability to be configured to pack spouted pouches on-edge or lay-flat pack-out with just a simple tool-less changeover.

Pack in Any Infeed Orientation

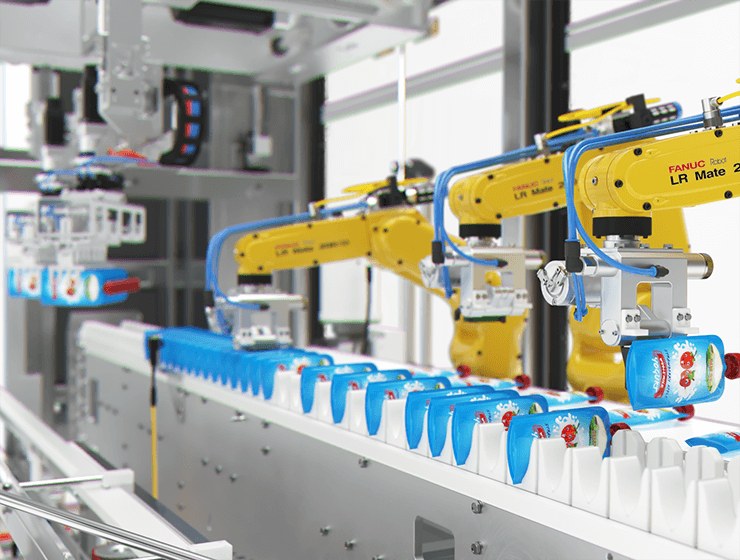

As a Level 5 FANUC Integrator, we’ve designed the VC Series Packer to be able to pack spouted pouches laying in different orientations on the infeed belt at efficient, high-speeds using FANUC iRVision technology.

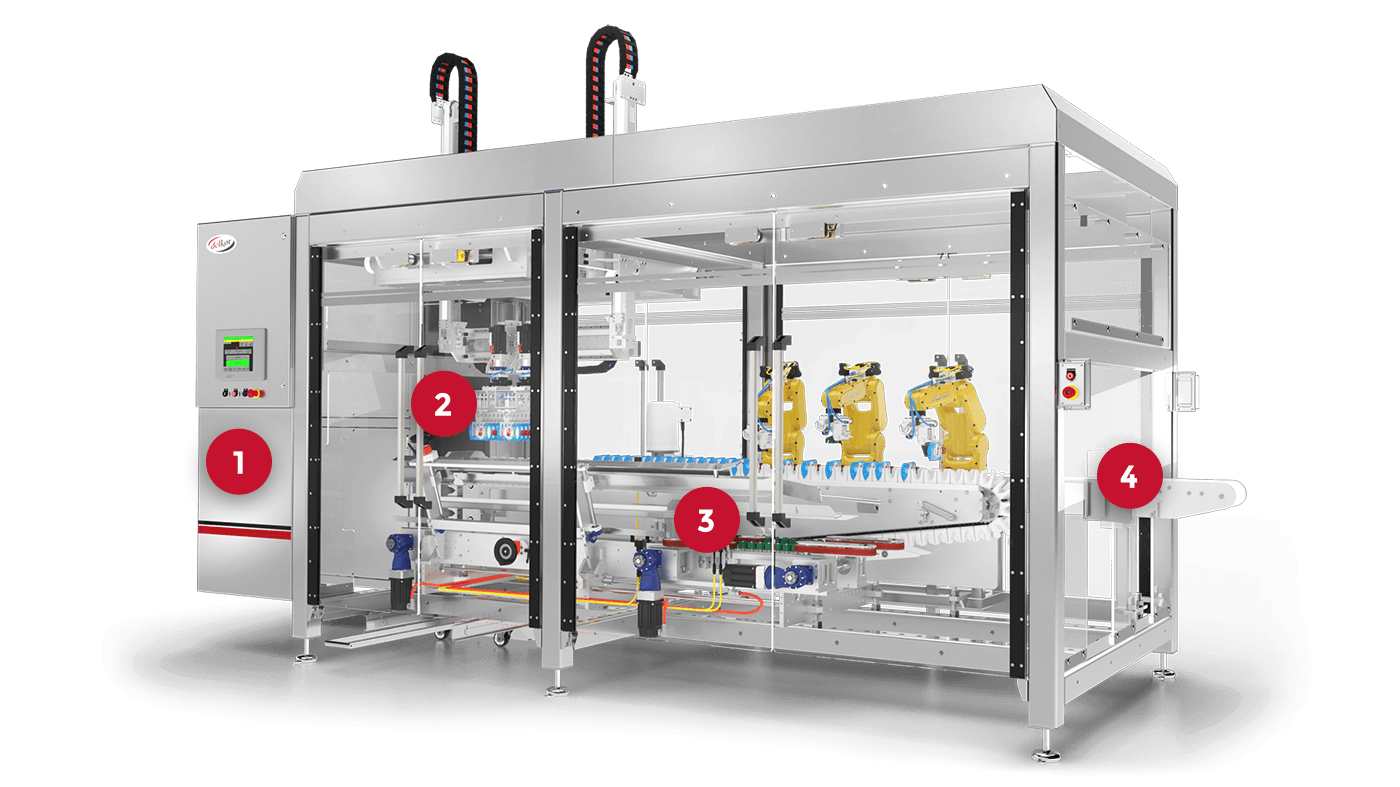

Key Features

High speed small pouch packer

1 High Speed

Up to 250 pouches per minute on this system

2 On Edge or Flat

Load product however you prefer

3 Multiple Package Formats

Load cartons, cases, and trays with this system

4 Any Orientation

Pack skewed products from any orientation with vision based technology

Specs

250 Primary Products

Max Speed Per Minute

Loading Options

Load on edge or flat

Package Types

Cases, Trays, and Cartons

View Full Specs

Changeover

5 mins

Package Styles

Cases, Trays, and Cartons

Max Product Rate

250 Products

Max Package Rate

30 Packages per minute

Discharge Orientation

Inline, Counterflow

Machine Hand

Right Hand, Left Hand

Frame Materials

Painted Carbon Steel, Stainless Steel

Robot Models

Fanuc LRMate

Servo-Motors

Allen-Bradley VPL or VPF (food grade)

System PLC

Allen-Bradley Compact Logix

System HMI

Allen-Bradley Panelview Plus 7 10"

Safety System

Category III

Enclosure - Main Panel

Painted (NEMA 4), Stainless Steel (NEMA 4X)

Enclosure - Panel Cooling

Vortex, Heat Exchanger, or Air-Conditioner

Enclosure - FANUC Cabinet

NEMA 1, optional Stainless Enclosure (NEMA 4X)

Enclosure - Camera

optional Stainless Steel (NEMA 4) with Air Blast

Model

Fanuc M10iA-10ms

Utilities - Power

480 VAC, 50-60Hz, 100 Amps

Utilities - Air

20 SCFM @ 80 PSIG

Status Glow

Bright Internal LED Status Lights

Additional Feature

Tool Less Changeover

Additional Feature

Reject Bin Option

Download PDF Close

See it in action

Delkor’s VC Series Packer is built for packing groups of pouches into cartons and cases at speeds up to 250 products per minute. Pack pouches on-edge or lay-flat pack-out with a simple tool-less changeover.
