    LSP Series

    Case Packer

    A Single Top Load Case Packer for ANY Shipper Style

    LSP_3-Cell

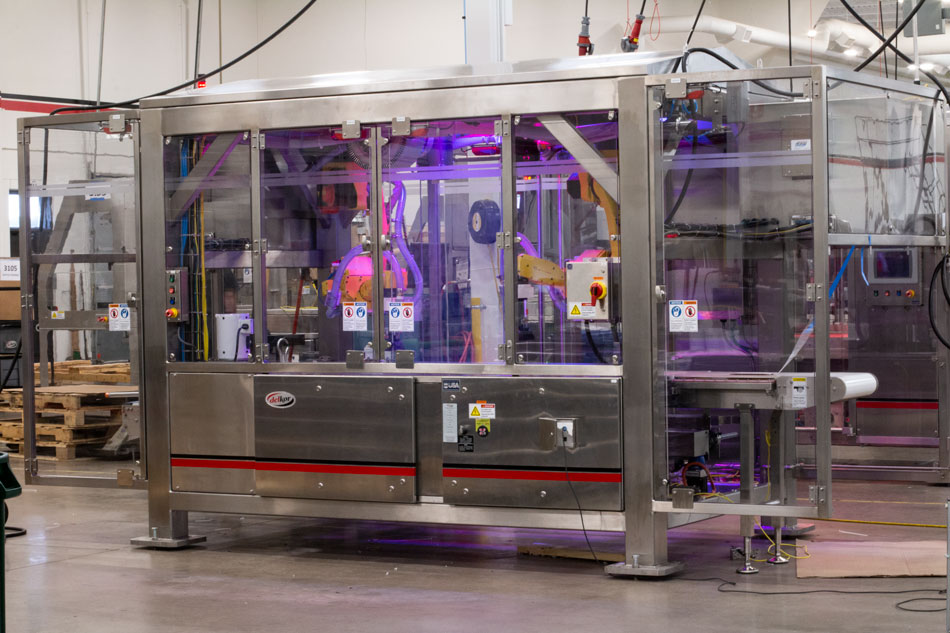

    Case Packer LSP Series

    load large bags

    The LSP Series Case Packer can pack pouches and large bags into deep cases at speeds up to 160 products per minute. This newly developed loader can place a variety of pouches into multiple types of cases seamlessly.

    Talk to us about your needs

    Key Features

    What makes the LSP Series Case Packer Delkor's most popular solution for bags and pouches?

    features-lsp
    1

    Modular Design

    Available in 1, 2, 3, 4, or 5 robot options to meet any speed requirement.
    2

    Simple Tool-Less Changeover

    Performs a full line changeover in 8 minutes or less.
    3

    Packs Heavy Pouches

    Large bags and pouches are no problem with the heavy duty central vacuum system
    4

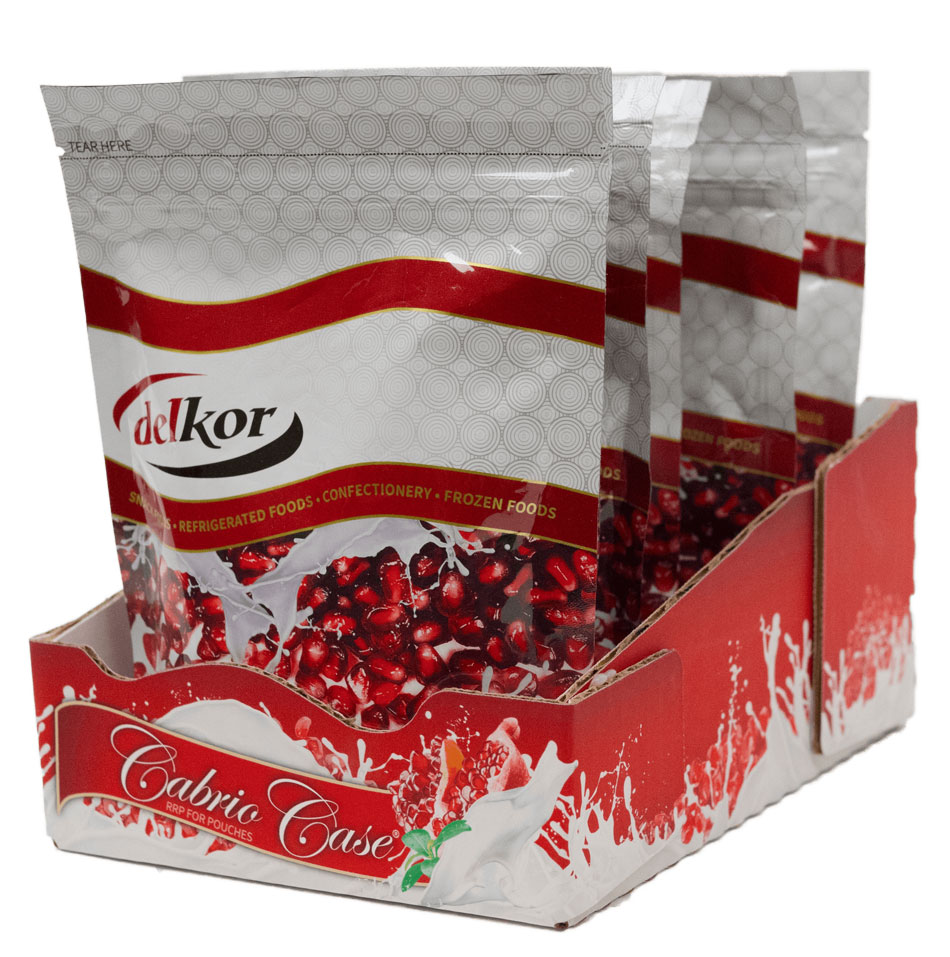

    Cabrio Case Compatible

    Delkor's Cabrio Case® is free to use with purchase of Delkor's case packing equipment.

    Specs

    6 Min

    Full Line Change Over

    20 lbs

    Max Weight Capacity

    160 Products

    Speed Per Minute

    Package Types

    Cases, Trays, and RRP
    View Full Specs
    Max Rate
    Up to 50 Packages per minute
    Discharge Orientation
    Inline, Counterflow
    Machine Hand
    Right Hand, Left Hand
    Frame Materials
    Painted Carbon Steel, Stainless Steel, Tubeless Stainless Steel
    Robot Models
    Fanuc M10iA-10ms
    System PLC
    Allen-Bradley Compact Logix
    System HMI
    Allen-Bradley Panelview Plus 7 10"
    Safety System
    Category III
    Enclosure - Main Panel
    Painted (NEMA 4), Stainless Steel (NEMA 4X)
    Enclosure - Panel Cooling
    Vortex, Heat Exchanger, or Air-Conditioner
    Enclosure - FANUC Cabinet
    NEMA 1, optional Stainless Enclosure (NEMA 4X)
    Enclosure - Camera
    optional Stainless Steel (NEMA 4) with Air Blast
    Length
    5ft, 2in (1,575 mm) per module *Configuration Dependent
    Width
    6ft, 2in (1,880 mm)
    Height
    9 ft, 1 in
    Utilities - Power
    480 VAC, 50-60Hz, 50 Amps
    Utilities - Air
    20 SCFM @ 80 PSIG
    Status Glow
    Bright Internal LED Status Lights
    Additional Feature
    Platinum Line Machine (Modular Design)
    Additional Feature
    Tool-Less Changeover
    Additional Feature
    Machine Integration
    Additional Feature
    Miss-pick Detection
    Additional Feature
    Reject Bin Option
    Additional Feature
    Crash Detection
    Download PDF Close

    See it in action

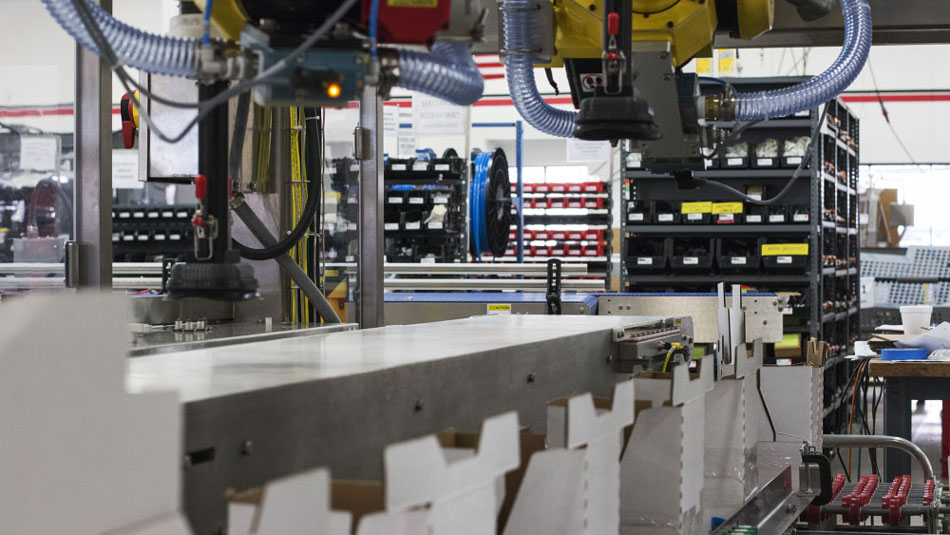

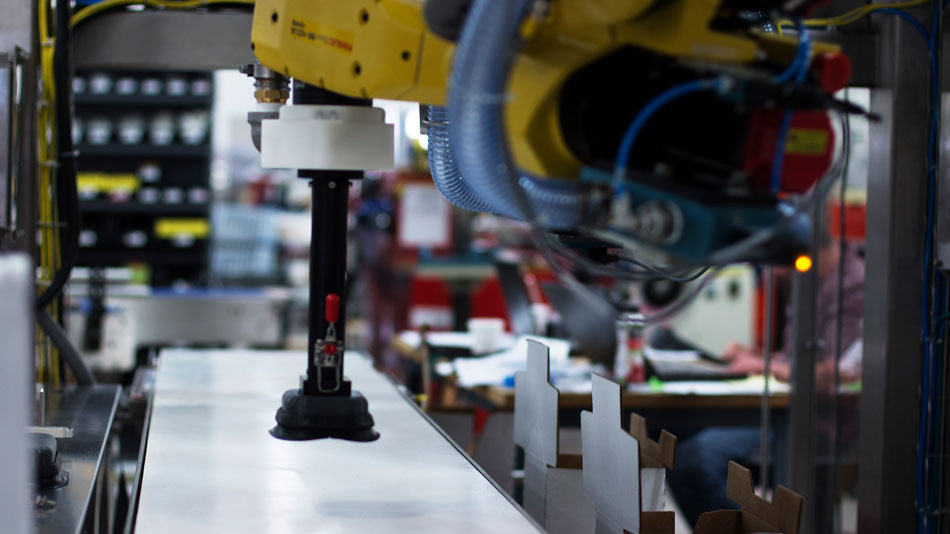

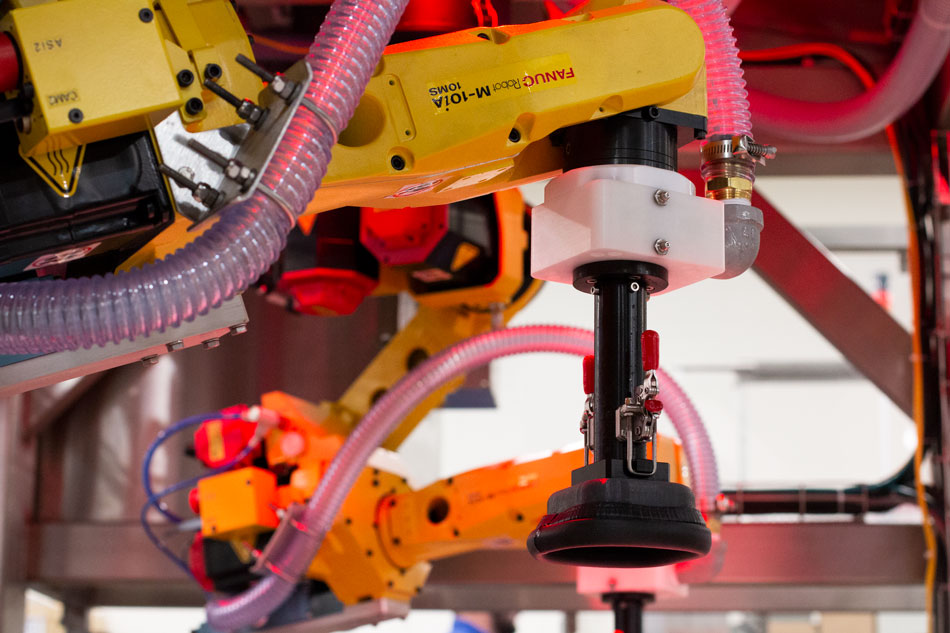

    Delkor’s LSP Series Case Packer runs pouches or bags (up to 20 lbs) at speeds up to 160 per minute with dual pick heads. Compatibility meets efficiency, as the Fanuc M10 robots work together to pick pouches in any orientation on the infeed conveyor.

    Delkor can work with you to design the case, and they have the capability to provide you samples of the case with graphics on. It’s like having a material company and a packaging systems company in one building.

    Wilberto Torrez-Ortiz, Packbrain

    Free package samples in 48 hours!

    Our in-house CAD table and full-time packaging engineer enable us turn around printed case samples within 48 hours! These samples can be branded and tailored to meet the requirements of your marketing department and packaging engineers.
