MSP Series

Case Packer

Higher payload and speed capabilities in case packing and retail ready packaging.

Case_Packer_700x570_1
AFFI-Con-MSP-Header-Mobile

EFFICIENT & ADAPTABLE

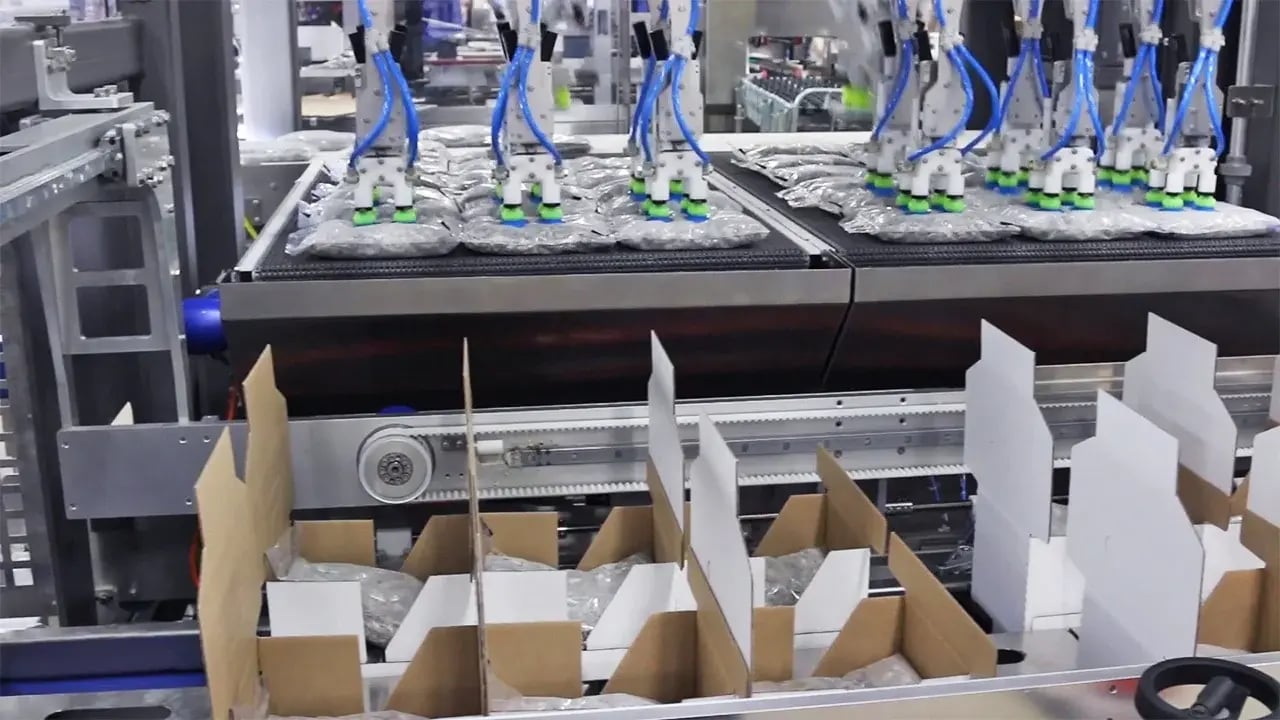

Vision guided infeed corrects for pouch misalignment while two axes H-bot gantry picks the pouches and loads into retail-ready packaging and other shippers.

MSP-m Social

High Speed, High Capacity

Packs pouches and bags up to 3 lbs, at speeds of up to 200 per minute and a maximum case output of 50 cases per minute.

182445 - MSP Series Case Packer - Schreiber - Dairy

TAILORED FOR YOUR PRODUCT

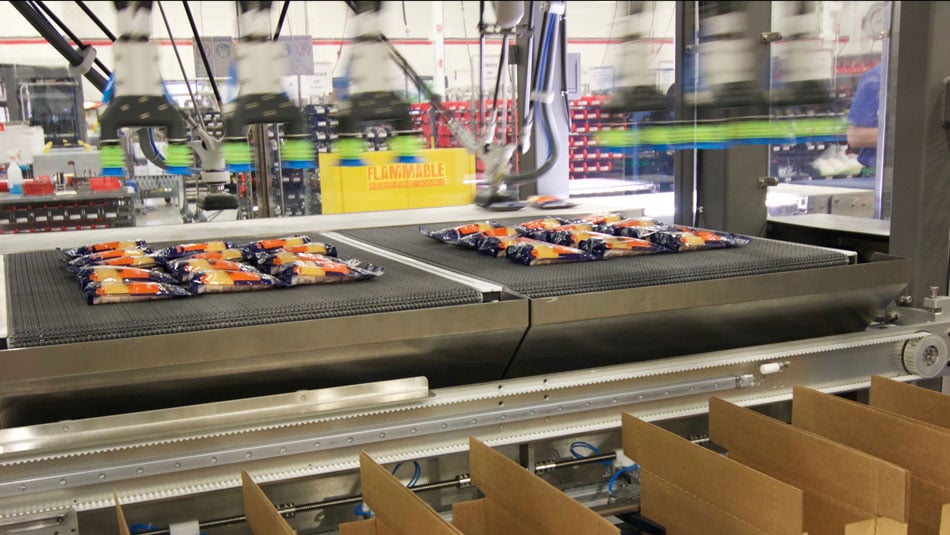

Bags and pouches can be packed to lay flat, shingled or even nested. The MSP Series Case Packer can be designed to suit your product.

Key Features

What makes the MSP Series Case Packer Delkor's most popular solution for high speed pouch packing?

MSP-Series-Case-Packer-Key-Features7
1

High Speed Pouch Packing

Speeds of up to 200 per minute with vision based adjustment for skewed products.
2

Simple Tool-Less Changeover

Performs a full line changeover in 8 minutes or less.
3

Cabrio Case Compatible

Delkor's Cabrio Case® is free to use with purchase of Delkor's case packing equipment.

Specs

Max Rate
50 Packages per minute
Discharge Orientation
Inline, Counterflow
Machine Hand
Right Hand, Left Hand
Frame Materials
Painted Carbon Steel, Stainless Steel
Robot Models

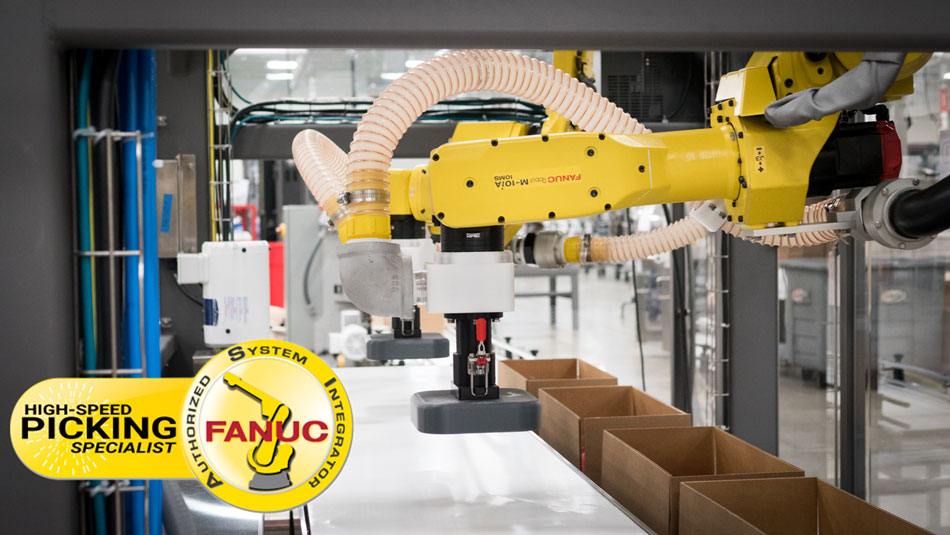

Fanuc M2iA
Servo-Motors
Allen-Bradley VPL or VPF (food grade)
System PLC
Allen-Bradley Compact Logix
System HMI
Allen-Bradley Panelview Plus 7 10"
Safety System
Category III
Enclosure - Main Panel
Painted (NEMA 4), Stainless Steel (NEMA 4X)
Enclosure - Panel Cooling
Vortex, Heat Exchanger, or Air-Conditioner
Enclosure - FANUC Cabinet
NEMA 1, optional Stainless Enclosure (NEMA 4X)
Enclosure - Camera
optional Stainless Steel (NEMA 4) with Air Blast
Length
16ft, 8in (5,080 mm) *Configuration Dependent
Width
10ft, 10in
Height
10ft, 10in (2,200 mm) - Rick will send over
Utilities - Power
20 SCFM @ 80 PSIG
Status Glow
Bright Internal LED Status Lights
Additional Feature
Tool-Less Changeover
Additional Feature
Reject Bin Option

See it in action

The MSP Series Case Packer packs pouches and bags up to 2 lbs. It can operate at speeds of up 200/minute. With the ever-changing retail environment, this loader offers flexibility for the future with the capability of placing a variety of different sizes pouches and bags into multiple case types and configurations.

Delkor can work with you to design the case, and they have the capability to provide you samples of the case with graphics on. It’s like having a material company and a packaging systems company in one building.

Wilberto Torrez-Ortiz, Packbrain

Free package samples in 48 hours!

Our in-house CAD table and full-time packaging engineer enable us turn around printed case samples within 48 hours! These samples can be branded and tailored to meet the requirements of your marketing department and packaging engineers.
