    L Series

    Lidder

    Places paperboard lids on trays

    162042 - Delkor Closer L-Series Dual-Head-1

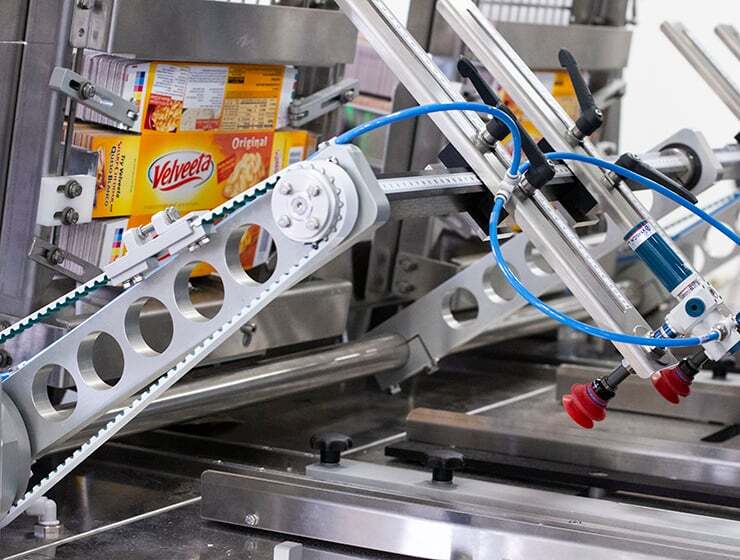

    L Series Lidder 33

    VERSATILE LIDDING DESIGNS

    The L Series Lidder offers many retail-ready packaging options to help maximize your brand’s impact on the retail shelf using graphic paperboard lid around a corrugated base.

    L-Series-Lidder-34

    HIGH SPEED, SMALL FOOTPRINT SYSTEM

    The L Series Lidder operates at production speeds of up to 110 units per minute (dual head) and occupies less than half the space required by competing units.

    Key Features

    PAPERBOARD LIDDING MADE EASY

    L-Series-Lidder-35
    1

    Compact Footprint

    This lidding machine is constructed to fit within tight floor plans.
    2

    Washdown Ready

    IP67-rated food grade makes it ideal for operation in a wet environment.
    3

    Retail Ready

    Offers many retail ready packaging options to help maximize your brand’s impact on the retail shelf using graphic paperboard lid around a corrugated base.

    Specs

    Package Types

    RRP & Paperboard Lids

    Max Rate

    110 per minute

    Compact Footprint

    11' x 4'
    View Full Specs
    Package Styles
    Paperboard Lids
    Max Rate (Product)
    Single Head = 55/min, Dual Head = 110/min
    Max Rate (Package)
    Single Head = 55/min, Dual Head = 110/min
    Discharge Orientation
    Right Hand, Left Hand, Inline (requires 90 degree discharge transfer)
    Machine Hand
    Right Hand, Left Hand
    Frame Materials
    Stainless Steel
    Servo-Motors
    Allen-Bradley VPL or VPF (Food Grade)
    System PLC
    Allen-Bradley Compact Logix
    System HMI
    Allen-Bradley Panelview Plus 7 10"
    Safety System
    Category III
    Enclosure - Main Panel
    Painted (NEMA 4), Stainless Steel (NEMA 4X)
    Enclosure - Panel Cooling
    Vortex, Heat Exchanger, or Air-Conditioner
    Adhesive System
    Nordson, Graco, Robatech
    Length
    11ft 6.5in
    Width
    4ft 6in
    Height
    6ft 6in
    Utilities - Power
    480 VAC, 50-60Hz, 30 Amps
    Utilities - Air
    15 SCFM @ 80 PSIG
    Status Glow
    Bright Internal LED Status Lights
    Download PDF Close

    See it in action

    The L Series Lidder is optimized to efficiently apply paperboard lids to a base tray such as processed cheese packaging. At speeds up to 100 units per minute, it’s a compact and economical lidding solution. Quick-change tooling and an optional washdown feature are perfect for the dairy industry.

    A key feature that helped make our decision of going with Delkor was the nice compact design of the closers. In a lot of production facilities, real estate and floor space is key. One thing we have come to take pride in is the efficiencies of the machines and the limited amount downtime. Also the service from Delkor has been phenomenal and has really helped us out over time.

    -Paul Prazak, Blue Bell Creameries
